Hopper Scale Bellow Type Weighing Sensor

Product Introduction:

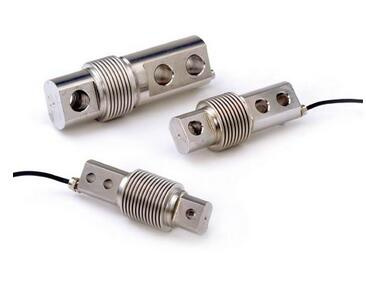

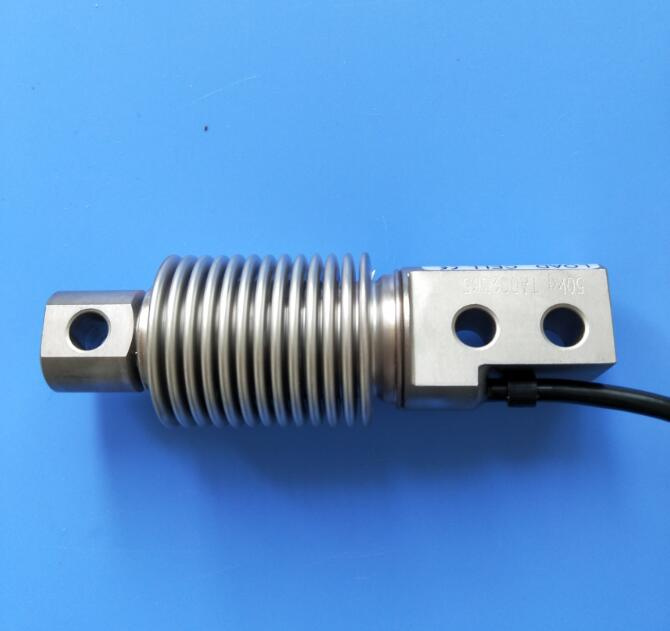

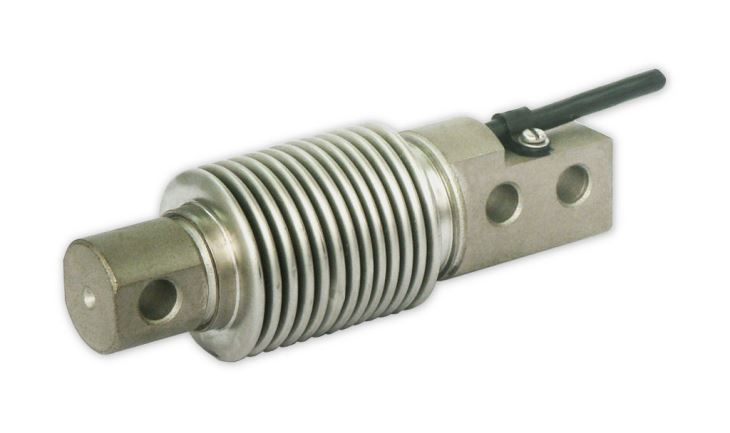

QH-23 load cells are available in the capacities from 5kg to 500kg. Alloy steel & stainless steel construction construction with single shear beam type. Sealed welding ,waterproof, anti-corrosion and suitable for all kinds of environment. Integral structure and easy installation. Suitable for electronic platform scale, hopper scales and other electronic weighing devices.

Features:

Capacity :5kg to 500kg
Defend grade: IP67 & IP68
High accuracy.
Alloy steel & stainless steel single shear beam Low profile and nice exterior

Specifications:
capacity	kg	10,30,50,100,200,250,500,
safe overload	%FS	150
ultimate overload	%FS	200
rated output	mV/V	2.0 ± 0.003
excitation voltage	Vdc	9 ~ 12
combined error	%FS	± 0.02
zero unbalance	%FS	± 2
non-linearity	%FS	± 0.02
hysteresis	%FS	± 0.02
repeatability	%FS	± 0.01
creep	%FS/30min	± 0.02
input resistance	Ω	350 ± 5
output resistance	Ω	350 ± 3
insulation resistance	M Ω	≥ 5000 @ 50 Vdc
operating temperature range	ºC	-20 ~ +55
compensated temperature range	ºC	-10 ~ +40
temperature coefficient of SPAN	%FS/10ºC	± 0.01
temperature coefficient of ZERO	%FS/10ºC	± 0.02

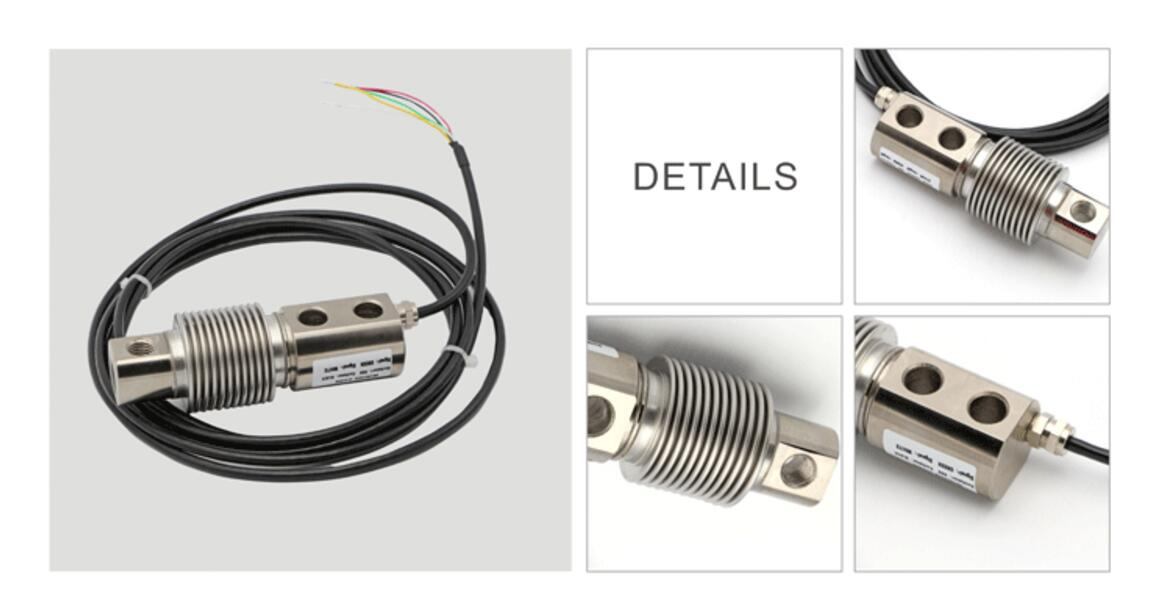

Electrical connection:

Excitation+ red Excitation- black Signal+ green Signal- white
Four-core shielded cable with polyethylene. Cable is not connected with elastomer.
Cable length:3m
Cable diameter : 5±0.2 mm
The cable length could be chose by customer's application.

Prod Model:	QH-23
Capacity:	5kg to 500kg
Accuracy:	0.03%Fs
Rated Output:	2.0 ± 0.004 Mv/V
Recommended Excitation:	5~12VDC

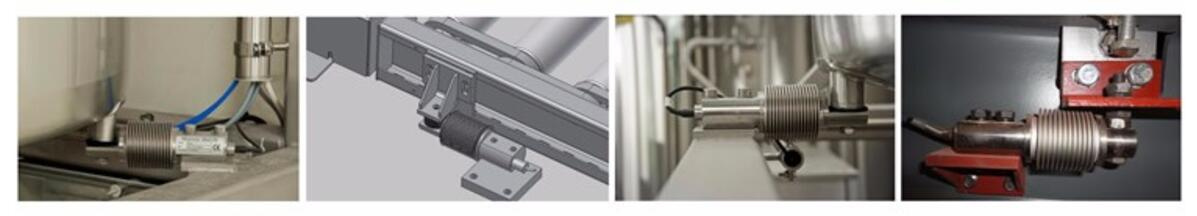

Application:	Electronic Platform Scale, Hopper Scales and Othe
Pattern:	Single Shear Beam Load Cell
Out-Wire:	4 Wires
Material:	Alloy Steel & Stainless Steel
IP Rating:	IP67 & IP68
