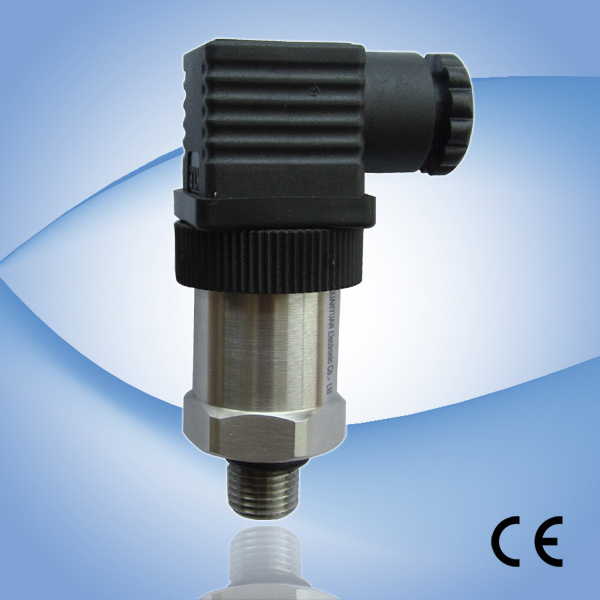

Ceramic Core Pressure Sensor
| Price: |
US $ 25/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
100/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
Model:QP-83C pressure sensor
Range: 0~0.5MPa, 0~0.6MPa, 0~1MPa, 0~1.6MPa, 0~2MPa, 0~2.5MPa, 0~3MPa, 0~4MPa, 0~5MPa, 0~10MPa, 0~16MPa, 0~20MPa
Feature:
It has a strong corrosion resistance
Good stability
Integral structure, easy installation
Be suitable for a wide range of using
The range of medium temperature: -20ºC~100ºC
The range of high temperature: -30ºC~150ºC(Customized)
Adopting high precision components, it's will to work in the harsh environment.

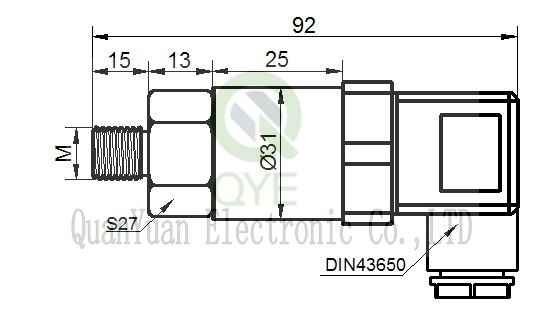

Dimensions: (unit: mm)
Technical Specifications:
Measuring media | Gases or liquids which are compatible to 316L stainless steel |
Measuring range | 0~0.5MPa, 0~0.6MPa, 0~1MPa, 0~1.6MPa, 0~2MPa, 0~2.5MPa, 0~3MPa, 0~4MPa, 0~5MPa, 0~10MPa, 0~16MPa, 0~20MPa |
Pressure type | Gage pressure |
Signal output | transmitter, mA (2 wires) | 4~20mA |
transmitter, Vdc (3 wires) | 0~5V, 0~10V,1~5V, 0~20mA |
Combined accuracy | %FS | ±0.5(Standard), ±1(Max) |
Long stability | ≤±0.2%FS/year |
Power supply | Vdc | 12~36(Standard 24Vdc) |
Compensated temp. | ºC | -10~+60 |
Operating temp. | ºC | -20~100 |
Temperature coefficient of ZERO | %FS/10ºC | ≤±0.3 |
Temperature coefficient of SPAN | %FS/10ºC | ≤±0.3 |
Insulation resistance | MΩ | >500 @ 100Vdc |
Electrical connection | DIN43650 |
Material | Stainless steel |
Pressure connection | G 1/4,ZG1/4, M20×1.5, M14×1.5(Customized) |
Environment protection | IP | 65 |
Safe overload | %FS | 150 |
Ultimate overload | %FS | 200 |

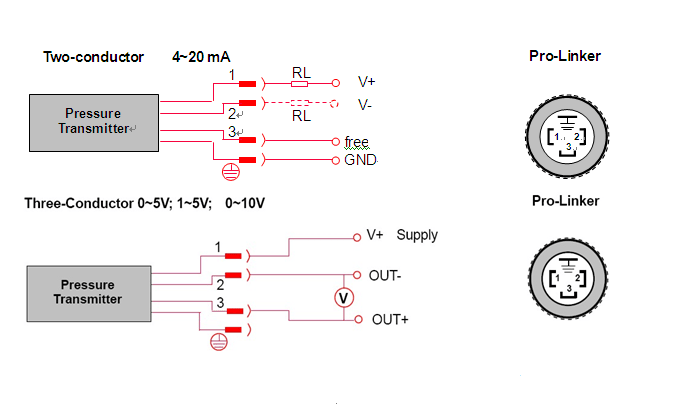

Electrical connection:
Packaging & Shipping
All products can be shipped by International Express including EMS,UPS,FedEx,DHL and TNTas you required. By plane or by ship is available, too. The detailed can be discussed with our sales.We will choose the safe and cheapest way for you to reduce your cost.
All products will be well packed in hard paper box properly and security. Packing list will be enclosed inside the box. Please take care of this when you unpack the package.
Our Services
1. OEM/ODM Services:
Our company provides OEM/ODM services and Customized products services.
With know-how technique and mass production capability, we are able to provide the specified sensing solution according to customer's application.
What's your requirement?
2. Quality Quarantee
We quarantee product quality for one-year starting from the date of delivery.
Company Information
Marketing under Our Brand "QYE"
Hanzhong Quan Yuan Electronic Co. Ltd is a professional high-tech enterprise that is committed to the research, development, design, manufacture and sale of load cells, high precision resistance strain gauges and pressure transmitters under the QuanYuan brand. They can be applied in the traditional force measurement field and are also widely used in the industrial automation production lines and metallurgical industry.
Meeting CE, RoHS and EX Requirements
As an ISO 9001:2008-certified company,all our electronic products have good performance and high quality because all products must be tested several times and they must undergo strict inspections before being dispatched from the factory. As a result, our load cells have passed CE and RoHS requirements and pressure transmitters have passed CE and EX standards.
Service Concept: Customer Satisfaction is Our Everlasting Pursuit
With several years' experience in manufacturing and selling load cells, strain gauges and pressure transmitters, we always adhere to our service concept of "customer satisfaction is our everlasting pursuit" and have built a professional team in sensor field to provide customers with first-class products, first-class services, first-class reputation and first-class principles.
Exporting to over 30 Countries Worldwide
With high quality and good service, our products have been exported to over 30 countries, which include the US as well as those in Europe, Southeast Asia, the Middle East and South America.
