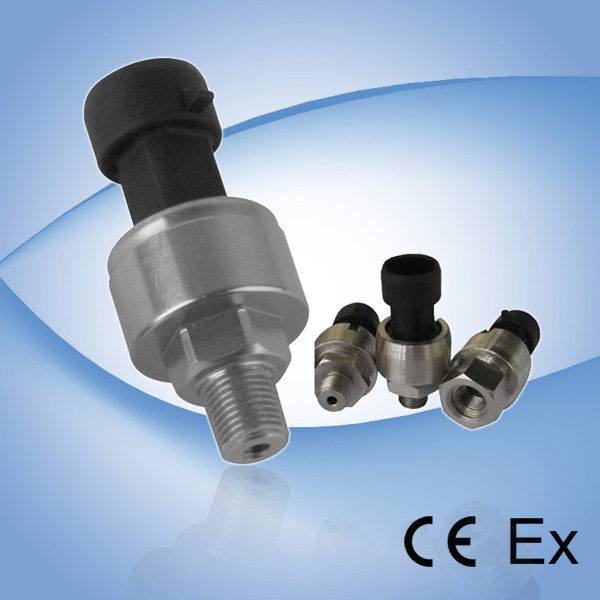

Model: QP-88 Piezoresistive pressure sensor
Range:0~3000 PSI
Measure media: non-corrosive and non-conductive gas or dilute liquid
Feature:
Piezoresistive technology
High accuracy, good stability
Small size, nice appearance
Anti-shock
Various output scheme: 0.5~2.8 Vdc, 0.5~4.5 Vdc,0.5~5/10 Vdc
Technical Specifications:
| Measuring media | non-corrosive and non-conductive gases or dilute liquids |
| Measuring ranges | PSI | 0~3000 |
| Pressure type | NA | Gauge (G) |
| Excitation voltage | Vdc | 3 | 5 (standard) | 9,…,30 |
| Output signal | Vdc | 0.5~2.8 | 0.5~4.5(standard) | 0~5,or 0~10 |
| Accuracy | %FS | ±0.5 |
| Response time | ms | 10 mSec at 63% full Scale |
| Shock | 75G, 1/2 sina wave |
| Insulation resistance | MΩ | >500 @ 100 Vdc |
| Operating temp. | ºC | -40~+125, OR-40~+145 |
| Storage temp. | ºC | -40~+125 |
| Pressure connection | 1/8NPT (standard), NPT1/4, 3/8 UNF, M12×1.5(Can be chosen by the customer) |
| Electrical connection | connector | 3-pin connector (Packard 12065287) |
| Environment protection | IP rating | IP 65 |
| Material (wetted parts) | 316L SS |
| Overload pressure | %FS | 200 |
Packaging & Shipping
All products can be shipped by International Express including EMS,UPS,FedEx,DHL and TNTas you required. By plane or by ship is available, too. The detailed can be discussed with our sales.We will choose the safe and cheapest way for you to reduce your cost.
Packaging & Shipping
All products can be shipped by International Express including EMS,UPS,FedEx,DHL and TNTas you required. By plane or by ship is available, too. The detailed can be discussed with our sales.We will choose the safe and cheapest way for you to reduce your cost.
All products will be well packed in hard paper box properly and security. Packing list will be enclosed inside the box. Please take care of this when you unpack the package.
Our Services
1. OEM/ODM Services:
Our company provides OEM/ODM services and Customized products services.
With know-how technique and mass production capability, we are able to provide the specified sensing solution according to customer's application.
What's your requirement?
2. Quality Quarantee
We quarantee product quality for one-year starting from the date of delivery.
Company Information
Marketing under Our Brand "QYE"
Hanzhong Quan Yuan Electronic Co. Ltd is a professional high-tech enterprise that is committed to the research, development, design, manufacture and sale of load cells, high precision resistance strain gauges and pressure transmitters under the QuanYuan brand. They can be applied in the traditional force measurement field and are also widely used in the industrial automation production lines and metallurgical industry.
Meeting CE, RoHS and EX Requirements
As an ISO 9001:2008-certified company,all our electronic products have good performance and high quality because all products must be tested several times and they must undergo strict inspections before being dispatched from the factory. As a result, our load cells have passed CE and RoHS requirements and pressure transmitters have passed CE and EX standards.
Service Concept: Customer Satisfaction is Our Everlasting Pursuit
With several years' experience in manufacturing and selling load cells, strain gauges and pressure transmitters, we always adhere to our service concept of "customer satisfaction is our everlasting pursuit" and have built a professional team in sensor field to provide customers with first-class products, first-class services, first-class reputation and first-class principles.
Exporting to over 30 Countries Worldwide
With high quality and good service, our products have been exported to over 30 countries, which include the US as well as those in Europe, Southeast Asia, the Middle East and South America.
Han Zhong Quan Yuan Electronic Co., Ltd. is a professional high-tech enterprises committed to the research, development, design and manufacture and sale of load cell, high precision resistance strain gauge, sensor, fittings for electronic weighing apparatus and automatic control system with QuanYuan brand.
QuanYuan are certified according to ISO 9001: 2000 and produce strictly in accordance withR60 recommendation of international Organization of Legal Metrology (OIML).
All electronic products are with good performance and high-level quality, which are widely used in electronic weighing apparatus, metallurgy, construction machinery, chemical and other industries. The products are not only sold very well in domestic, but also welcomed in Europe, America, Southeast Asia and other main countries in abroad. QuanYuan win high praise and good reputation from users in domestic and abroad. The production and sales are growing up year by year in successively.
In order to better satisfy the demand of international market, QuanYuan is going to expand production scale and invest in the construction of new production base, with an area of nearly 15, 000 square meters, which is expected to be fully put into production in 2012.
Sincerely welcome the cooperation and guidance from new and old customers in worldwide.
