High Precision Weighing Scale Load Cell 0.5t 1t 2t 3t 5t for Floor Scale
| Price: |
US $ 28-68/Piece |
| Min Order: |
4/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal |
| Prod Model: |
QH-22 Load Cell |
| Capacity: |
0.5t 1t 2t 3t 5t |
| Accuracy: |
0.03%Fs |
| Signal Output: |
3.0mv/V |
| Power Supply: |
9 ~ 12VDC |
| Application: |
Weighing Scale,Floor Scale |
| Pattern: |
Single Shear Beam Load Cell |
| Material: |
Alloy Steel |
| IP Rating: |
IP66 |
Product Description

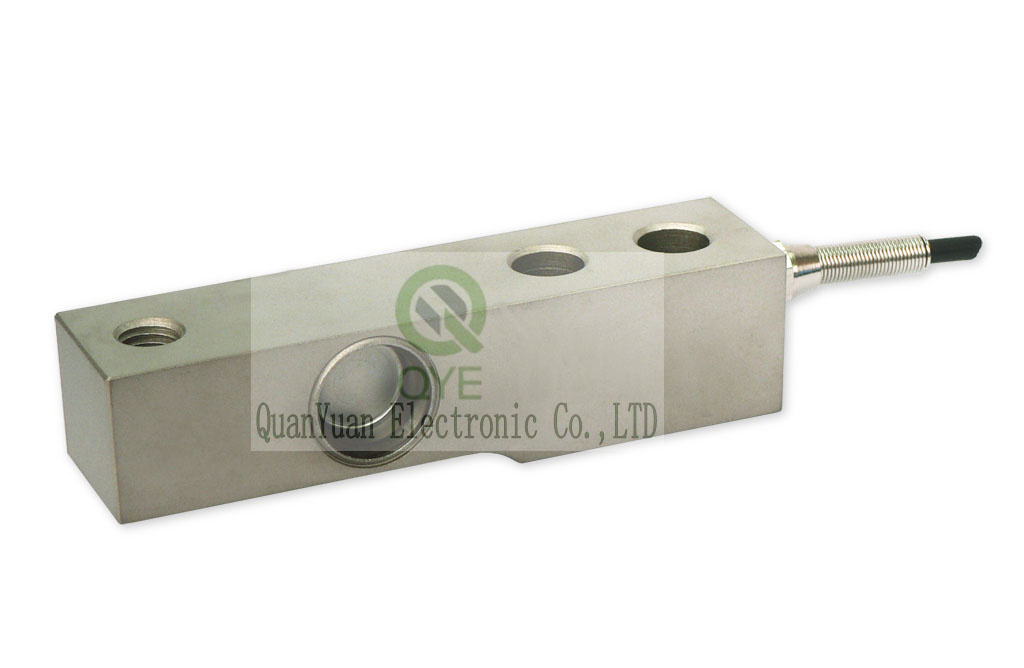

Product Introduction:QH-22 load cells are available in the capacities from 0.5t to 5t.
Alloy steel & stainless steel construction with single shear beam type.
Sealed welding ,waterproof, anti-corrosion and suitable for all kinds of environment.
Integral structure and easy installation.
Suitable for electronic platform scales, truck scale, floor scale ,hopper scale and other electronic weighing devices.
Features:Capacity :0.5t to 5t
Defend grade: IP67 & IP68
High accuracy.
Alloy steel & stainless steel single shear beam

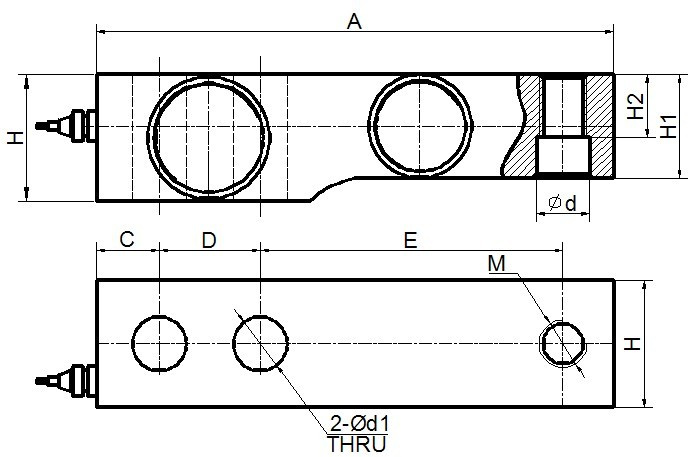

Low profile and nice exteriorElectrical connection and Dimensions: (dimension unit: mm)
Technical Specifications: | Specifications: |
| Capacity | t | 0.5,1,2,5 |
| Safe overload | %FS | 150 |
| Ultimate overload | %FS | 200 |
| Rated output | mV/V | 3.0 ± 0.003 |
| Excitation voltage | Vdc | 9 ~ 12 |
| Combined error | %FS | ± 0.03 | ±0.02 |
| Zero unbalance | %FS | ± 1 |
| Non-linearity | %FS | ± 0.03 | ± 0.02 |
| Hysteresis | %FS | ± 0.03 | ± 0.02 |
| Repeatability | %FS | ± 0.02 | ± 0.01 |
| Creep | %FS/30min | ± 0.03 | ± 0.02 |
| Input resistance | Ω | 350 ± 5 |
| Output resistance | Ω | 350 ± 3 |
| Insulation resistance | M Ω | ≥ 5000 @ 50 Vdc |
| Operating temperature range | ºC | -20 ~ +55 |
| Compensated temperature range | ºC | -10 ~ +40 |
| Temperature coefficient of SPAN | %FS/10ºC | ± 0.025 | ± 0.017 |
| Temperature coefficient of ZERO | %FS/10ºC | ± 0.03 | ± 0.03 |
Electrical connection:Excitation+ red Excitation- black Signal+ green Signal- white
Four-core shielded cable with polyethylene.
Cable diameter :¢5mm
Cable length:3 m The cable length could be chose by customer's application. Packaging & Shipping:
All products can be shipped by International Express including EMS,UPS,FedEx,DHL and TNT as you required. By plane or by ship is available, too. The detailed can be discussed with our sales.We will choose the safe and cheapest way for you to reduce your cost.
All products will be well packed in hard paper box properly and security. Packing list will be enclosed inside the box. Please take care of this when you unpack the package.
Our Services:
1. OEM/ODM Services:Our company provides OEM/ODM service and Customized products service.
With know-how technique and mass production capability, we are able to provide the specified sensing solution according to customer's application. 2. Quality QuaranteeWe quarantee product quality for one-year starting from the date of delivery.
Han Zhong Quan Yuan Electronic Co., Ltd. is a professional high-tech enterprises committed to the research, development, design and manufacture and sale of load cell, high precision resistance strain gauge, sensor, fittings for electronic weighing apparatus and automatic control system with QuanYuan brand.
QuanYuan are certified according to ISO 9001: 2000 and produce strictly in accordance withR60 recommendation of international Organization of Legal Metrology (OIML).
All electronic products are with good performance and high-level quality, which are widely used in electronic weighing apparatus, metallurgy, construction machinery, chemical and other industries. The products are not only sold very well in domestic, but also welcomed in Europe, America, Southeast Asia and other main countries in abroad. QuanYuan win high praise and good reputation from users in domestic and abroad. The production and sales are growing up year by year in successively.
In order to better satisfy the demand of international market, QuanYuan is going to expand production scale and invest in the construction of new production base, with an area of nearly 15, 000 square meters, which is expected to be fully put into production in 2012.
Sincerely welcome the cooperation and guidance from new and old customers in worldwide.
