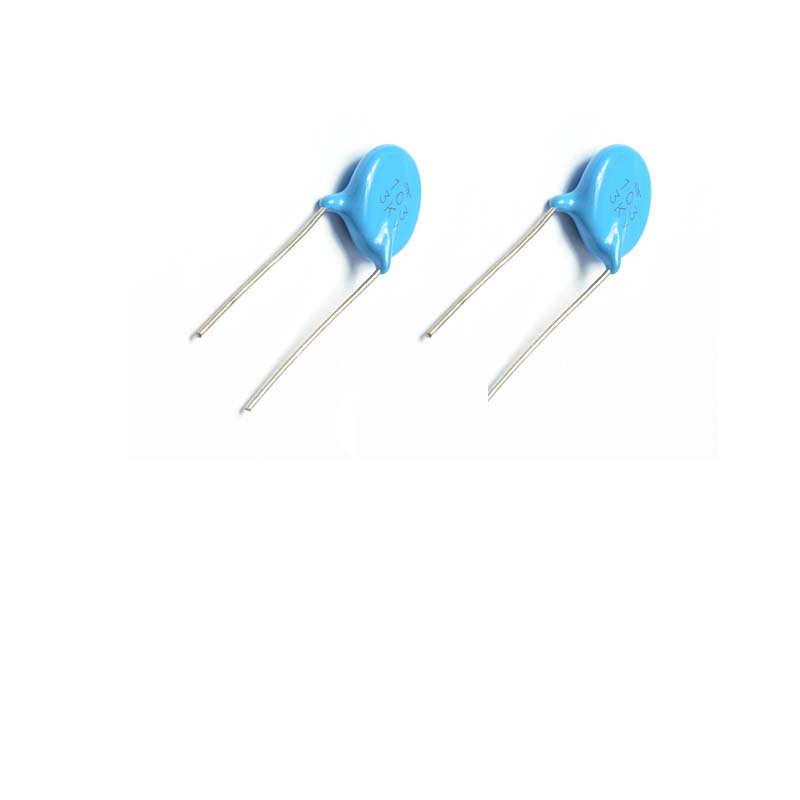

5kv 122j High Voltage Caremic Cdisc Capacitor >500V
| Price: |
US $ 0.01-10/Piece |
| Min Order: |
1000/Piece |
| Pay Type: |
T/T |
High voltage ceramic disc capacitor
Key Specifications/Special Features:
Operating temperature range: -25 to +85 celium degree.
Working voltage: DC 1, 2, 3, 6.3, 10 and 15kV
Withstanding voltage: 1.5 times of working voltage 1kV <=UR <=10kVUT = 1.5UR+500V, UR <=10kV, UT = 1.5UR
Capacitance: Measured at 20 +-2celium degree, with 5Vrms maximumClass I 1+-0.2MHz and class II 1+-0.2kHz
Capacitance tolerance: J: +-5%, K: +-10%, M: +-20% and Z: +80%-20%
Dissipation factor (DF): Same condition as the capacitanceSL tgd <= 0.15%N3300 tgd <= 0.4%Y5P tgd <= 2.5%Z5U tgd <= 2.5%Z5V tgd <= 2.5%Bn tgd <= 0.5%Y5R tgd <= 0.35%
Insulation resistance (IR): With rated voltage 500V test 60 +-5secondsIR >= 10, 000MQ
Temperature characteristic: SLN3300, Y5P, Z5U, Z5V and Y5R
Product Certifications:
Certificate Standard: SGS, Certificate Number: GZSCR041248032/LP. Issue Date: 24-Dec-2004, Certification Agent: SGS -CSTC LTD
Certificate Standard: RoHS, Certificate Number: CQC06130017473, Issue Date: 08-Sep-2006 Expiry Date: 07-Sep-2007 Certification Agent: China Quality Certification Centre
| Shenzhen Topmay Electronic Co. Ltd. |
| We are a professional manufacturer of capacitor. We deal globally since established in 1998 based on most competitive price and excellent service. Through many year's work, Topmay has gradually grown up to be an outstanding enterprises in the field of capacitors. It will be a big pleasure that we can cooperate with you. |
| TMCC02-221K500VP5B: 220PF 500V Y5P 10% P=5MM | CA3159320 | 5,000 | US$0.0048 |
| TMCC02-221M2KVP5B: 220PF 2KV Y5P 10% P=5MM | CA3159325 | 10,000 | US$0.0098 |
| TMCC02-561M500VP5B: 560PF 500V Y5P 10% P=5MM | CA3159390 | 20,000 | US$0.0048 |
| TMCC02-182M500VP5B: 1.8NF 500V Y5E 10% P=5MM | CA3159490 | 20,000 | US$0.0042 |
| TMCC02-222M500VP7.5B: 2.2NF 500V Z5P P=7.5MM | CA3159510 | 30,000 | US$0.0055 |
| TMCC02-222M3KVP7.5B: 2.2NF 3KV Y5U 20% P=7.5MM | CA3159539 | 10,000 | US$0.0176 |
| Prod Model: |
TMCC 02 |
| Voltage: |
DC 1, 2, 3, 6.3, 10 and 15kv |
| Lead Time: |
12days |
| Material: |
Y5p |
| Type: |
Multi-Layer Ceramic Capacitor |
| Application: |
General Purpose |
| Package Type: |
Through Hole |
| Capacitance: |
1PF-10NF |
| Electrolyte: |
Ceramic Disc Capacitor |
| Filter: |
Ceramic Disc Capacitor |
