0.6/1kv Nassa, ABC Electrical Power Conductor Cable, Aerial Bundle Cable XLPE Insulation XLPE Cable Overhead Service Drop Cable
1: Application Primarily used for overhead service applications such as street lighting, outdoor lighting, and temporary service for construction. To be used at votages of 600V phase-to-phase or less and at conductor temperatures not to exceed 75ºC for polyethylene insulated conductors or 90ºC for crossliked polyethylene(XLPE) insulated conductors.
2:StandardsService drop cable meets or exceeds the following specifications:
l ASTM B-230 Aluminum Wire ,1350-H19 for Electrical Purposes.
l ASTM B-231 Aluminum Conductors, Concentric-Lay-Stranded.
l ASTM B-232 Aluminum Conductor, Concentric-Lay-Stranded, Coated Steel Reinforced(ACSR)
l ASTM B-399 Concentric-Lay-Stranded 6201-T81 Conductors
l ASTM B-901 Compressed Round Stranded Aluminum Conductors Using Single Input Wire..
Service drop cable meets or exceeds all applicable requirements of ANSI/ICEA S-76-474.
Codeword: Pekingese,Collie,Dachshund,Spaniel,Doberman,Malemute,Setter,Shepherd,Eskimo,Terrier,Chow,Bull,Chihuahua,Vizsla,Harrier,Whippet,Schnauzer,Heeler.Haiotis,Patella,Fusus,Oyster,Clam,Murex,Purpura,Nassa,Melita,Portunus,Nannynose,Paludina,Voluta,Whelk,Periwinkle,Conch,Neritina,Cenia,Runcina,Triton,Cherrystone,Mursia,Razor,ZuzaraLimpet,ScallopStrombus,Cockle,Janthia,RanellaCavolinia,Clio,Sanddollar,Aega,Cuttlefish,Cerapus,Cowry,Minex,Hippa,Prawn,Bamacle,Shrimp,Gammarus,Leda,Dungenese,Cyclops,Flustra,Lepas,Artemia,Crab,Solaster,Sandcrab,Echinus,Crayfish,Sipho,Fulgar,Arca.Clydesdate,Pinto,Mustang,Criollo,Percheron,Hanoverian,Oldenburg,Morochuca,Chola,Morgan,Hackney,Palomino,Costena,Grullo,Suffolk,Appaloosa,Bronco,Bay,FrenchCoach,GermanCoach,Arabian,Belgian,Shetland,Thoroughbred,Trotter,Lippizaner,gelding,Walking.
3.Product Description:
The data sheet showed below is a part of ABC Cable (Triplex Service Drop) .
Code word | AWG or kcmil | Bare Neutral Messenger | Phase Conductor | Weight kg/km | Allowable Ampacities(A) |
AAC | Rated Strength lbs. | AAC | Insul. Thick. mm | XLPE | PE |
No. | Dia. mm | No. | Dia. mm |
Haiotis Patella Fusus Oyster Clam Murex Purpura Nassa Melita Portunus Nannynose | 2*6AWG+1*6AWG 2*6AWG+1*6AWG 2*4AWG+1*4AWG 2*4AWG+1*4AWG 2*2AWG+1*2AWG 2*1/0AWG+1*1/0AWG 2*1/0AWG+1*1/0AWG 2*2/0AWG+1*2/0AWG 2*3/0AWG+1*3/0AWG 2*4/0AWG+1*4/0AWG 2*336.4+1*336.4 | 7 7 7 7 7 7 7 7 19 19 19 | 1.56 1.56 1.96 1.96 2.47 3.12 3.12 3.50 2.39 3.25 3.38 | 563 563 881 881 1350 1990 1990 2510 3310 4020 6146 | 1 7 1 7 7 7 19 7 19 19 19 | 4.11 1.56 5.19 1.96 2.47 3.12 1.89 3.50 2.39 3.25 3.38 | 1.14 1.14 1.14 1.14 1.14 1.52 1.52 1.52 1.52 1.52 2.03 | 146 150 219 224 338 544 545 671 830 1476 1649 | 85 85 115 115 150 205 205 235 275 315 420 | 70 70 90 90 120 160 160 185 215 245 325 |
COMPANY PROFILEChongqing RonJu Co.,LTD which was established with registered capital of 100,000,000 RMB in 2016 Sited in Xi YOng, an industrialized area in shapingpa,.
Chongqing ron ju co.,ltd integrates innovation, generation and sale of cables on a highly efficient production line. Our product is currently widely embraced in multiple areas ranging from electricity to transportation and even urban modernization, proving its versatility and sustainability.
We specializes in manufacturing all kinds of cables with different voltage power cables, control cables, building wires, aluminum alloy cables, aerial cable and other special cables.
We exported all kinds of cables and wires to America,Europe,Australia,Africa,Asia,and so on.Our company got the certificate for ISO 9001 quality system certificate;ISO14001 environmental management system certificate. All the products produce according to,IEC , GB standard.Besides,We also manufacture products according to customer's requirement.
Our team, young and industrious, is dedicated in advancing product itself and the production technique as well, maintaining the established user base, enlarging it through constantly providing high quality products and impeccable service, which are also the sound ground for our branding in this intensely competing international.
With highly specialized products and constantly generated power, our company, R. J. Cable, establishes its "three-in-one" branding (the brand of entrepreneurs, of enterprises, and of products) and pursues a long-term proceeding. Our marketing is distinct for its market-oriented strategies and immediate responses to volatility. Such qualities significantly fuel a dynamically proceeding company. Our Factory:
Our Certification:

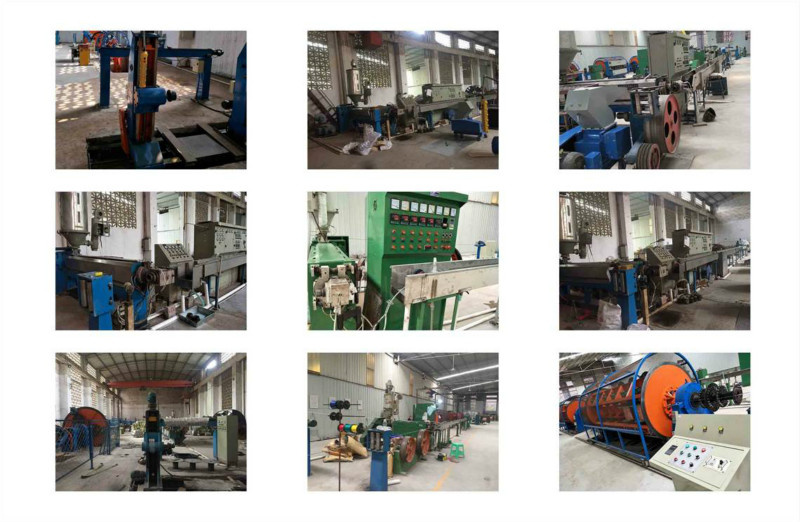

Our Advance Equipment:
Our Production Process:
Our Main Products:
FAQ: Q: Are you trading company or manufacturer?
A: We are manufacturer.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. Or it is 10-15 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples? Is it free or extra?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance, balance before shippment.
Q: What is your MOQ?
A:Generally,we make mass production based on MOQ1000M, But if bulk package is ok for you, we can accpet lower order quantity like 500M.
Q: How about your price?
A:We will do our best to offer a good price for our customers, usually our price is worked out according to the current exchange rate, probable order quantity, most important is your sincerity on cooperation!
If you have another question, pls feel free to contact us as below:
please link: www.chinaronju.comWelcome all the partners to visit us. No matter where you are and when we meet, It's never too late to start our long-lasting and friendly cooperation.WE ARE YOUR BEST CHOICE.LET'S START OUR BUSINESS.
Chongqing RonJu Cable&Wire Co., Ltd which was established with registered capital of 100, 000, 000 RMB in 2016 Sited in Xi YOng, an industrialized area in shapingpa, .
Our integrates innovation, generation and sale of cables on a highly efficient production line. Our product is currently widely embraced in multiple areas ranging from electricity to transportation and even urban modernization, proving its versatility and sustainability.
We specializes in manufacturing all kinds of cables with different voltage power cables, control cables, building wires, aluminum alloy cables, aerial cable and other special cables.
We exported all kinds of cables and wires to America, Europe, Australia, Africa, Asia, and so on. Our company got the certificate for ISO 9001 quality system certificate; ISO14001 environmental management system certificate. All the products produce according to, IEC, GB standard. Besides, We also manufacture products according to customer's requirement.
Our team, young and industrious, is dedicated in advancing product itself and the production technique as well, maintaining the established user base, enlarging it through constantly providing high quality products and impeccable service, which are also the sound ground for our branding in this intensely competing international.
With highly specialized products and constantly generated power, our company, R. J. Cable, establishes its "three-in-one" branding (the brand of entrepreneurs, of enterprises, and of products) and pursues a long-term proceeding. Our marketing is distinct for its market-oriented strategies and immediate responses to volatility. Such qualities significantly fuel a dynamically proceeding company.
Welcome all the partners to visit us. No matter where you are and when we meet, It's never too late to start our long-lasting and friendly cooperation.
