6.35mm Power Connector

Name: 6.35mm Power Connector
Brand: all-electronics-online.com
SKU: 609256164
Availability: InStock
Rating: 4.9 (133 reviews)

Price:	US $ 0.1/Piece
Trade Terms:	FOB,EXW,CIF
Min Order:	1000/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	with Operating Temperatures of -55 to 105 Degrees
Markets:	North America,South America,Eastern Europe,Southeast Asia,Oceania,Mid East,Eastern Asia,Western Europe
Type:	Socket Terminals
Material:	Copper Galvanized
Application:	Conduct Electricity

Product Description

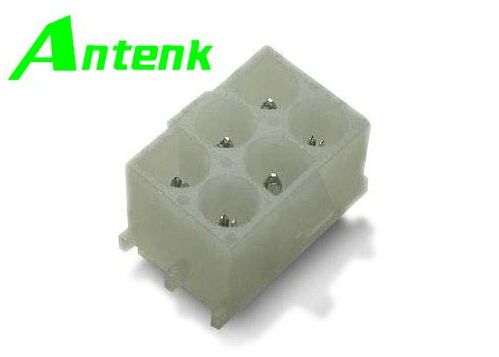

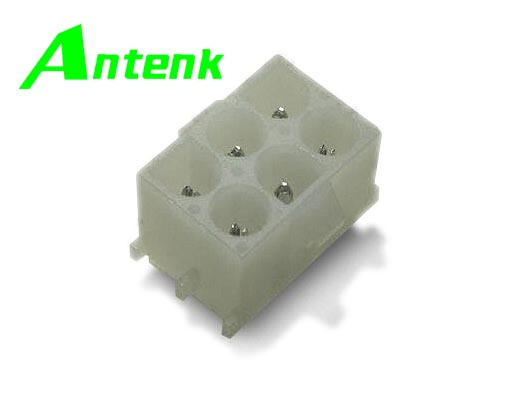

0.25-inch/6.35mm Power Connector in Vertical Header with 600V Voltage
1, 2 to 10, 12, 15 circuits available
2, Pin material: Tin-plated phosphor bronze
3, Plastic material: UL 94V-0 or 94V-2 nylon 66
4, Mates with 6.35mm housing and terminal
5, With male or female pins
6, With or without polarizing feature
7, Current rating: 13A (2 to 5p), 11A (6 to 15p)
8, Voltage rating: 600V
9, Dielectric withstanding voltage: 5, 000V AC/minute
10, Ambient temperature range: -55 to 105 degree Celsius (including temperature rise)
