| Prod Model: |
GCYFTY |
| Length: |
According to Requirement |
| Fiber Cores: |
According to Requirement |
| Application: |
Communication |
| Certification: |
ISO9001 |
| Type: |
Singlemode Fiber or Multimode Fiber |
| Connection Structure: |
Fiber Optic |
| Material Shape: |
Glass Fiber |
| Core: |
6-72 Cores |
| Brand: |
HNK or OEM |
| Sheath Material: |
Black HDPE |
Product Description

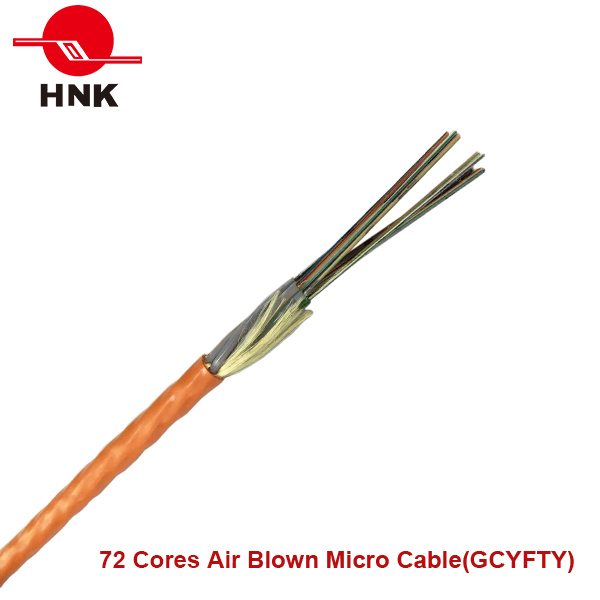

The Air Blown Micro cable is constructed with FRP Central Strength Member, Aramid yarn strength
member for better tensile strength, high density polyethylene outer Jacket. Non-metallic structure
and good electro-magnetic resistance makes it a good choice for use in High voltage and thunder
prone areas. In addition, the cable features a broad operating temperature range and water-blocking ,
making it suitable for indoor/outdoor duct installations.Complied With Or Exceeds Standard. ITU-T G652.D . ITU-T G657.A. ITU-T G651.1 OM1 OM2 OM3 OM4 . IEC60793-2-10 type A1a.1/A1b OM1/OM2. IEC60793-2-10 type A1a.2 OM3 . IEC60793-2-10 type A1a.3 OM4. ISO/IEC 11801 , ISO/IEC 24702 . IEEE 802.3z Gigabit Ethernet. ANSI/TIA/EIA 568C.3 . ROHS Compliant Directive 2011/65/EU(ROHS2.0). IEC 60794-5 Outdoor microduct optical fiber cable . IEC60304 for fiber colors. IEC 60794-1-2 Optical fiber cable test SpecificationFeatures. through up to 72 fibers for 6 mm ID micro-ducts. Small diameter, lightweight and low friction sheath design. stranding design allows for easy mid-span access and isolates
fibers from installation and environmental rigors. HDPE as outer sheath for increased blowing distance and fast.. Ripcord added for easier sheath removal.. Fiber options: SM (G652D, G657A), MM (OM1, OM2, OM3 & OM4). Higher fiber count cable designs are available on request.Cable Technical Parameters| ITEM | Value |
| Fiber count | 6~72 Cores |
| Tube count | Up to 6 |
| Cable OD | 6.0±0.3mm |
| Loose tube OD | 1.65±0.05mm |
| Max. Tensile(Short term) | 600N |
| Max. Tensile(Long term) | 300N |
| Max. Crushing Resistance(Short term) | 1000N/100 mm |
| Max. Crushing Resistance(Long term) | 300N/100 mm |
| Sheath Material | Standard: HDPE. Optional: PE |
| Min. Bending Radius(Dynamic) | 20D |
| Min. Bending Radius(Static) | 10D |
| Strength Member | 1.6mm FRP |
| Standard Jacket Color | Black |
| Environmental Protection | RoHS COMPLIANT |
| Storage Temperature | -40~70ºC |
| Operation Temperature | -40~70ºC |
| Installation Temperature | 0 ~ 50ºC |

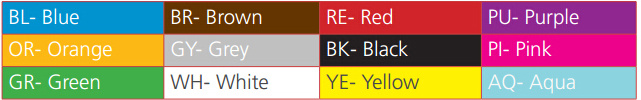

ANSI/TIA/EIA-598-B Standard Fiber Color CodeFiber Number Fiber Color Fiber Number Fiber Color
Fiber 1 Blue Fiber 7 Red
Fiber 2 Orange Fiber 8 Black
Fiber 3 Green Fiber 9 Yellow
Fiber 4 Brown Fiber 10 Violet
Fiber 5 Slate Fiber 11 Rose
Fiber 6 White Fiber 12 Aqua
Ordering InformationPart Number: OC-GCYFTY-ABCDCL
Ordering Guide| XX | A | B | C | D | CL |
| Cable Type | Jacket | Fiber/Tube | Fiber Count | Fiber Type(FXX) | Jacket Color(CL) |
| GCYFTY | 1=HDPE
2=PE | 06=06 Fiber/T
08=08 Fiber/T
10=10 Fiber/T
12=12 Fiber/T | No. Of Fiber
004F,048F | OM1=62.5/125 OM1, OM2=50/125 OM2
OM3=50/125 OM3, OM4=50/125 OM4
G652D=9/125 G652D,
G657A=9/125 G657A | As noted in Color code chart |
Ordering Sample| Part Number | Description |
| OC-GCYFTY-112072G652DBK | 72 cores Singlemode G652D GCYFTY Air Blown Micro cable,
12 Fiber/Tube, HDPE jacket, Black color. |
