Outdoor Indoor Single Mode Multimode Fiber Optic Cable

Name: Outdoor Indoor Single Mode Multimode Fiber Optic Cable
Brand: all-electronics-online.com
SKU: 724410365
Availability: InStock
Rating: 4.3 (25 reviews)

Price:	US $ 1/Meter
Trade Terms:	FOB,CIF,DAP
Min Order:	2000/Meter
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

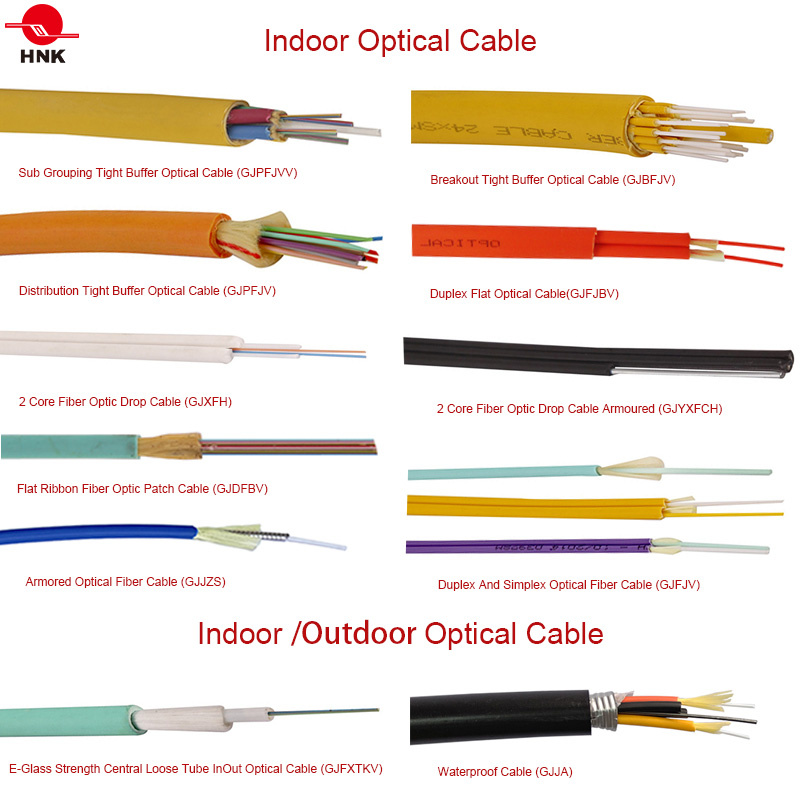

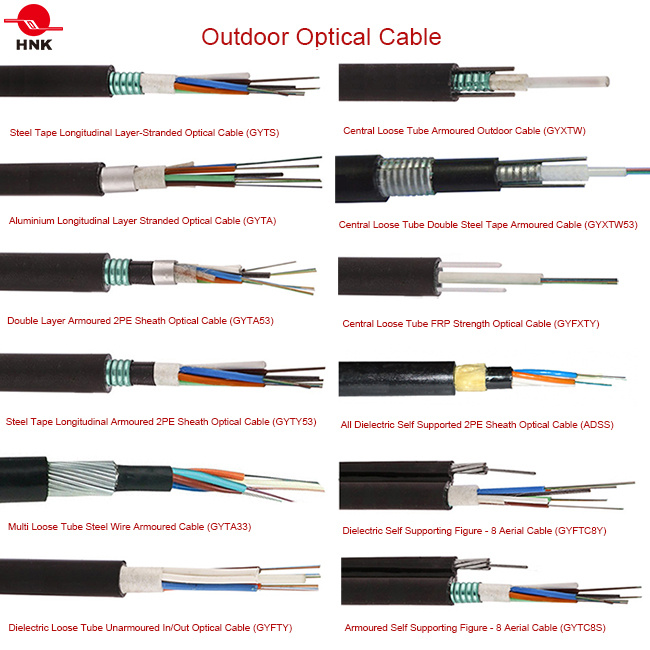

HNK's ISO9001 certified factory in Shenzhen, China. HNK have generated a complete
line of indoor and outdoor cable products in tight buffered and loose tube constructions.
Excellent Performance & Competitive Price. Contact us now for more details!

Complied With Or Exceeds Standard
. ITU-T G652.D                                      . ITU-T G651.1 OM1 OM2 OM3 OM4
. ITU-T G657.A                                      . IEC60793-2-10  type A1a.1/A1b OM1/OM2
. IEC60793-2-10  type A1a.2 OM3        . IEC60793-2-10  type A1a.3 OM4
. ISO/IEC 11801 , ISO/IEC 24702         . IEEE 802.3z Gigabit Ethernet
. ANSI/TIA/EIA 568C.3                          . ROHS Compliant Directive 2011/65/EU(ROHS2.0)

Optical Characteristics
Of all the differences between multimode & singlemode fiber, the most fundamental differences are the
size of the fiber's core and the associated attenuation or loss and bandwidth of the fiber. The smaller the
core diameter, the higher the fiber's bandwidth and the lower the attenuation (loss in dB per kilometer).
The fiber's attenuation and bandwidth are also dependent on wavelength.

Singlemode was for high-speed long-distance transmission and multimode (in either the 50 µm or 62.5 µm
core diameters) was used for lower speed short distance applications. Multimode 50 µm fiber had a lower
cost and higher modal bandwidth than multimode 62.5 µm core fiber. Bandwidth is a measurement of the
data-carrying capacity of the fiber. A higher bandwidth fiber carries more data. See table below.

Fiber Type	Max. Attenuation (dB/km)				Min.Overfill Launch Bandwidth (Mhz.km)		Min.Gigabit Ethernet Link Distance (m)
	Max. Attenuation (dB/km)				Min.Overfill Launch Bandwidth (Mhz.km)		Gigabit		10Gigabit
	850nm	1300nm	1310nm	1550nm	850nm	1300nm	850nm	1300nm	850nnm
OM1 62.5/125µm	≤2.7	≤0.6	-	-	≥500	≥600	275	550	-
OM2 50/125µm	≤2.3	≤0.6	-	-	≥500	≥500	750	600	150
OM3 50/125µm	≤2.3	≤0.6	-	-	≥1500	≥500	1000	600	300
OM4 50/125µm	≤2.3	≤0.6	-	-	≥3500	≥500	1100	600	550
G652D 9/125µm	-	-	≤0.30	≤0.18	-	-	-	-	-
G657A 9/125µm	-	-	≤0.35	≤0.21	-	-	-	-	-

ANSI/TIA/EIA-598-B Standard Fiber Color Code

Fiber Number	Fiber Color	Fiber Number	Fiber Color
Fiber 1	Blue	Fiber 7	Red
Fiber 2	Orange	Fiber 8	Black
Fiber 3	Green	Fiber 9	Yellow
Fiber 4	Brown	Fiber 10	Purple
Fiber 5	Gray	Fiber 11	Pink
Fiber 6	White	Fiber 12	Aqua
Fiber 13 and higher The color code is repeated with added black stripe or dash
Note: Fiber Tube color will be followed with same order.

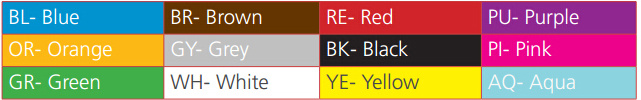

Color Code

Ordering Information
Part Number: OC-XX-ABCDCL

Ordering Guide

XX	A	B	C	D	CL
Cable Type	Jacket	Fiber/Tube	Fiber Count	Fiber Type(FXX)	Jacket Color(CL)
please see the referrence above	1=PVC 2=LSZH 3=PE	01=01 Fiber/T 02=02 Fiber/T ... 11=11 Fiber/T 12=12 Fiber/T	No. Of Fiber 004F,048F	OM1=62.5/125 OM1 OM2=50/125 OM2 OM3=50/125 OM3 OM4=50/125 OM4 G652D=9/125 G652D G657A=9/125 G657A	As noted in Color code chart

Prod Model:	Fiber Optic Cable
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Length:	According to Requirement
Fiber Cores:	According to Requirement
Application:	Communication
Certification:	ISO9001
Type:	Singlemode Fiber or Multimode Fiber
Connection Structure:	Fiber Optic
Material Shape:	Glass Fiber
Brand:	HNK or OEM
Sheath Material:	PE, LSZH, PVC
