| Prod Model: |
600/1000V XLPE cable B1-45 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Cores: |
Multi Cores |
| Standards: |
IEC/Bs/Ieca |
| Voltage: |
Low and Medium Voltage Cable |
| Current: |
DC & AC |
| Application: |
Power Station |
| Certification: |
VDE |
| Insulation Material: |
XLPE / PVC |
Product Description

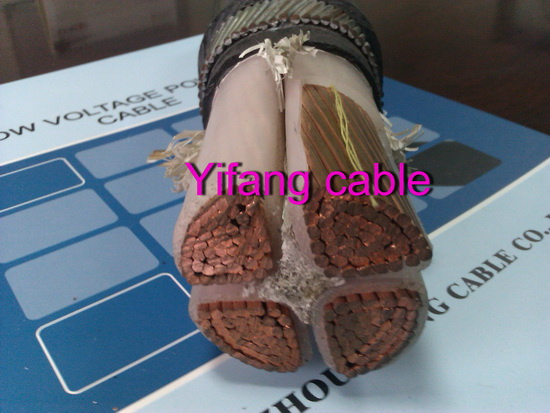

600/1000V XLPE cable
Application and Description:
0.6/1KV, copper conductor, XLPE/PVC insulated power cable is for Iindustrial wiring and mains distribution. Can be laid direct in the ground, or in ducts, clipped to surface, on trays or in free air. May be embedded in concrete.
Standards: IEC 60502 / BS 5467 / DIN / ICEA
Design
Conductor: Stranded circular copper - class 2 according to IEC 60228 / BS EN 60228: 2005
Cores: 1C, 2C, 3C, 4C, 5C, 3C+1E, 4C+1E, 3C+2E
Insulation: XLPE / PVC
Filler: Laying up with fillers
Inner sheath: PVC / LSZH
Armour: Steel or steel tapes ( aluminium wires or aluminum tape can be customized)
Outer sheath: PVC / LSZH
Rated Voltage Uo/U (Um): 0.6/1 KV
Range of Nominal cross section: 1.5 mm2 ~ 630 mm2
8AWG~4/0AWG, 300MCM, 500MCM, 750MCM, 1000MCM
Mechanical characteristics:
Mechanical resistance to impacts: Excellent
Cable flexibility: Rigid
Usage characteristics:
Max. Conductor temperature in service: 70° C(PVC insulation), 90° C(XLPE insulation)
Short-circuit max. Conductor temperature: 250° C
Operating temperature, range: -25...60° C
Weather resistance: Very good
Flame retardant: C2, NF C 32-070
Chemical resistance: Accidental
Water proof: Intermittent
Packaging: Cut to length
Dear friends, we can design and produce power cable with International and national standards according to your request.
|
Type |
Description |
Number of cores |
Nominal cross section of conductor |
|
YJV32 |
CU/XLPE/SWA/PVC Power Cable |
1, 2, 3, 4, 3+1,
5, 4+1, 3+2 |
1.5~1000mm2 |
|
YJLV32 |
AL/XLPE/SWA/PVC Power Cable |
|
|
|
YJV72 |
CU/XLPE/Non-magnetic SWA or AWA/PVC Power Cable |
1 |
1.5~1000mm2 |
|
YJLV72 |
AL/XLPE/Non-magnetic SWA or AWA/PVC Power Cable |
|
|
|
YJV33 |
CU/XLPE/SWA/PE Power Cable |
1, 2, 3, 4, 3+1,
5, 4+1, 3+2 |
1.5~1000mm2 |
|
YJLV33 |
AL/XLPE/SWA/PE Power Cable |
|
|
|
Z-YJV32 |
CU/XLPE/SWA Flame-retardant Power Cable |
1, 2, 3, 4, 3+1,
5, 4+1, 3+2 |
1.5~1000mm2 |
|
Z-YJLV32 |
AL/XLPE/SWA Flame-retardant Power Cable |
|
|
|
WDZ-YJY33 |
CU/XLPE/SWA Low Smoke Halogen Free or Zero Halogen (LSHF or LSZH) Flame-retardant Power Cable |
1, 2, 3, 4, 3+1,
5, 4+1, 3+2 |
1.5~1000mm2 |
|
WDZ-YJLY33 |
AL/XLPE/SWA Low Smoke Halogen Free or Zero Halogen (LSHF or LSZH) Flame-retardant Power Cable |
|
|
|
N-YJV32 |
CU/XLPE/SWA Fire-resistant Power Cable |
1, 2, 3, 4, 3+1,
5, 4+1, 3+2 |
1.5~1000mm2 |
