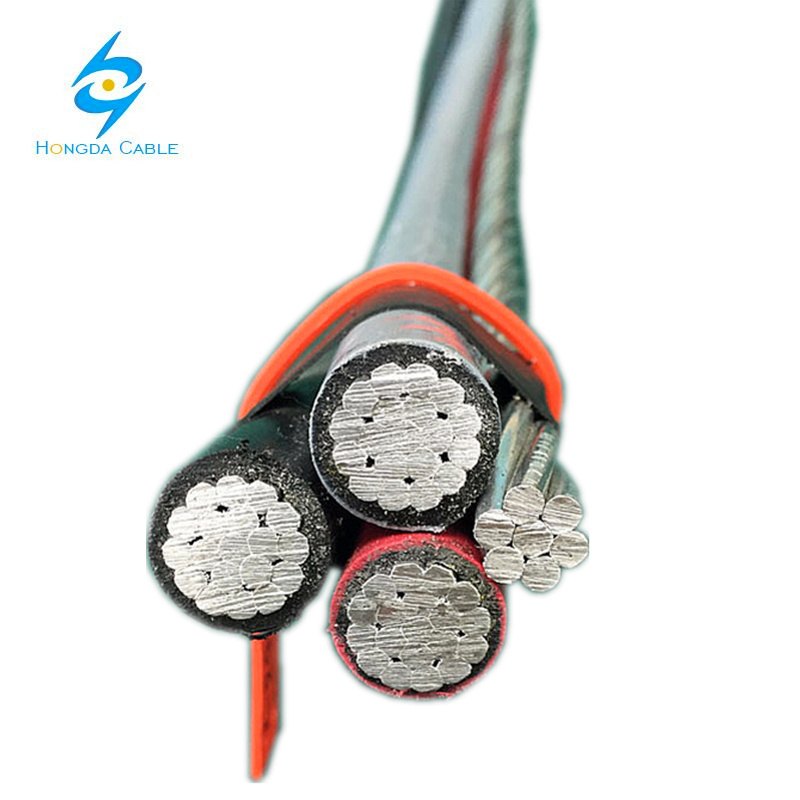

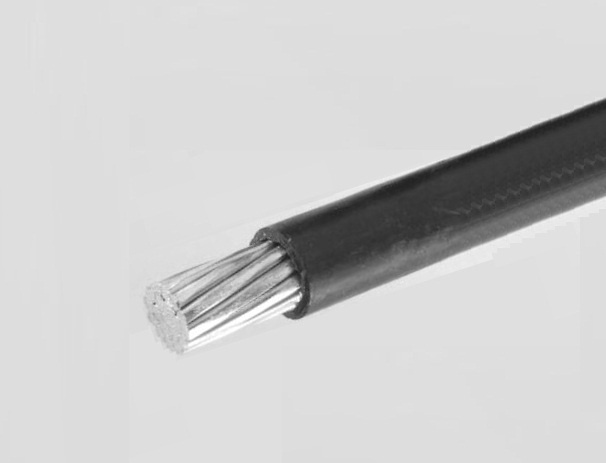

600 Volts ABC Insulated Wire Self Supporting Aerial Bundle Cable
| Price: |
US $ 0.1-6.9/Meter |
| Min Order: |
1000/Meter |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
600 Volts ABC Insulated Wire Self Supporting Aerial Bundle CableInstallation Information
• Economical • Flexible • Safe • Vandal proof • Durable • Aesthetically pleasing • Adaptable
RATED VOLTAGE
U0/U = 0,6/1 kV, Um = 1,2 kV
APPLICATION
For overhead distribution as a part of AMKA-system, where the messenger is used as PEN-conductor. The cable can have one optional conductor for street lighting.
Highest permissible conductor temperature:
• continuous operation 90 °C
• short circuit (duration up to 5 s) 250 °C
Lowest recommended temperature during laying: -20 °C

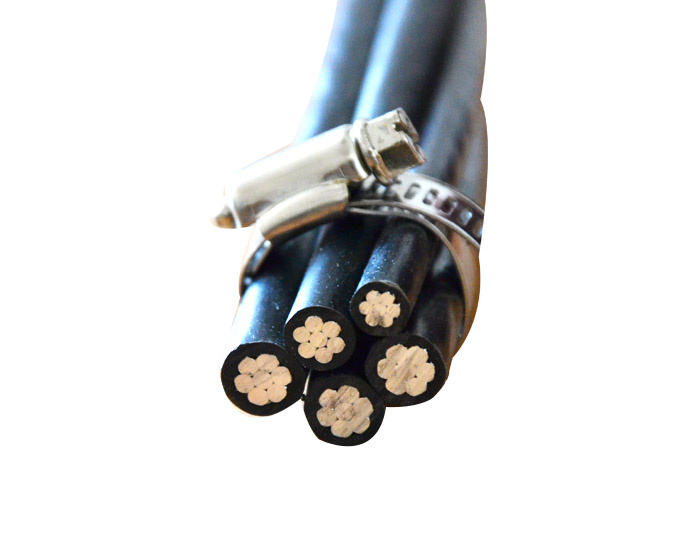

CONSTRUCTION| Conductor | 16 mm²: solid aluminium wire
25-120 mm²: stranded aluminium wire |
| Insulation | Black weather-resistant PE / XLPE compound |
| Messenger | Stranded aluminium alloy wire |
| Laying up | Insulated conductors are laid up around the messenger |
IDENTIFICATION OF CORES
Phase conductors: 2, 3 or 4 longitudinal ridges
Optional conductor: no ridges
STANDARDS
SFS 2200
HD 626-5D
NFC 33-209
Mechanical Properties
Cable
Size | Conductor
Diameter | Core
Diameter | Self Supporting System | Supporting Core System |
Approx.
Assembly
Diameter | Approx.
Assembly
Mass | Maximum
Design
Load | Supporting
Core Size | Approx.
Assembly
Diameter | Approx.
Assembly
Mass | Maximum
Design
Load |
| Phase Cores | Min | Max | Min | Max |
| mm² | (mm) | (mm) | (A) | kA | (mm) | (kg/km) | (kN) | mm² | (mm) | (kg/km) | (kN) |
| 25 | 5,6 | 6,5 | 8,4 | 9,6 | 25 | 400 | 5 | 54,6 | 26 | 507 | 6 |
| 35 | 6,6 | 7,5 | 9,8 | 11,1 | 27 | 540 | 7 | 54,6 | 28 | 612 | 6 |
| 50 | 7,7 | 8,6 | 10,9 | 12,3 | 29 | 697 | 9 | 54,6 | 32 | 730 | 6 |
| 70 | 9,3 | 10,2 | 12,9 | 14,3 | 33 | 982 | 14 | 54,6 | 34 | 944 | 6 |
| 95 | 11,0 | 12,0 | 14,6 | 16,2 | 37 | 1302 | 19 | 54,6 | 38 | 1183 | 6 |
| 120 | 12,5 | 13,5 | 16,1 | 17,5 | 41 | 1470 | 24 | 70 | 40 | 1600 | 8 |
| 150 | 13,9 | 15,0 | 17,5 | 19,2 | 45 | 2011 | 30 | 95,0 | 44 | 1870 | 13 |
| Above Plus 25mm² Auxiliary Core |
| 25 | N/A | N/A | N/A | N/A | 25 | 505 | N/A | N/A | 32 | 612 | N/A |
| 35 | 32 | 645 | 34 | 717 |
| 50 | 34 | 802 | 36 | 835 |
| 70 | 38 | 1087 | 38 | 1049 |
| 95 | 42 | 1407 | 42 | 1288 |
| 120 | 44 | 1575 | 50 | 1705 |
| 150 | 48 | 2116 | 56 | 1975 |
(1) Approximate value.
(2) See the basic assumptions at general information of products.
(3) Final installation with careful single bending into final position.
(4) The effective diameter in wind is equal to the length of measuring tape wrapped around the cable divided by the value 3,1416 (pi).
(5) Initial temperature of conductor before short circuit 70°C, final temperature of conductor after short circuit 135°C.
(6) Initial temperature of messenger before short circuit 70°C, final temperature of messenger after short circuit 135°C.

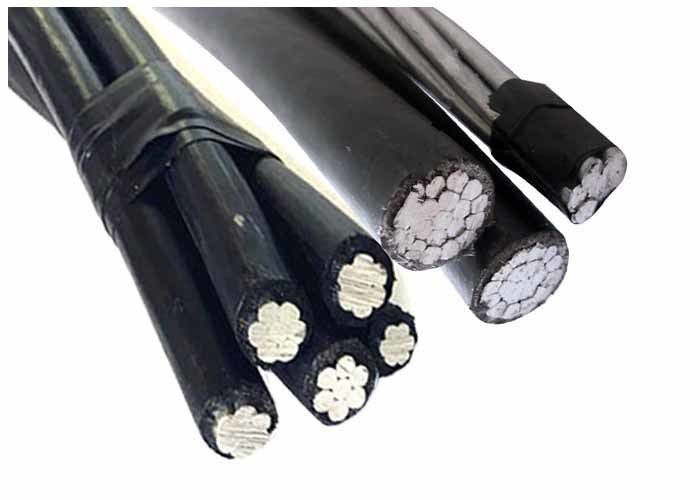

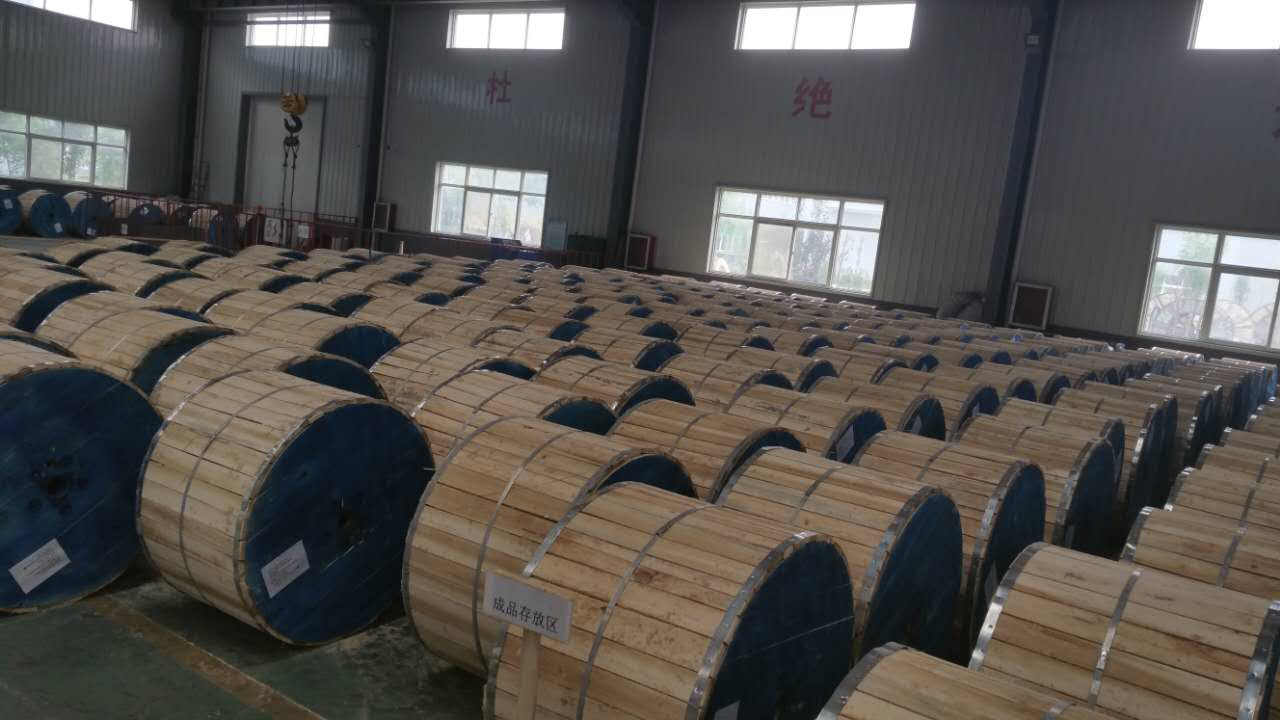

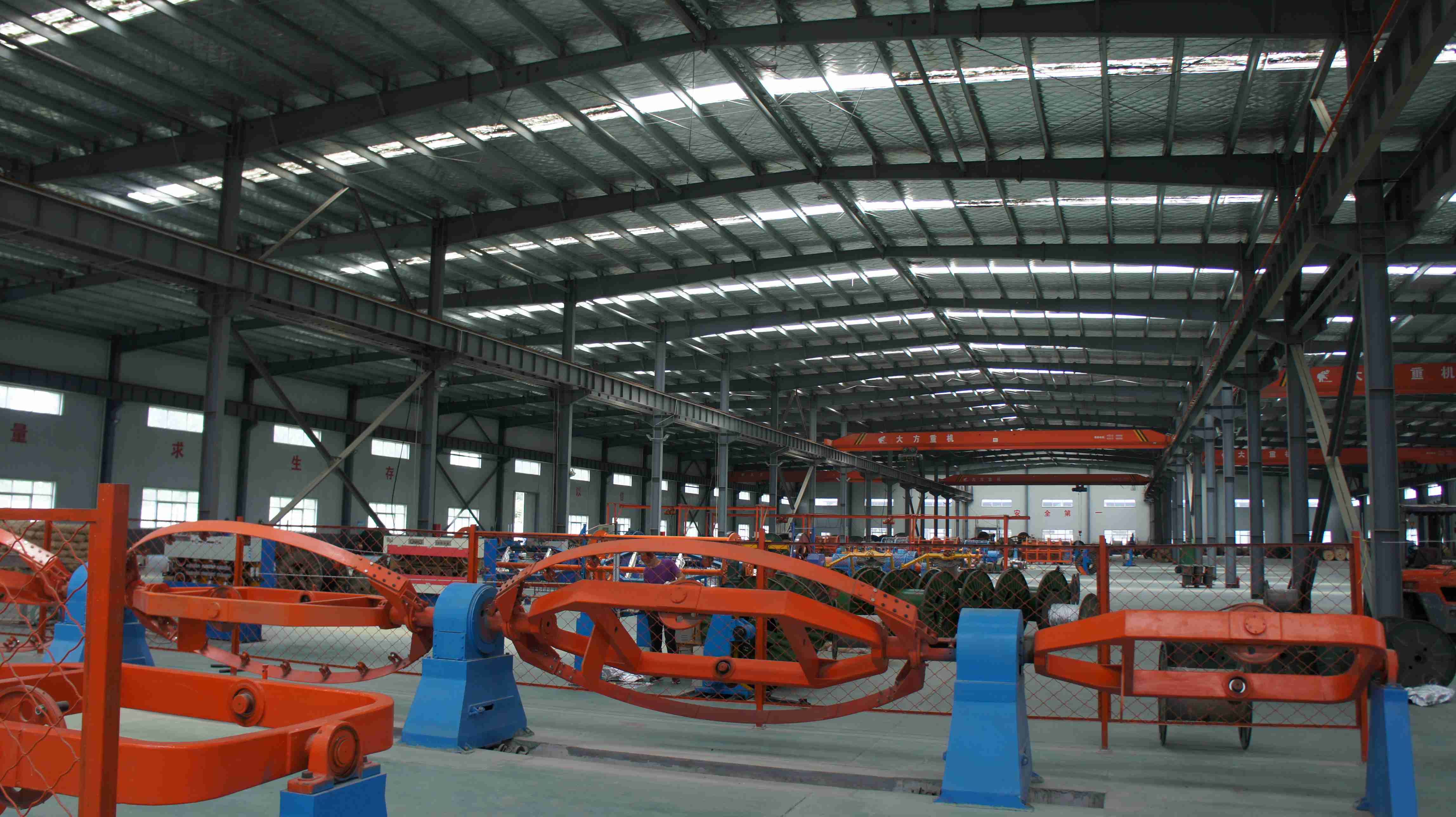

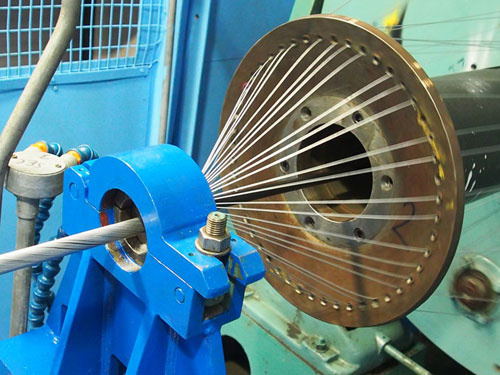

PACKAGE AND FACTORY:
| Prod Model: |
600 Volts ABC Insulated Wire Self Supporting Aeria |
| Phase Conductors: |
2, 3 or 4 Longitudinal Ridges |
| Optional Conductor: |
No Ridges |
| Type: |
Insulated |
| Conductor Type: |
Stranded |
| Application: |
Overhead |
| Conductor Material: |
Aluminum |
| Insulation Material: |
XLPE |
| Certification: |
CCC |
| Range Of Application: |
Overhead |
| Brand: |
Hongda |
Henan Hongda Cable Co., Ltd. Located in No. 3, Changping Road, ZhanDian District, Jiaozuo, Wuzhi. Our factroy established in March of 2004. Our owns registered capital of RMB Fifty-one million six hundred and eighty thousand. Our company covers an area of 100, 000 square meters, including 50, 000 square meters of building area, and has more than 120 staff members and professional workers accounting for one third. Our fixed assets of 90, 000, 000. We can provide more than 100 varieties, tens of thousands of specifications of wire and cable, with 10000 km annual production capacity.
Henan Hongda Cable Co. Ltd. Is the original Zhengzhou Hongda Cable Co. Ltd. Established enterprise expansion. The company is committed to system R&D, design, manufacturing, marketing and service of cable products, We mainly aim at managing cross-linking XLPE insulated power cables, PVC insulated power cables, plastic insulated control cables, insulated overhead cables, and stranded aluminum and ACSR. At present, the cables' biggest cross area is 800 square meters with a maximum electric power of 35KV. The company has more than 70 (sets) domestic and oversea-leading production and testing equipment.
Our company's products have passed the ISO9001 Quality Management System Certification, the products also passed China Compulsory Certification (3C certification).
Our company insists on the principle of "Taking high and new technology as guide and being based on modern management". Our products sell well all over the world and the main reason is that we attach great importance to business honesty. We sincerely hope to be your partner.
