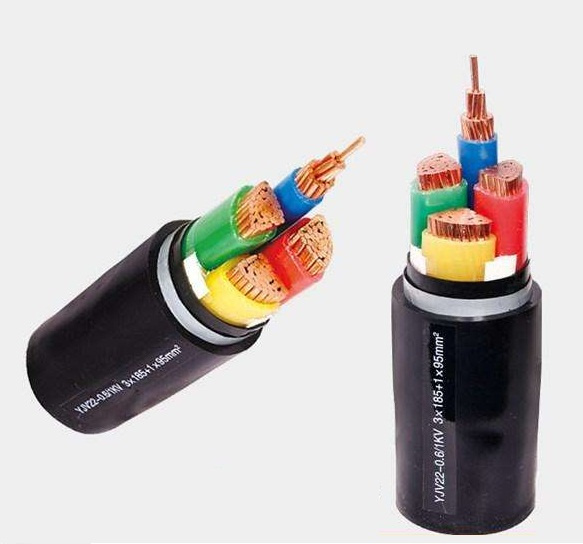

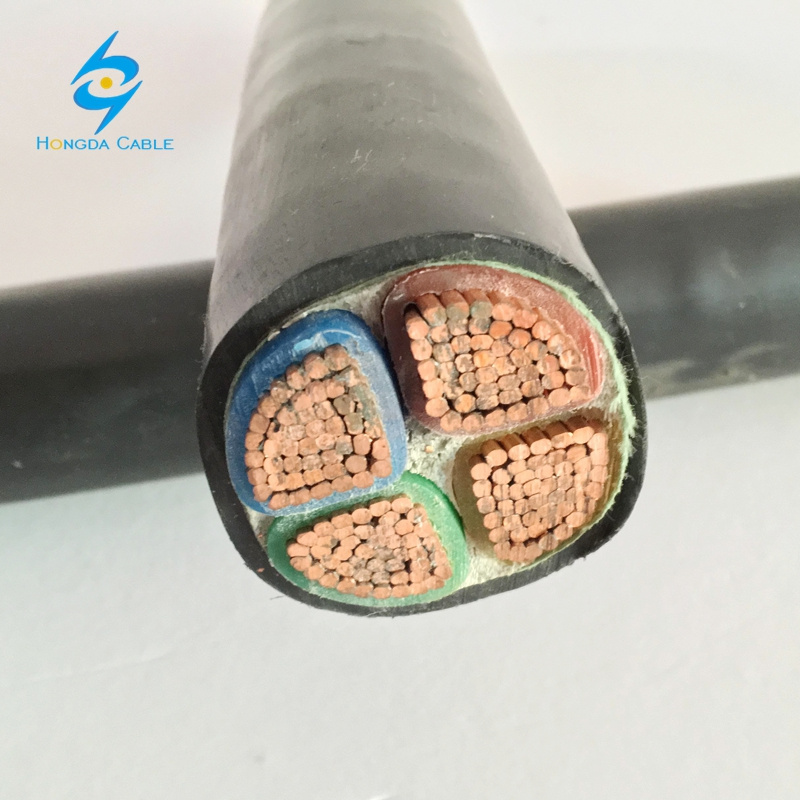

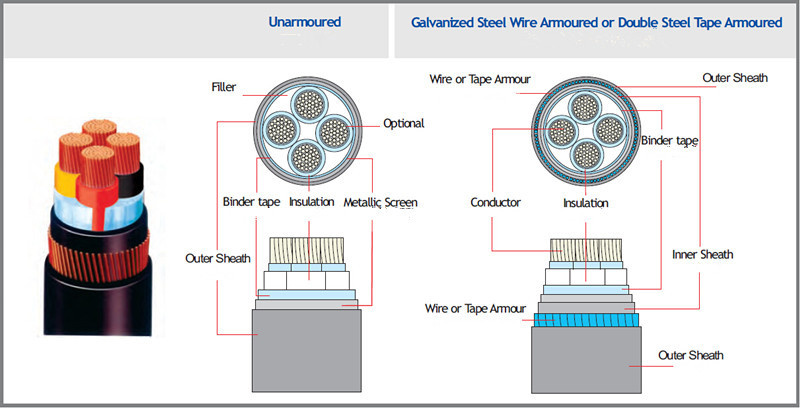

Construction Underground power cable 240 sq mm cable 3x240Structure
Standard for Construction Underground power cable 240 sq mm cable 3x240
Hongda Construction Underground power cable 240 sq mm cable 3x240 is manufactured according to the standard of GB12706 or IEC,BS,DIN and ICEA upon request.
Applications for Construction Underground power cable 240 sq mm cable 3x240
XLPE cable is suitable for dynamic line transmission and distribution lines of shielding performance requirements more stringent,especially applies to the rated voltage 0.6/1kV and below frequency inverter control system for power supply or connectiing cables.Frequency conversion cable is actually a shield-type power cable,the difference is that ground wires are divided into third part placed in the three main line between core to uniform electric field and improve levels of electromagnetic radiation of cable.Mostly used in high-power inverter power supply and frequency conversion motor connection
Operating characteristics for Construction Underground power cable 240 sq mm cable 3x240
1.Rated power-frequency voltage Uo/U of electrical cable : 0.6/1kV
2.Max.permissible continuous operating temperature of electrical cable conductor: 90°C
3.Max.short-circuit temperature of electrical cable conductor shall not exceed 250°C.(5s maximum)
4.The ambient temperature under installation should not below 0°C
5.The bending radius of electrical cable should not less than 15 times of electrical cable diameter.
The type of Construction Underground power cable 240 sq mm cable 3x240
Chinese Type | Description of xlpe insulated cable | Core qty | Conductors range |
YJV | Copper conductor, xlpe insulated cable, PVC outer sheath Power Cable | 1, 2, 3, 4, 3+1, 5, 4+1, 3+2 | 1.5~800mm2 |
YJY | Copper conductor, XLPE insulated cable, PE outer sheath Power Cable | 1, 2, 3, 4, 3+1, 5, 4+1, 3+2 | 1.5~800mm2 |
ZA-YJV ZB-YJV ZC-YJV | Copper conductor, XLPE insulated flame-retardant Power Cable | 1, 2, 3, 4, 3+1, 5, 4+1, 3+2 | 1.5~800mm2 |
WDZA-YJY WDZB-YJY WDZC-YJY | Copper conductor, XLPE insulated cable of Low Smoke Halogen Free or Zero Halogen (LSHF or LSZH) flame-retardant Power Cable | 1, 2, 3, 4, 3+1, 5, 4+1, 3+2 | 1.5~800mm2 |
NH-YJV | Copper conductor, XLPE insulated cable of fire-resistant Power Cable | 1, 2, 3, 4, 3+1, 5, 4+1, 3+2 | 1.5~800m |
| DIMENSIONS |
Cores
number
N° | Cross
section
mm² | Approx
conductor
diameter
mm | Insulation
medium
thickness
mm | Min. sheath
thickness
mm | Max.
external
diameter
mm | Electric
resistance at
20°C
ohm/km | Approx
cable weight
kg/km | Current
carrying
air free
A | Current
carrying
burried
A |
| Single core |
| 1x | 1.5 | 1.4 | 0.7 | 1.09 | 6.6 | 12.1 | 45 | 24 | 31 |
| 1x | 2.5 | 1.8 | 0.7 | 1.09 | 7 | 7.41 | 55 | 33 | 41 |
| 1x | 4 | 2.25 | 0.7 | 1.09 | 7.6 | 4.61 | 75 | 45 | 59 |
| 1x | 6 | 3.05 | 0.7 | 1.09 | 8.2 | 3.08 | 100 | 58 | 74 |
| 1x | 10 | 3.8 | 0.7 | 1.09 | 9.2 | 1.83 | 140 | 80 | 101 |
| 1x | 16 | 4.7 | 0.7 | 1.09 | 10.5 | 1.15 | 205 | 107 | 128 |
| 1x | 25 | 5.9 | 0.9 | 1.09 | 12.5 | 0.727 | 315 | 138 | 144 |
| 1x | 35 | 7.1 | 0.9 | 1.09 | 13.5 | 0.524 | 400 | 169 | 174 |
| 1x | 50 | 8 | 1 | 1.09 | 15 | 0.387 | 530 | 207 | 206 |
| 1x | 70 | 9.6 | 1.1 | 1.09 | 17 | 0.268 | 725 | 268 | 254 |
| 1x | 95 | 11.4 | 1.1 | 1.18 | 19 | 0.193 | 985 | 328 | 301 |
| 1x | 120 | 13.1 | 1.2 | 1.18 | 21 | 0.153 | 1260 | 382 | 343 |
| 1x | 150 | 14.6 | 1.4 | 1.26 | 23 | 0.124 | 1520 | 441 | 387 |
| 1x | 185 | 16.5 | 1.6 | 1.26 | 25.5 | 0.0991 | 1940 | 506 | 434 |
| 1x | 240 | 18.4 | 1.7 | 1.35 | 28.5 | 0.0754 | 2310 | 599 | 501 |
| 1x | 300 | 21.1 | 1.8 | 1.43 | 31 | 0.0601 | 3200 | 693 | 565 |
| 1x | 400 | 23.5 | 2 | 1.52 | 34.2 | 0.047 | 3931 | - | 639 |
| 1x | 500 | 26.5 | 2.2 | 1.6 | 38 | 0.0366 | 5020 | - | 713 |
| 1x | 630 | 30.1 | 2.4 | 1.69 | 44 | 0.0286 | 5324 | - | 785 |
| Two cores |
| 2x | 1.5 | 1.4 | 0.7 | 1.43 | 10.5 | 12.1 | 115 | 26 | 37 |
| 2x | 2.5 | 1.8 | 0.7 | 1.43 | 11.5 | 7.41 | 145 | 36 | 48 |
| 2x | 4 | 2.25 | 0.7 | 1.43 | 13 | 4.61 | 195 | 49 | 63 |
| 2x | 6 | 3.05 | 0.7 | 1.43 | 14 | 3.08 | 265 | 63 | 80 |
| 2x | 10 | 3.8 | 0.7 | 1.43 | 16 | 1.83 | 390 | 86 | 104 |
| 2x | 16 | 4.7 | 0.7 | 1.43 | 18.5 | 1.15 | 560 | 115 | 136 |
| 2x | 25 | 5.9 | 0.9 | 1.43 | 22 | 0.727 | 850 | 149 | 173 |
| 2x | 35 | 7.1 | 0.9 | 1.43 | 24.5 | 0.524 | 1080 | 185 | 208 |
| Three cores |
| 3x | 1.5 | 1.4 | 0.7 | 1.43 | 11 | 12.1 | 130 | 23 | 31 |
| 3x | 2.5 | 1.8 | 0.7 | 1.43 | 12.5 | 7.41 | 170 | 31 | 41 |
| 3x | 4 | 2.25 | 0.7 | 1.43 | 13.5 | 4.61 | 230 | 42 | 53 |
| 3x | 6 | 3.05 | 0.7 | 1.43 | 15 | 3.08 | 325 | 54 | 66 |
| 3x | 10 | 3.8 | 0.7 | 1.43 | 17 | 1.83 | 485 | 75 | 87 |
| 3x | 16 | 4.7 | 0.7 | 1.43 | 19.5 | 1.15 | 705 | 100 | 113 |
| 3x | 25 | 5.9 | 0.9 | 1.43 | 23.5 | 0.727 | 1080 | 127 | 144 |
| 3x | 35 | 7.1 | 0.9 | 1.43 | 26 | 0.524 | 1390 | 158 | 174 |
| 3x | 50 | 8 | 1 | 1.43 | 29 | 0.387 | 1840 | 192 | 206 |
| 3x | 70 | 9.6 | 1.1 | 1.52 | 34 | 0.268 | 2540 | 246 | 254 |
| 3x | 95 | 11.4 | 1.1 | 1.6 | 38.5 | 0.193 | 3430 | 298 | 301 |
| 3x | 120 | 13.1 | 1.2 | 1.69 | 42.5 | 0.153 | 4440 | 346 | 343 |
| 3x | 150 | 14.6 | 1.4 | 1.86 | 47.5 | 0.124 | 5380 | 395 | 395 |
| 3x | 185 | 16.5 | 1.6 | 1.94 | 53 | 9.91 | 6920 | 450 | 434 |
| 3x | 240 | 18.4 | 1.7 | 2.11 | 59.5 | 7.54 | 8420 | 538 | 501 |
| 3x | 300 | 21.1 | 1.8 | 2.28 | 66 | 6.01 | 11300 | 621 | 565 |
| DIMENSIONS |
Cores
number
N° | Cross
section
mm² | Approx
conductor
diameter
mm | Insulation
medium
thickness
mm | Min. sheath
thickness
mm | Max.
external
diameter
mm | Electric
resistance at
20°C
ohm/km | Approx
cable weight
kg/km | Current
carrying air
free
A | Current
carrying
burried
A |
| Four cores |
| 4x | 1.5 | 1.4 | 0.7 | 1.43 | 12 | 12.1 | 150 | 23 | 31 |
| 4x | 2.5 | 1.8 | 0.7 | 1.43 | 13 | 7.41 | 205 | 31 | 41 |
| 4x | 4 | 2.25 | 0.7 | 1.43 | 14.5 | 4.61 | 280 | 42 | 53 |
| 4x | 6 | 3.05 | 0.7 | 1.43 | 16 | 3.08 | 390 | 54 | 66 |
| 4x | 10 | 3.8 | 0.7 | 1.43 | 18.5 | 1.83 | 590 | 75 | 87 |
| 4x | 16 | 4.7 | 0.7 | 1.43 | 21 | 1.15 | 870 | 100 | 113 |
| 4x | 25 | 5.9 | 0.9 | 1.43 | 25.5 | 0.727 | 1365 | 127 | 144 |
| 4x | 35 | 7.1 | 0.9 | 1.43 | 28.5 | 0.524 | 1760 | 158 | 174 |
| 4x | 50 | 8.1 | 1 | 1.52 | 32.5 | 0.387 | 2466 | 192 | 206 |
| 4x | 70 | 9.7 | 1.1 | 1.6 | 37.5 | 0.268 | 3442 | 246 | 254 |
| 4x | 95 | 11.4 | 1.1 | 1.69 | 42.5 | 0.193 | 4690 | 298 | 301 |
| 4x | 120 | 13.1 | 1.2 | 1.86 | 47.5 | 0.153 | 6119 | 346 | 343 |
| 4x | 150 | 14.6 | 1.4 | 1.94 | 52.5 | 0.124 | 7405 | 395 | 387 |
| 4x | 185 | 16.5 | 1.6 | 2.11 | 59 | 9.91 | 8820 | 450 | 434 |
| 4x | 240 | 18.5 | 1.7 | 2.28 | 66.5 | 7.54 | 11865 | 538 | 501 |
| 4x | 300 | 21 | 1.8 | 2.45 | 73.5 | 6.01 | 14716 | 621 | 565 |
| 3x50 + 1x35 | 8 | 1 | 1.52 | 31.1 | 0.387 | 2160 | 192 | 206 |
| 3x70 + 1x50 | 9.6 | 1.1 | 1.6 | 36.2 | 0.268 | 3010 | 246 | 254 |
| 3x95 + 1x50 | 11.4 | 1.1 | 1.69 | 40.6 | 0.193 | 3960 | 298 | 301 |
| 3x120 + 1x70 | 13.1 | 1.2 | 1.86 | 45.4 | 0.153 | 5160 | 346 | 343 |
| 3x150 + 1x70 | 14.6 | 1.4 | 1.94 | 49.5 | 0.124 | 6150 | 395 | 387 |
| 3x185 + 1x70 | 16.5 | 1.6 | 2.11 | 54.4 | 9.91 | 7780 | 450 | 434 |
| 3x240 + 1x95 | 18.4 | 1.7 | 2.28 | 61.5 | 7.54 | 9550 | 538 | 501 |
| Five cores |
| 5x | 1.5 | 1.4 | 0.7 | 1.43 | 13 | 12.1 | 180 | 23 | 31 |
| 5x | 2.5 | 1.8 | 0.7 | 1.43 | 14.5 | 7.41 | 240 | 31 | 41 |
| 5x | 4 | 2.25 | 0.7 | 1.43 | 16 | 4.61 | 335 | 42 | 53 |
| 5x | 6 | 3.05 | 0.7 | 1.43 | 17.5 | 3.08 | 475 | 54 | 66 |
| 5x | 10 | 3.8 | 0.7 | 1.43 | 20 | 1.83 | 720 | 75 | 87 |
| 5x | 16 | 4.7 | 0.7 | 1.43 | 23 | 1.15 | 1060 | 100 | 113 |
| 5x | 25 | 5.9 | 0.9 | 1.43 | 28 | 0.727 | 1645 | 127 | 144 |
| Multicores |
| 7x | 1.5 | 1.4 | 0.7 | 1.43 | 13.5 | 12.1 | 220 | 15 | 22 |
| 7x | 2.5 | 1.8 | 0.7 | 1.43 | 15 | 7.41 | 310 | 20.5 | 28 |
| 10x | 1.5 | 1.4 | 0.7 | 1.43 | 16.5 | 12.1 | 310 | 13 | 18.5 |
| 10x | 2.5 | 1.8 | 0.7 | 1.43 | 19 | 7.41 | 440 | 18 | 24.5 |
| 12x | 1.5 | 1.4 | 0.7 | 1.43 | 17 | 12.1 | 370 | 12.5 | 18 |
| 12x | 2.5 | 1.8 | 0.7 | 1.43 | 19.5 | 7.41 | 525 | 17 | 24 |
| 14x | 1.5 | 1.4 | 0.7 | 1.43 | 18 | 12.1 | 430 | 12 | 17 |
| 14x | 2.5 | 1.8 | 0.7 | 1.43 | 20.5 | 7.41 | 610 | 16 | 22 |
| 19x | 1.5 | 1.4 | 0.7 | 1.43 | 19.5 | 12.1 | 560 | 10.5 | 15 |
| 19x | 2.5 | 1.8 | 0.7 | 1.43 | 22.5 | 7.41 | 745 | 14.5 | 19.5 |
| 24x | 1.5 | 1.4 | 0.7 | 1.43 | 22.5 | 12.1 | 710 | 10 | 14 |
| 24x | 2.5 | 1.8 | 0.7 | 1.43 | 25.5 | 7.41 | 1000 | 13 | 18 |
| 30x | 1.5 | 1.4 | 0.7 | 1.43 | 24 | 12.1 | 806 | 9 | 12.5 |
| 30x | 2.5 | 1.8 | 0.7 | 1.43 | 27.5 | 7.41 | 1135 | 12 | 16.5 |
| 37x | 1.5 | 1.4 | 0.7 | 1.43 | 25.5 | 12.1 | 972 | 8 | 12 |
| 37x | 2.5 | 1.8 | 0.7 | 1.43 | 29.5 | 7.41 | 1350 | 11 | 15.5 |

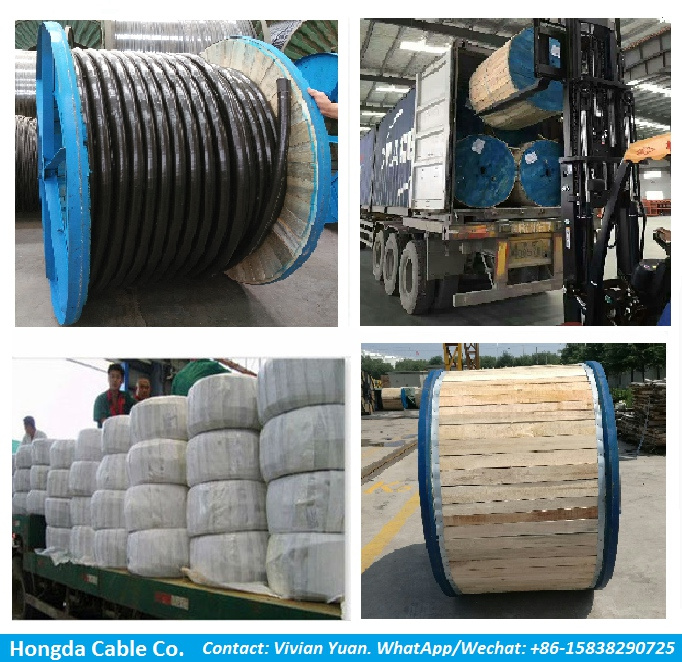

PackingA: Reel of 1500 m.
B: Reel of 1000 m.
C: Reel of 500 m.
D: Multiple Reels of 1000 m.
E - Length to the client's requirement.
Steel wooden drum (fumigation)
Cable length in each drum: 500m/1000m or as per actual cable length requirements.
Drum size:As per cable length and container size
*In order to quote you accurate price, kindly tell us your needed cable length quantity. Larger quantity, more discount benefit ready for you!
Shipping Port:Shanghai, Qingdao, Tianjin or other ports as per your requirements.
Sea freight:FOB/C&F/CIF/DAP quotation are all available.
