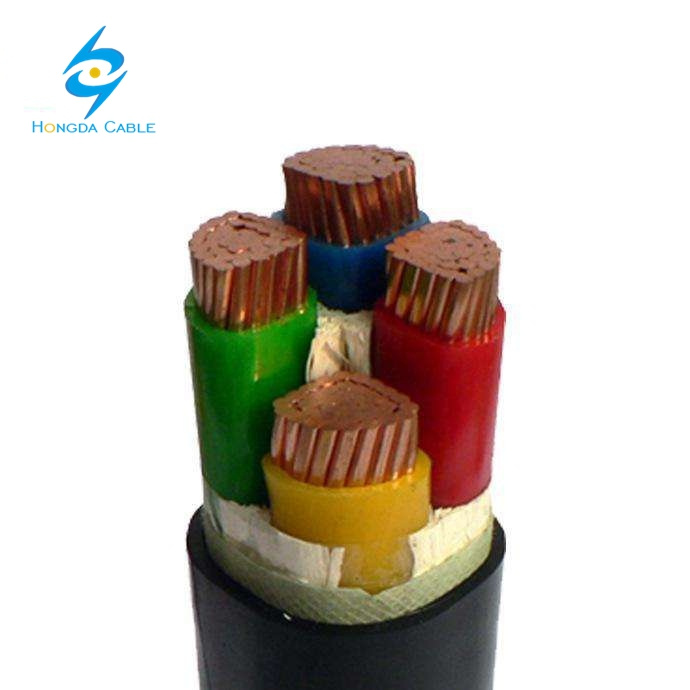

Low Voltage Copper PVC Insulated 4 Core 95mm Power Cable

Applications

These cables are used for electricity supply in low voltage installation system, They are suitable for installation in indoors and outdoors, in cable ducts, under ground, in power and switching stations, local energy distributions, industrial plants, where there is no risk of mechanical damage. The lead sheath brings an enhanced resistance to aromatic hydrocarbons.

Construction

Conductors

The conductors shall be either of Class 1 or Class 2 of plain or metal-coated annealed copper or of plain aluminium or aluminium
Alloy, or of Class 5 of plain or metal-coated copper in accordance with IEC 60228.

Insulation

PVC Insulation material and thickness shall be as per IEC 60502-1, PVC material shall be Type A as per IEC 60502-1.

Colour Code

Colour Code (1)

Colour Code (2)

Other colours can be manufactured upon request.

Assembly / Inner Covering

The inner coverings may be extruded or lapped. For cables with circular cores, except cables with more than five cores,
A lapped inner covering shall be permitted only if the interstices between the cores are substantially filled. A suitable binder
Is permitted before application of an extruded inner covering. The materials used for inner coverings and fillers shall be
Suitable for the operating temperature of the cable and compatible with the insulating material. For halogen free cables,
The inner covering and fillers shall also be halogen free compound.

Lead Sheath

Lead or lead alloy and shall be applied as a reasonably tight-fitting seamless tube.

Seperation Sheath

The seperation sheath shall be of extruded PVC Type ST2 as per IEC 60502-1, or other material refer to outer
Sheath material.

Armour

Aluminum/galvanized steel/steel wires applied helically over the Inner Covering as per IEC 60502-1, or double
Aluminum/steel tapes and copper/tinned copper wire can also be manufactured upon request.

Outer Sheath

Outer sheath shall be of extruded PVC Type ST1/ST2 as per IEC 60502-1, Polyethylene type ST3/ST7, Halogen free
Compound ST8, Polychloroprene, chlorosulfonated polyethylene or similar polymers, type SE1 are also available
On request.

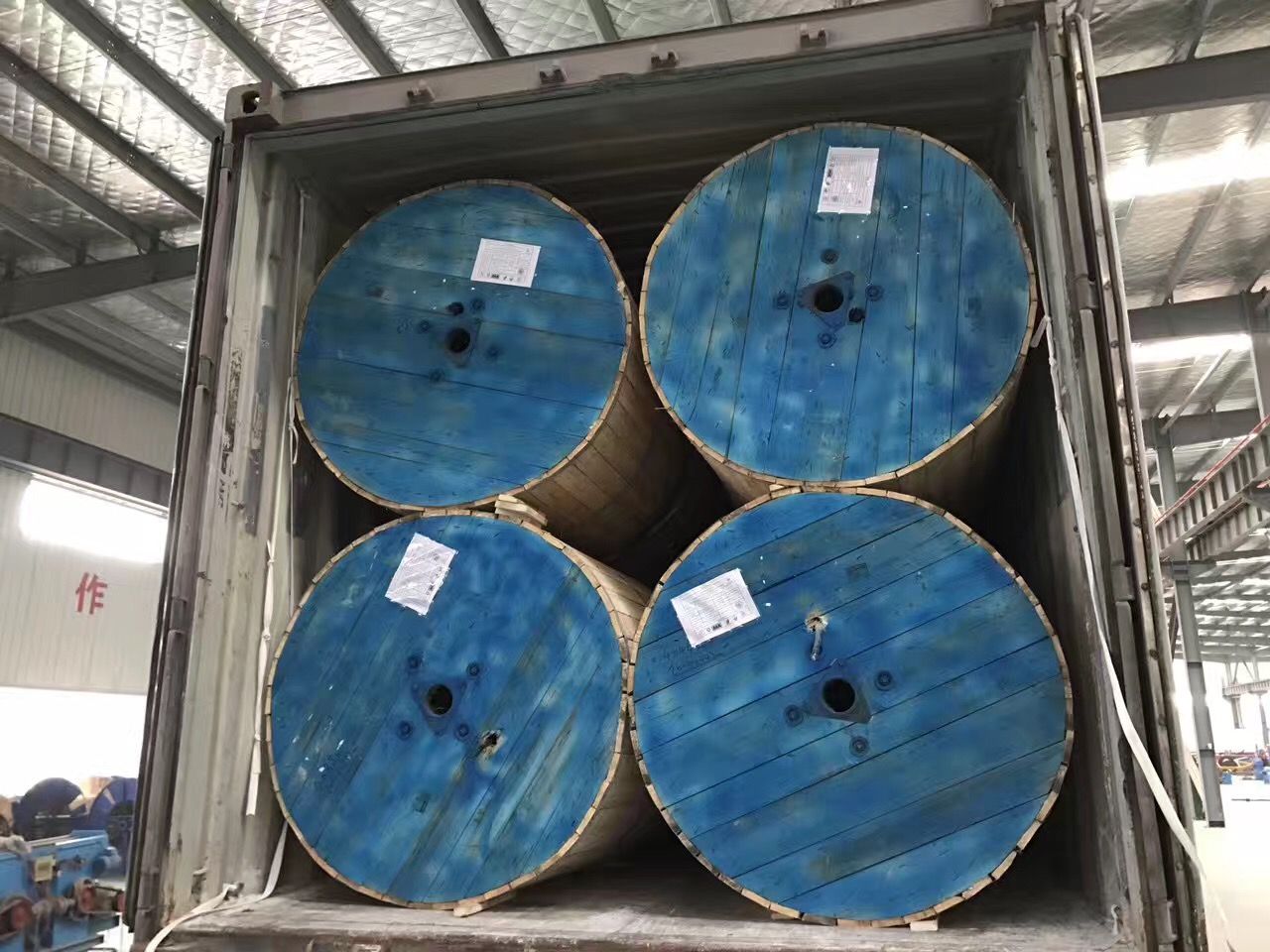

Packing shipping




Why Choose Us?

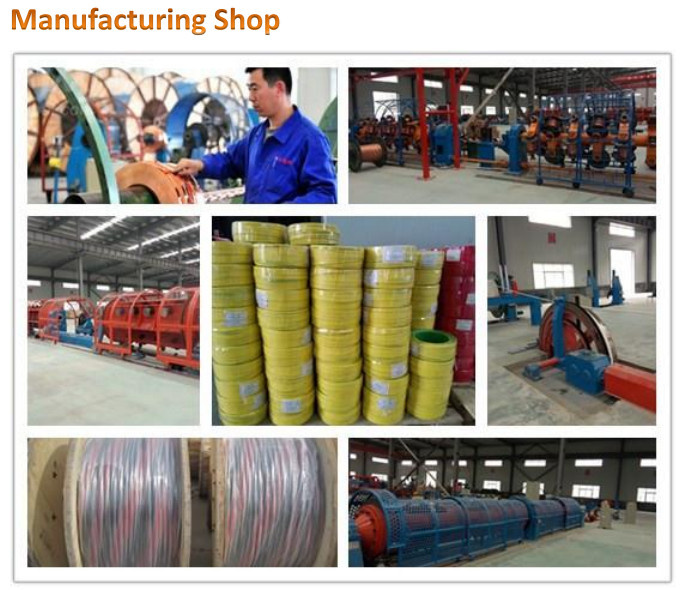

1. We have a large production base, and advanced production equipment
2. Have an competitive price and high quality
3. Excellent after-sale service
4. Free issue: Packaging list, invoice
5. Powerful technology team
6. Strict quality assurance system and perfect testing means
7. Advanced process equipment
8. Delivery on time
9. Our cable sales to Middle East, Africa, Russia, Southeast Asia, etc.
10. We have a good reputation in the overseas


FAQ
Q: Are you trading company or manufacturer?

A: We are factory.

Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. Or it is 15-20 days if the goods are not in stock,
It is according to quantity.

Q: Do you provide samples? Is it free or extra?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment?

A: 30% T/T in advance, 70% T/T balance before shipment

If you have another question, pls feel free to contact us below
