| Prod Model: |
THW |
| Voltage: |
600V |
| Type: |
Insulated |
| Conductor Type: |
Stranded |
| Conductor Material: |
Copper |
| Insulation Material: |
PVC |
| Certification: |
CCC |
| Application: |
Housing Use |
| Sheath Material: |
No Sheath |
| Brand: |
Hongda |
Product Description

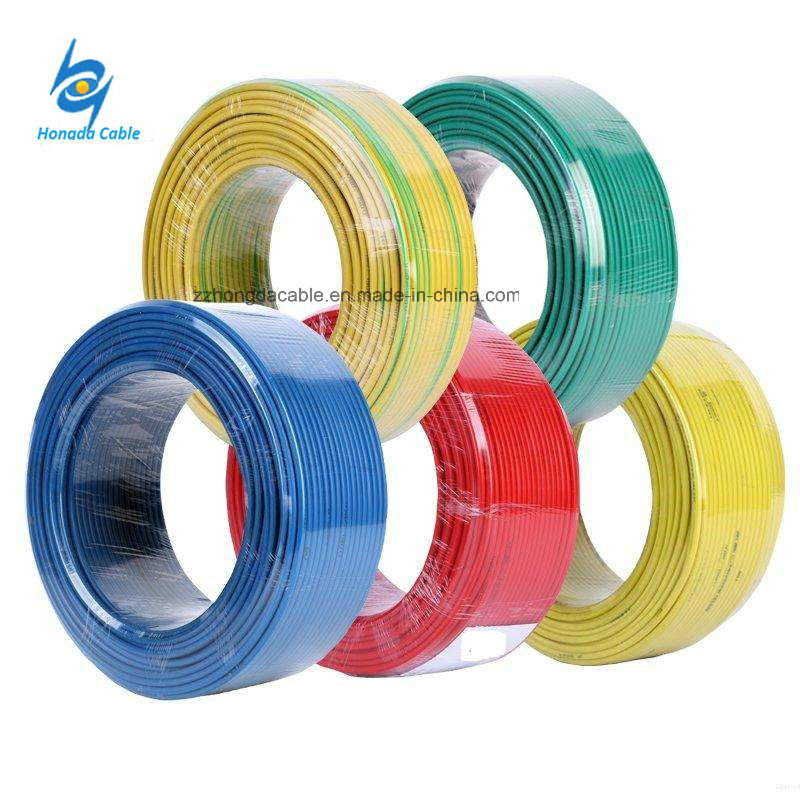

600V 12AWG 10AWG Copper Type Thw Tw Electrical Wire
Our company is a professional manufacturer of 12 awg wire ,We have the best R&D, production, sales and service team and modern enterprise management organization
1. Standard: BS6500, IEC277-5 UL 83
2. Application: General purpose indoor and outdoor, electrical tools, washing machines, and vacuum cleaners etc.

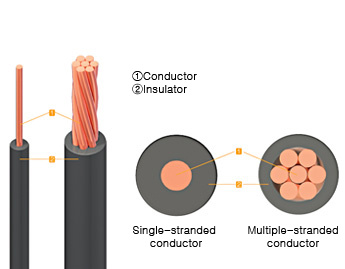

3. Construction: annealed copper conductor PVC insulated
4. Voltage: 300/500V 600/1000v
Type | Name | Laying Site and Requirements | Long-time Permissible Working Temperature of Conductor(°C) |
227IEC01/05 BV BLV | Copper Conductor,PVC Insulated Wire | Fixed laid in the circumstance of indoor, conduit etc. | 70 |
Aluminium Conductor,PVC Insulated Wire |
227IEC 07 BV-90 | Heat Resistant Copper Conductor,PVC Insulated Wire at 90 | Fixed laid in the circumstance of high temperature environment and can be laid indoor, conduit etc. | 90 |
BVR | Copper Conductor,PVC Insulated Flexible Wire | Fixed laid where flexibility is required. | 70 |
227-IEC10 BVV | Copper Conductor PVC Insulated and PVC Sheathed Round Wire | Fixed laid where high mechanical protection and moisture are required. They can be laid in the air or underground. | 70 |
BLVV | Aluminium Conductor PVC Insulated and PVC Sheathed Round Wire |
BVVB | Copper Conductor PVC Insulated and PVC Sheathed Flat Wire |
BLVVB | Aluminium Conductor PVC Insulated and PVC Sheathed Flat Wire |
227IEC 02 RV227 IEC 06 RV | Copper Conductor,PVC Insulated Flexible Connector | Mainly used at middle-light type movable euipments, instrument and meters, household appliances, power and lighting and the places where flexibility is required. | 70 |
227IEC 42 RVB | Copper Conductor,PVC Insulated Flat Flexible Connector |
RVS | Copper Conductor,PVC Insulated Flexible Twisting Connector |
227IEC52 RVV 227IEC53 RVV | Copper Conductor PVC Insulated and PVC Sheathed Round Flexible Connector(Light and Common Type) |
600V 12AWG 10AWG Copper Type Thw Tw Electrical Wire SPECIFICATION:
SIZE AWG
MCM | CROSS SECTION
AL mm2 | STRANDING number of
wire x diametre mm | INSULATION
THICKNESS mm | EXTERNAL
DIAMETER mm | TOTAL WEIGHT
KG/KM |
| 20 | 0.52 | 1×0.813 | 0.76 | 2.33 | 9.81 |
| 18 | 0.82 | 1×1.02 | 0.76 | 2.54 | 13.16 |
| 16 | 1.31 | 1×1.29 | 0.76 | 2.81 | 18.1 |
| 14 | 2.08 | 1×1.63 | 0.76 | 3.15 | 26.1 |
| 12 | 3.31 | 1×2.05 | 0.76 | 3.57 | 38.3 |
| 10 | 5.26 | 1×2.59 | 0.76 | 4.11 | 57.4 |
| 8 | 8.34 | 1×3.26 | 1.14 | 5.54 | 95.2 |
| 14 | 2.08 | 7×0.62 | 0.76 | 3.38 | 27.8 |
| 12 | 3.31 | 7×0.78 | 0.76 | 3.86 | 40.1 |
| 10 | 5.26 | 7×0.98 | 0.76 | 4.46 | 59.9 |
| 8 | 8.37 | 7×1.23 | 1.14 | 5.97 | 105.2 |
| 6 | 13.3 | 7×1.55 | 1.52 | 7.69 | 170.4 |
| 4 | 21.15 | 7×1.96 | 1.52 | 8.92 | 255.5 |
| 2 | 33.62 | 7×2.47 | 1.52 | 10.45 | 388.9 |
| 1 | 42.36 | 7×2.78 | 2.03 | 12.4 | 482.9 |
| 1/0 | 53.49 | 19×1.89 | 2.03 | 13.51 | 621 |
| 2/0 | 67.43 | 19×2.12 | 2.03 | 14.66 | 778 |
| 3/0 | 85.01 | 19×2.39 | 2.03 | 16.01 | 934 |
| 4/0 | 107.2 | 19×2.68 | 2.03 | 17.46 | 1159 |
| 250 | 127 | 37×2.09 | 2.41 | 19.45 | 1368 |
| 300 | 152 | 37×2.29 | 2.41 | 20.85 | 1623 |
| 350 | 177 | 37×2.47 | 2.41 | 22.11 | 1876 |
| 400 | 203 | 37×2.64 | 2.41 | 23.3 | 2128 |
| 500 | 253 | 37×2.95 | 2.41 | 25.47 | 2631 |
| 600 | 304 | 37×3.23 | 2.79 | 28.19 | 3174 |
| 650 | 329 | 37×3.37 | 2.79 | 29.17 | 3345 |
| 700 | 355 | 37×3.49 | 2.79 | 30.01 | 3609 |

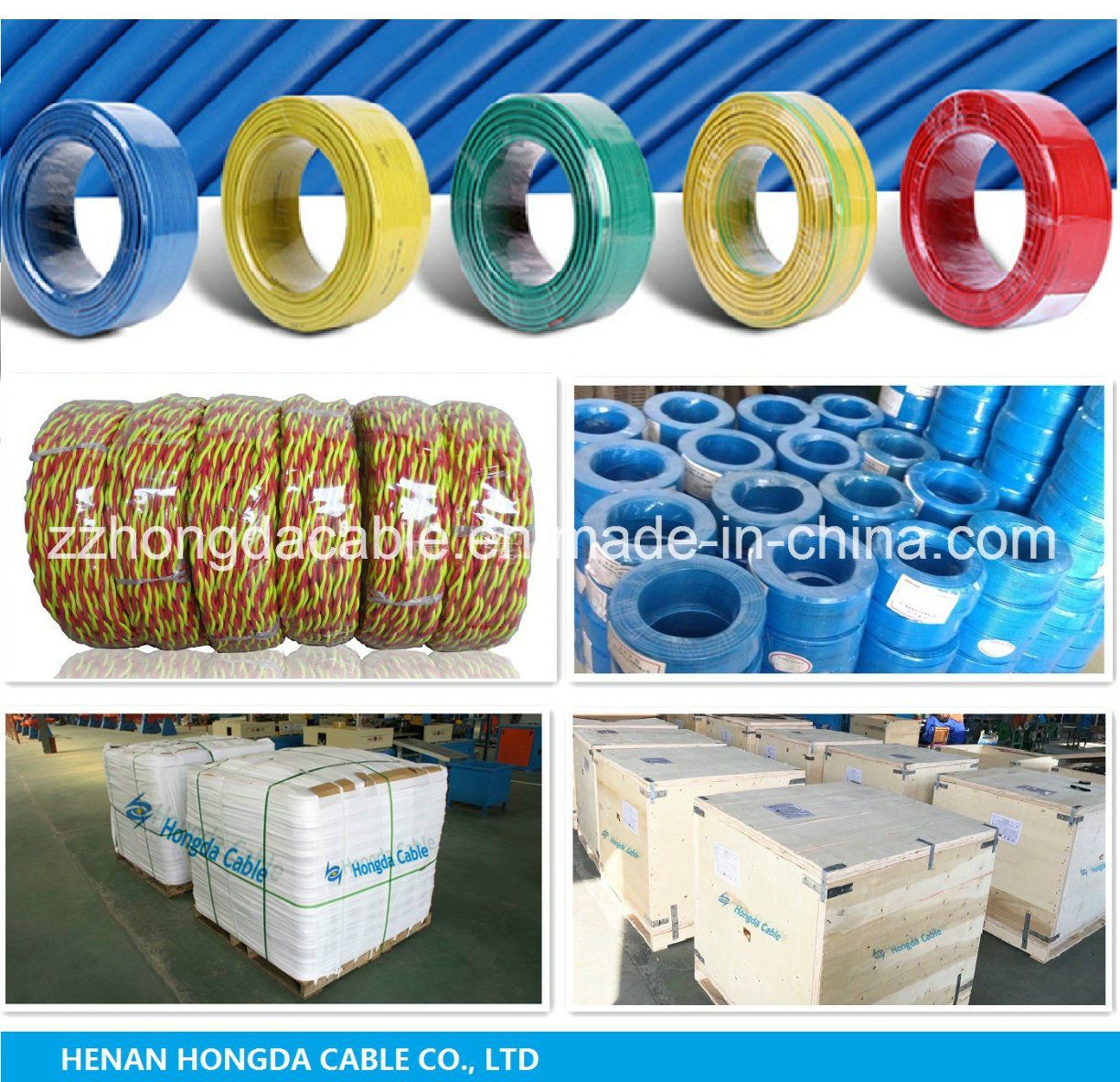

600V 12AWG 10AWG Copper Type Thw Tw Electrical Wire Packing:1.5 - 16 sqmm supplied in coil @ 100 m
25 - 400 sqmm supplied in wooden drum @ 1000 m
Length Tolerance per drum ± 2%
Company Profile
Hongda cable Co., Ltd. is one of the most professional cable & wire producer under modern enterprise system in China, which was founded in 1988, integrating scientific research, development, production and sales. Henan Hongda Cable Co., is the original Zhengzhou Hongda Cable Co., The company mainly produces 1-35 kV power cable, TW, THW, THHW, THHN electrical wire, ABC cable, Overhead Cable, AAC, AAAC, ACSR, ACAR bare conductor, Concentric Cable, etc
1. With more than 17 years manufacturing experience, our products are strictly in accordance with ISO, SGS, CCC ;
2. Good cost-control system, with highly-competitive prices;
3. Strong and Professional R&D team to meet your specific needs;
4. Fast delivery&reliable products are always the reason why you choose us.
Custom Merchandise: we can make cable as your need include the color ,size and so on.we also offer OEM .
Complete Course Tracking: we can offer you the service from the business begin to you get the cable and use it
Cable sample : we can offer the sample free
Our Advantages
Quality And Safety
- Hongda Cable was founded in 1999 with almost 17 years of experience in the cable industry.
- Our manufacturing facilities are equipped with state-of-the-art technology, so we are able to meet our customers' needs for a wide range of industrial cables.
- With knowledgable engineers, rigorous quality standards and customer-centered core values, we are always ready to provide the best available products and services.
- For customers inquiring about our services, we offer product testing and sample analysis against international standards--free of charge.
Complete Inventory And Fast Delivery
- Our integrated manufacturing and storage facilities enable us to offer flexibility in specifications and fast turnaround time.
- Providing outstanding service level, Hongda Cable will meet your requirements for both standard products from our catalog and custom solutions.
Customized Solutions And Tailored Services
- With 17 years of experience, we are proud of our industry-leading R&D center and able to meet our customers' needs.
- Hongda Cable specializes in the design, manufacturing, and distribution of special industrial cable products. We welcome any ODM inquiries.
For more information, don't hesitate to contact us AS FOLLOWS.

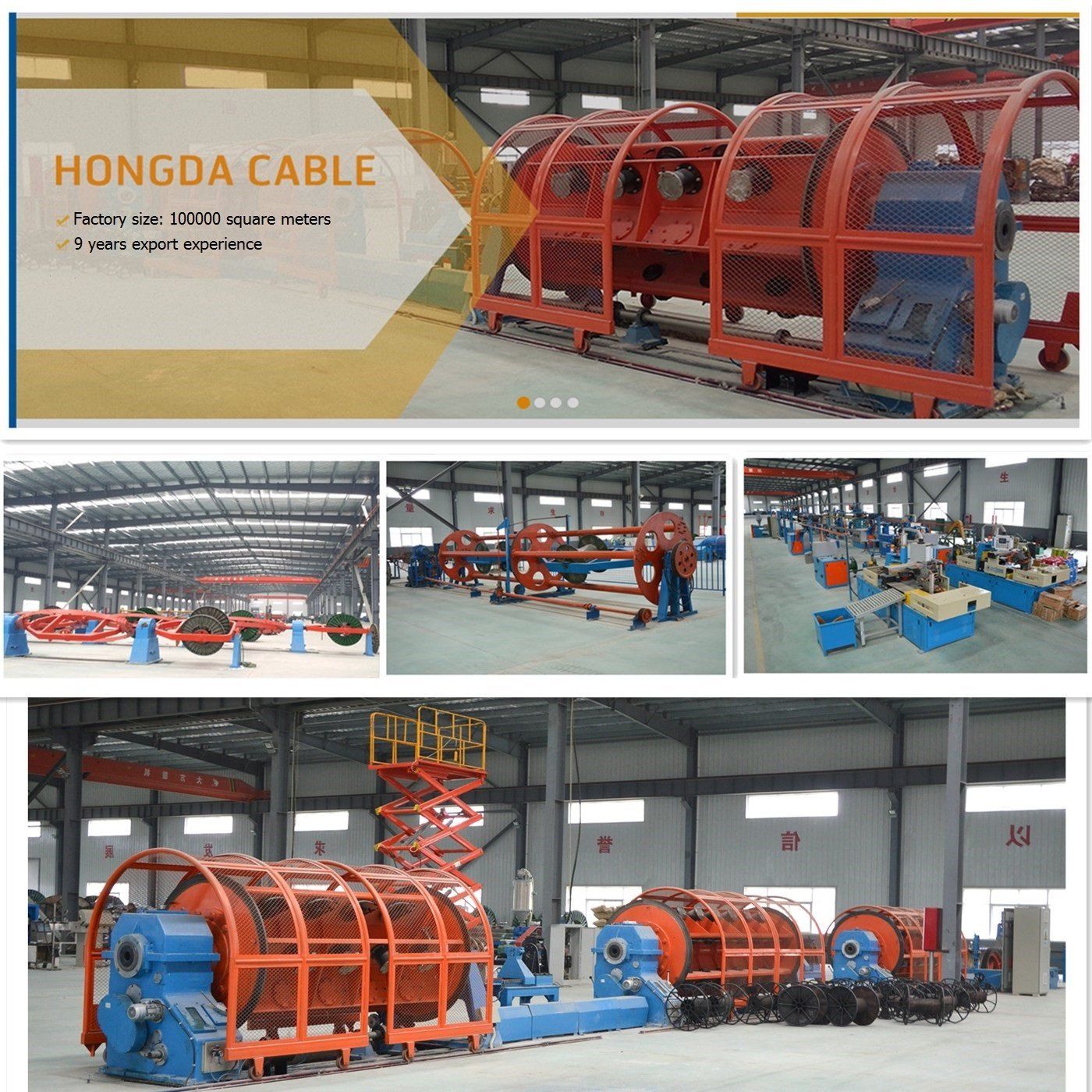

Henan Hongda Cable Co., Ltd. Located in No. 3, Changping Road, ZhanDian District, Jiaozuo, Wuzhi. Our factroy established in March of 2004. Our owns registered capital of RMB Fifty-one million six hundred and eighty thousand. Our company covers an area of 100, 000 square meters, including 50, 000 square meters of building area, and has more than 120 staff members and professional workers accounting for one third. Our fixed assets of 90, 000, 000. We can provide more than 100 varieties, tens of thousands of specifications of wire and cable, with 10000 km annual production capacity.
Henan Hongda Cable Co. Ltd. Is the original Zhengzhou Hongda Cable Co. Ltd. Established enterprise expansion. The company is committed to system R&D, design, manufacturing, marketing and service of cable products, We mainly aim at managing cross-linking XLPE insulated power cables, PVC insulated power cables, plastic insulated control cables, insulated overhead cables, and stranded aluminum and ACSR. At present, the cables' biggest cross area is 800 square meters with a maximum electric power of 35KV. The company has more than 70 (sets) domestic and oversea-leading production and testing equipment.
Our company's products have passed the ISO9001 Quality Management System Certification, the products also passed China Compulsory Certification (3C certification).
Our company insists on the principle of "Taking high and new technology as guide and being based on modern management". Our products sell well all over the world and the main reason is that we attach great importance to business honesty. We sincerely hope to be your partner.
