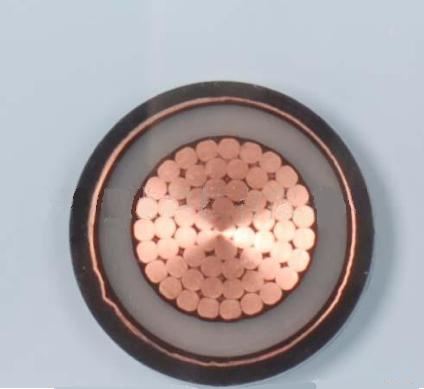

Single Core XLPE Insulated Copper Tape Screened 22kv Power Cable
| Price: |
US $ 5.96/Meter |
| Min Order: |
500/Meter |
| Pay Type: |
L/C,T/T,Western Union,Paypal |
Single Core XLPE Insulated Copper Tape Screened 22kV power cable
ApplicationXLPE insulated 22kVpower cable functions well for electricity transmission and distribution lines for its excellent electrical and physical properties, including the advantage of simplicity in construction, lightness in weight; convenience in application besides its excellent electrical, thermal, mechanical and anti-chemical corrosion properties. Laying indoors, in tunnel, fixed on the bracket, pipe and buried in the soil, the cable cannot bear external mechanical forces.Standard| IEC60502,IEC 60228,IEC60332, BS 5467, BS 6622, IS 1554, IS 7098 and ICEA S-66-524 etc. |
| Hongda Cable can also design and produce for special application requirement. |
Product Range| Rated voltage: 6/10kV |
| No. of Cores: single core |
| The ambient temperature for installation: ≥0ºC |
| Max. conductor temperature in normal operation: 90ºC |
| Max. operating temperature of conductor when cable short-circuited (5s maximum duration): 250ºC |
Construction| Conductor: Plain annealed stranded copper conductor (aluminum) to IEC60228 class 2 |
| Conductor Screen: Extruded semi-conductive compound |
| Insulation: XLPE (cross-linked polyethylene) |
| Insulation Screen: Extruded semi-conductive compound |
| Metallic Screen: Copper tape |
| Outer Sheath: PVC (type ST2) to IEC 60502 |
Main Technical Parameters for single core 22kV power cable| Cross Section | Conductor Diameter | Conductor Screen | Insulaiton | Insulation Screen | Outher Sheath | Overall Diameter | Weight of Copper Cable | Weight or Alumimnum Cable |
| Mm2 | mm | mm | mm | mm | mm | mm | kg/km | kg/km |
| 25 | 6.0 | 0.8 | 5.5 | 0.8 | 1.7 | 24.4 | 786 | 634 |
| 35 | 7.0 | 0.8 | 5.5 | 0.8 | 1.8 | 25.5 | 912 | 700 |
| 50 | 8.4 | 0.8 | 5.5 | 0.8 | 1.8 | 27.0 | 1098 | 796 |
| 70 | 10.0 | 0.8 | 5.5 | 0.8 | 1.9 | 28.7 | 1336 | 913 |
| 95 | 11.5 | 0.8 | 5.5 | 0.8 | 1.9 | 30.3 | 1619 | 1042 |
| 120 | 13.0 | 0.8 | 5.5 | 0.8 | 2.0 | 31.9 | 1899 | 1170 |
| 150 | 14.5 | 0.8 | 5.5 | 0.8 | 2.0 | 33.5 | 2230 | 1315 |
| 185 | 16.2 | 0.8 | 5.5 | 0.8 | 2.1 | 35.3 | 2616 | 1483 |
| 240 | 18.4 | 0.8 | 5.5 | 0.8 | 2.2 | 37.7 | 3187 | 1722 |
| 300 | 20.5 | 0.8 | 5.5 | 0.8 | 2.2 | 39.9 | 3819 | 1979 |
| 400 | 23.5 | 0.8 | 5.5 | 0.8 | 2.3 | 43.1 | 4781 | 2365 |
| 500 | 26.5 | 0.8 | 5.5 | 0.8 | 2.4 | 46.3 | 5853 | 2787 |
| Prod Model: |
22kV Cu(Al)/XLPE/CTS/PVC single core |
| Application: |
Power Station |
| Voltage: |
Low and Medium Voltage Cable |
| Current: |
DC Cable |
| Insulation Material: |
XLPE |
| Certification: |
CCC |
| Wire Core Material: |
Copper/Aluminum |
| Model: |
22kv Cu(Al)/XLPE/Cts/PVC Single Core |
| Brand: |
Hongda |
Henan Hongda Cable Co., Ltd. Located in No. 3, Changping Road, ZhanDian District, Jiaozuo, Wuzhi. Our factroy established in March of 2004. Our owns registered capital of RMB Fifty-one million six hundred and eighty thousand. Our company covers an area of 100, 000 square meters, including 50, 000 square meters of building area, and has more than 120 staff members and professional workers accounting for one third. Our fixed assets of 90, 000, 000. We can provide more than 100 varieties, tens of thousands of specifications of wire and cable, with 10000 km annual production capacity.
Henan Hongda Cable Co. Ltd. Is the original Zhengzhou Hongda Cable Co. Ltd. Established enterprise expansion. The company is committed to system R&D, design, manufacturing, marketing and service of cable products, We mainly aim at managing cross-linking XLPE insulated power cables, PVC insulated power cables, plastic insulated control cables, insulated overhead cables, and stranded aluminum and ACSR. At present, the cables' biggest cross area is 800 square meters with a maximum electric power of 35KV. The company has more than 70 (sets) domestic and oversea-leading production and testing equipment.
Our company's products have passed the ISO9001 Quality Management System Certification, the products also passed China Compulsory Certification (3C certification).
Our company insists on the principle of "Taking high and new technology as guide and being based on modern management". Our products sell well all over the world and the main reason is that we attach great importance to business honesty. We sincerely hope to be your partner.
