7 Pins M12 Metal Push Pull Circular Connector for Hardness Testing
| Price: |
US $ 12-14/Piece |
| Min Order: |
10/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |

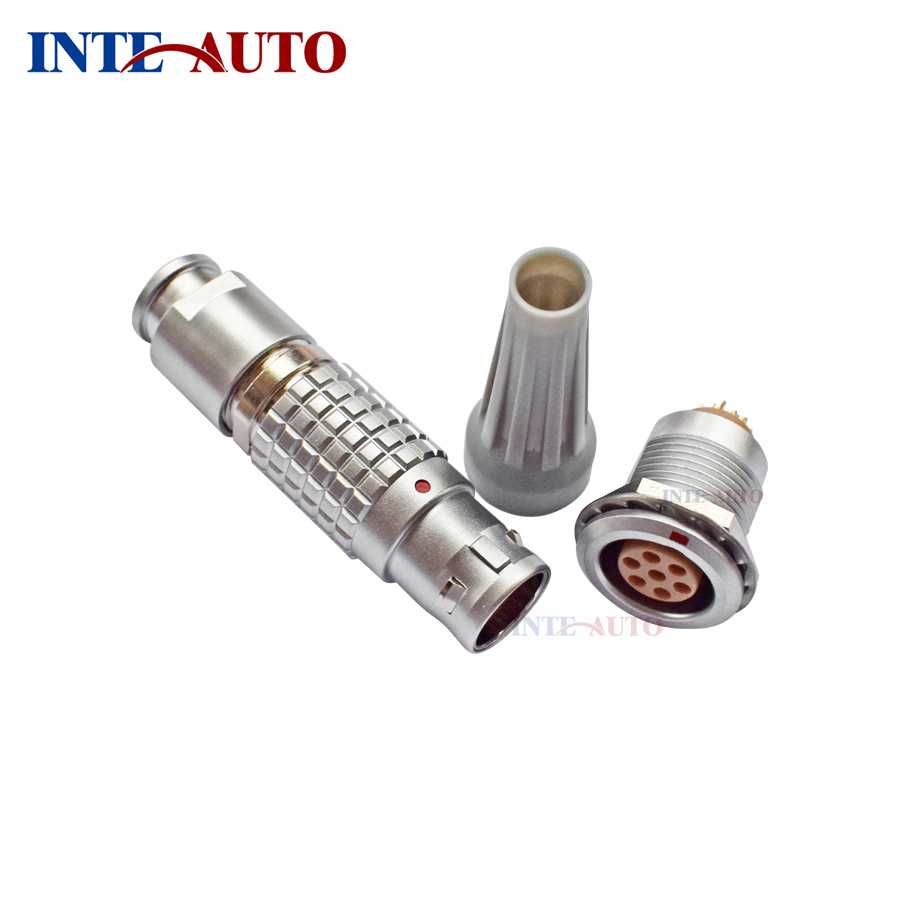

Circular push pull metal connector
Model (FGG).Series (00…3B).Key(G).Straight Plug, Cable collet.Nut for fitting a bend relief
Model(EGG).Series(00…3B).Fixed Receptacle, Key(G).contacts, nut fixingB series connectors provide the following main features:
1.Security of the Push-Pull self-latching system
2.Multiple key options to avoid cross mating
3.keying system («G» key standard)of similar connectors for connector alignment
4.360° screening for full EMC shielding.
5.multipole types 2 to 32 contacts
6.Solder, print contacts (straight or elbow)
7.High packing density for space savings

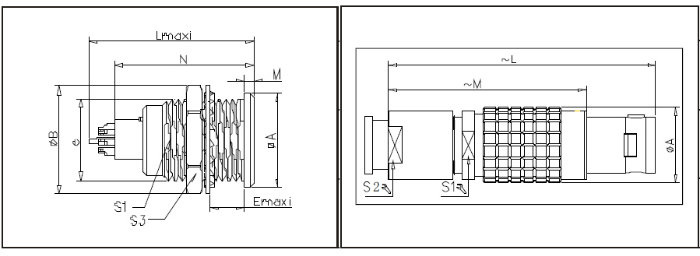

| Model | Series | L | M | A | S1 | S2 |
| INTFGG | 00 | 34.5 | 19 | 6.4 | 5.5 | 6 |
| INTFGG | 0B | 35 | 25 | 9.5 | 8 | 8 |
| INTFGG | 1B | 41 | 30 | 12 | 10 | 9 |
| INTFGG | 2B | 48 | 36 | 15 | 13 | 13 |
| INTFGG | 3B | 57 | 42 | 18 | 16 | 15 |
| Reference | Dimension |
| Model | Series | L | M | N | A | B | E | e | S1 | S3 |
| INTEGG | 00 | 15.5 | 1 | 13.7 | 8 | 10.2 | 6 | M7x0.5 | 6.3 | 9 |
| INTEGG | 0B | 20.7 | 1.2 | 19.1 | 10 | 12.4 | 7 | M9x0.6 | 8.2 | 11 |
| INTEGG | 1B | 23 | 1.5 | 21.1 | 14 | 15.8 | 7.5 | M12x1.0 | 10.5 | 14 |
| INTEGG | 2B | 26.7 | 1.8 | 24.6 | 18 | 19.2 | 8.5 | M15x1.0 | 13.5 | 17 |
| INTEGG | 3B | 30.7 | 2 | 28.1 | 22 | 25 | 11.5 | M18x1.0 | 16.5 | 22 |

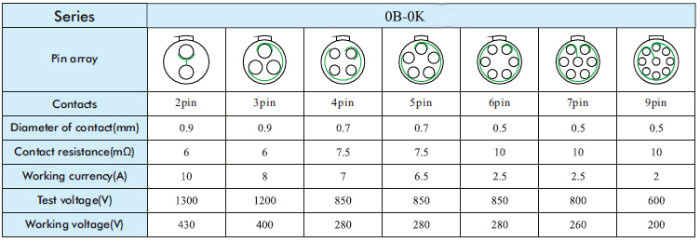

Insulator specs for B series:
Product Details:
Technical characteristics:
Mechanical and Climatically
1.Endurance:> 5000 mating cycles;
2.Humidity :Up to 95% at 60 ºC;
3.Temperature range:-45 ºC, +125 ºC;
4..Resistance to vibration :15 g[10 HZ-2000HZ];
5.Shock resistance:100 g ,6 MS;
6.Salt spray corrosion test :> 48h;
7.Protection index (mated) :IP50.
Industry Application:
It is widely used on all kinds of medical equipment's, specially for the signal transmission, Medical Equipment, Audio / Video, Test and Measurement, Communications product line.
Series B Metal Connector with Multiple pins for your selection:
00B Series:2,3,4 Pins
0B Series:2,3,4,5,6,7,9 Pins
1B Series:2,3,4,5,6,7,8,10,14,16 Pins
2B Series:2,3,4,5,6,7,8,10,12,14,16,18,19,26,32 Pins
3B Series:2,3,4,5,6,7,8,9,10,12,14,16,18,20,22,24,26,30PinsINTE-AUTO design, manufacture and distribute high performance push-pull connector and cable assembly solutions. Known for their quality and ruggedness, our products prove to be reliable in the most demanding environments. Helping solve the original brand's high cost and long lead time.
INTEAUTO Certifications &Contact INFO
PLS kindly email us exact models you need, best price & each model specification details will be provided to you soon. Solve the original brand's high cost and long lead time!
| Prod Model: |
INT13-FGG. 0B. 307 EGG. 0B. 307 |
| IP Degree: |
IP50 |
| Contacts: |
Soldering |
| Insulator Material: |
PPS |
| Sleeve Material: |
PSU |
| Sample: |
Free |
| Shipping Way: |
by TNT DHL UPS FedEx |
| Lead Time: |
Inventory |
| Number Of Contacts: |
2,3,4,5,6,7,9pins |

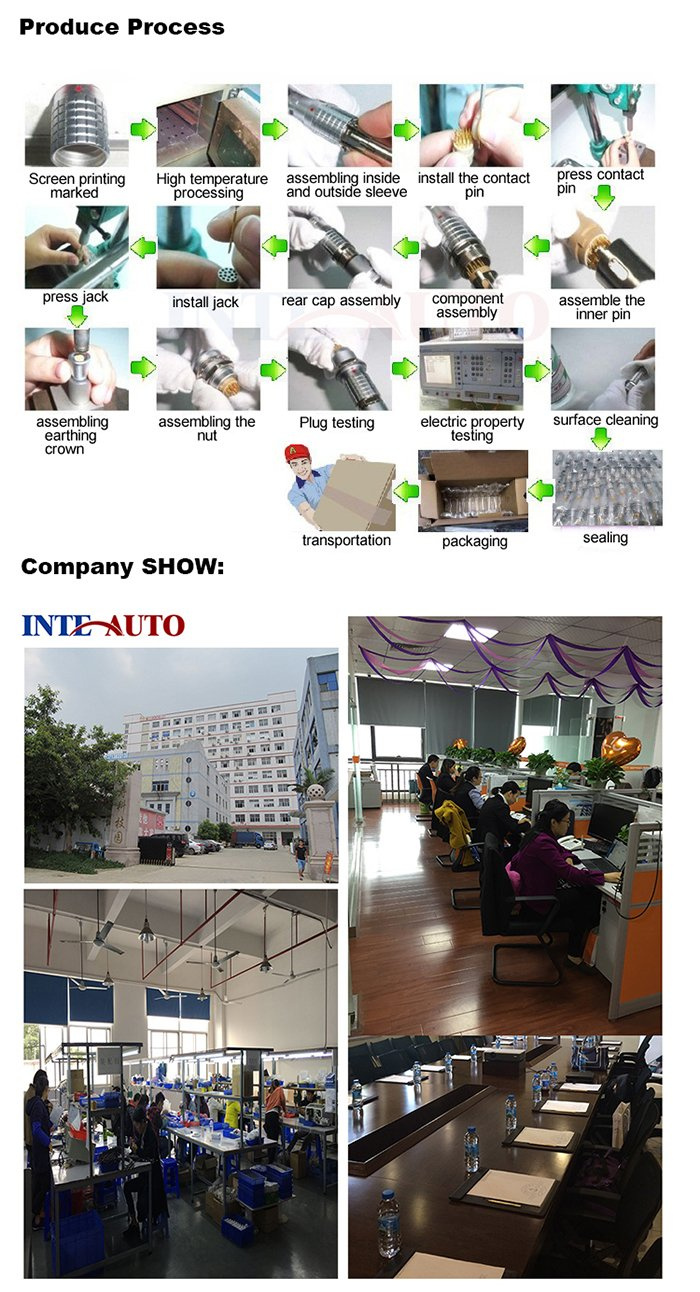

INTE-AUTO is located in ShenZhen China, dedicate to designing, manufacturing and distributing high performance push-pull connectors and cable assembly solutions. With high efficient modern machinery and equipments for tooling & prototyping, cable cutting, soldering, crimping, plastic injection molding, testing and manual assembly lines, We can supply the same quality as original brand connectors and small customised connectors, our products proved reliability in the most demanding environments because of high quality & good durability.
