Lemo Coaxial Circular Push Pull Connector for Audio Video
Price: |
US $ 8-12/Piece |
Min Order: |
10/Piece |
Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
1S series 1 Pins connector
Model(FFA),Series(00…3S).Contacts. Straight Plug, cable collet, and nut for fitting a bend relief;
Model(ERA),Fixed Receptacle,nut fixing;

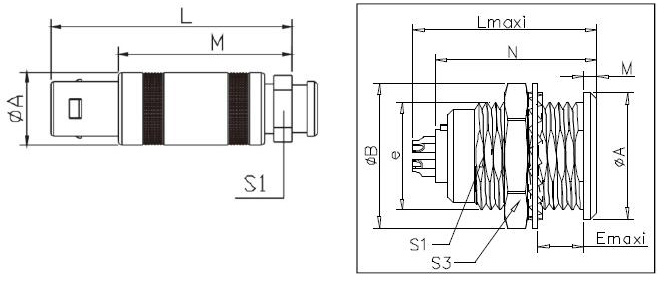

S series connectors have main features as follows:1.Security of the Push-Pull self-latching system 2.Solder or print contacts (straight or elbow)3.Unipole types transmitting current up to 230 A and multipole types with up to 6contacts 4.Polarization by stepped insert (half-moon) fitted with male and female contacts5.60° screening for full EMC shielding. Reference | Dimension |
Model | Series | L | A | M | S2 |
INTFFA | 00S | 26 | 6.4 | 18 | 6 |
INTFFA | 0S | 34.5 | 9 | 24.5 | 7 |
INTFFA | 1S | 42.5 | 12 | 31.5 | 9 |
INTFFA | 2S | 52 | 14.8 | 40 | 12 |
INTFFA | 3S | 61 | 17.8 | 46 | 14 |
Reference | Dimension |
Model | Series | L | A | B | M | E | e | S1 | S3 |
ERA | 00S | 14.5 | 8 | 10.2 | 1.0 | 5.5 | M7*0.5 | 6.3 | 9 |
ERA | 0S | 17.5 | 10 | 12.4 | 1.2 | 7 | M9x0.6 | 8.2 | 11 |
ERA | 1S | 20.2 | 14 | 15.8 | 1.5 | 7.5 | M12x1.0 | 10.5 | 14 |
ERA | 2S | 23.5 | 18 | 19.2 | 1.8 | 8.5 | M15x1.0 | 13.5 | 17 |
ERA | 3S | 27.5 | 22 | 25 | 2 | 11.5 | M18x1.0 | 16.5 | 22 |

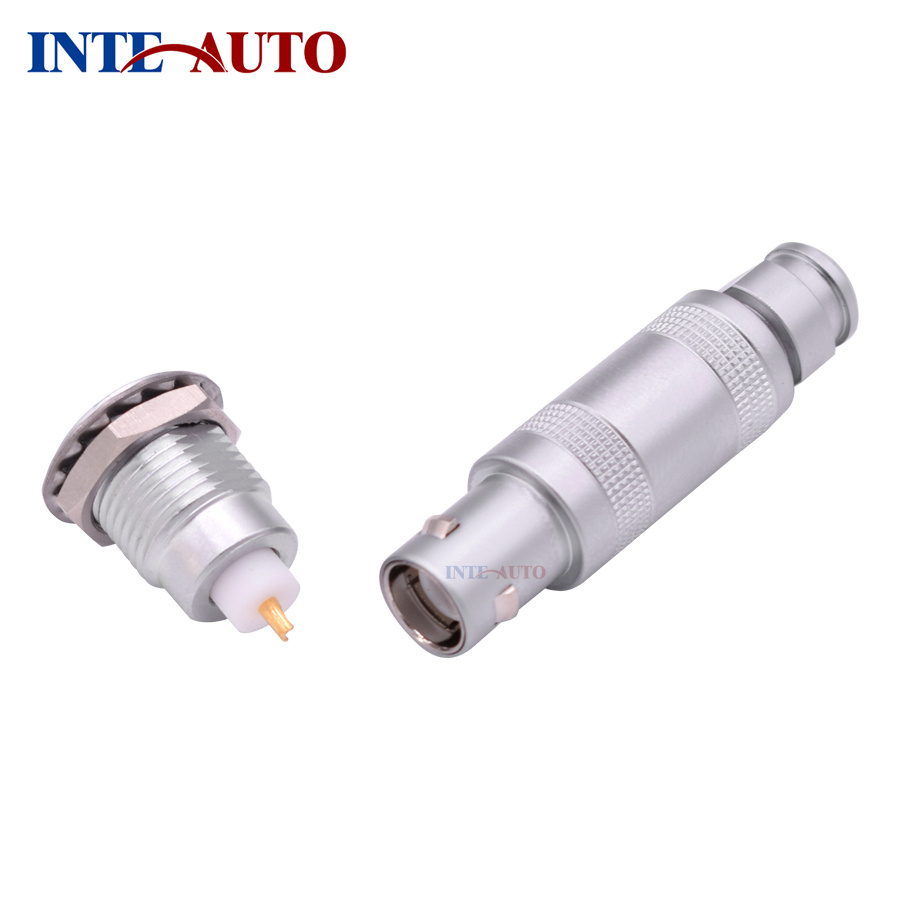

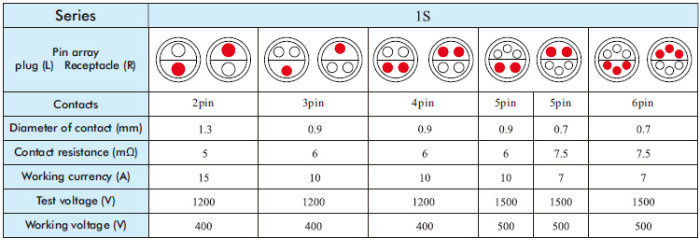

Product Photo Details:Insulator specs for S series:
Technical characteristics:
Mechanical and Climatically
1. Endurance: > 5000 mating cycles;
2. Humidity : up to 95% at 60 ºC;
3. Temperature range: -45 ºC, +125 ºC;
4. .Resistance to vibration : 15 g[10 HZ-2000HZ];
5. Shock resistance: 100 g ,6 MS;
6. Salt spray corrosion test : > 48h;
7. Protection index (mated) : IP 50.Industry Application:
This connector is widely used in test and measurement, industry control, AV system, Broadcast and communication, Audio, Video multimedia and other fields.INTE-AUTO design, manufacture and distribute high performance push-pull connector and cable assembly solutions. Known for their quality and ruggedness, our products prove to be reliable in the most demanding environments. Helping solve the original brand's high cost and long lead time.INTEAUTO Certifications &Contact INFOPLS kindly email us exact models you need, best price & each model specification details will be provided to you soon. Solve the original brand's high cost and long lead time!
Prod Model: |
INT13-FFA. 1S. 275 ERA. 1S. 275 |
IP Degree: |
IP50 |
Insulator Material: |
PTFE |
Number Of Contacts: |
Unipole |
Lead Time: |
Inventory |
Sample: |
Free |
INTE-AUTO is located in ShenZhen China, dedicate to designing, manufacturing and distributing high performance push-pull connectors and cable assembly solutions. With high efficient modern machinery and equipments for tooling & prototyping, cable cutting, soldering, crimping, plastic injection molding, testing and manual assembly lines, We can supply the same quality as original brand connectors and small customised connectors, our products proved reliability in the most demanding environments because of high quality & good durability.
Products Range:
B series-For Test Equipment, Electronic, Electricity, Medical, Car.
K series-For Outdoor Equipment, Military Equipment.
F series-For Military Equipment, Transportation.
S series-For Audio/Video, Microphone.
E series-For Outdoor Equipment.
P series-For Medical Equipment.
SP series-For LED screen
