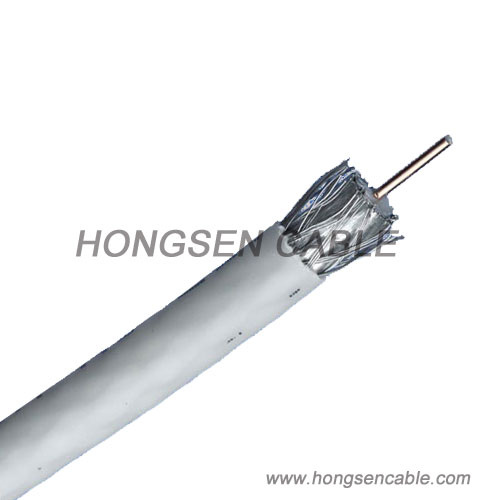

75 Ohm Coaxial Cable (17VATC)

Name: 75 Ohm Coaxial Cable (17VATC)
Brand: all-electronics-online.com
SKU: 300008305
Availability: InStock
Rating: 4.5 (131 reviews)

Price:	Negotiable/Meter
Trade Terms:	FOB,CFR,CIF
Min Order:	30000/Meter
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	17VATC
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Jacket:	CPR, REACH
Application:	RF Cable
Conductor Material:	Copper
Cover Material:	PVC
Certification:	CPR, REACH

Product Description

17VATC/PATC

DESCRIPTION
Conductor: 1.13 CCS
Dielectric: 4.8 mm Foam PE
First Shield: AL/P or AL/P/AL foil
Second Shield:Aluminum wire braid 45% coverage
Jacket: 6.8 mm white PVC / PE

Electrical Characteristics

Impedance (Ω)					75±3
Capacitance (pF/m)					52 ± 2
Velocity of Propagation (%)					85.0
Return Loss (dB)
5-1000 MHz					≥ 22
1000-2000 MHz					≥ 20
Screening Effectiveness (dB)
5-1000 MHz					≥ 70




Attenuation ( @20 ºC)

Frequency (MHz)					Attenuation (dB/100m)
50					3.7
100					5.6
200					8.1
400					11.7
800					17.0
862					17.7
950					18.7
1350					22.8
1750					26.4
2150					29.8

APPLICATION
Used as a distribution cable for indoor CATV systems and as a connection cable for satellite systems where lower attenuation required.

Hangzhou Hongsen Cable Co., Ltd. was established in 2002, a manufacturer specializes in RF & Microwave Coaxial Cables. mainly serving the defense, telecommunications, satellite, test and measurement markets.

Our products cover wireless RF Transmission cable, Mini Coax cable, Semi-Rigid, Semi-Flexible Microwave cable, RG MIL-C-17 Spec Cables, CCTV, CATV/MATV cable, satellite cable, video cable. Besides the standard cable, customer required cables are also available in our company.

Quality Control

Hongsen has developed a comprehensive quality assurance program and quality system. This program and system establishes controls throughout the entire manufacturing cycle -- from raw material purchasing and product manufacturing to end-item delivery. It also assures meeting quality objectives and minimizes the possibility of compromises which could affect product quality and reliability. The quality assurance program is complete and responsive to all requirements of ISO9001: 2000.

Our Mission

We are dedicated to providing our customers competitive price and excellent service.
