| Prod Model: |

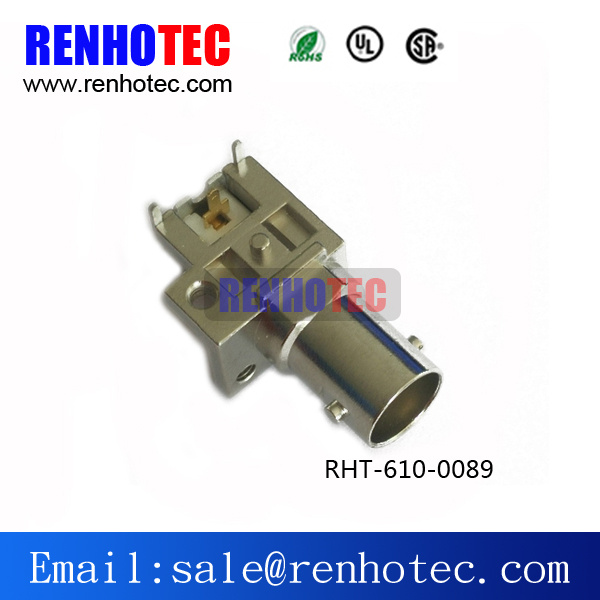

RHT-610 |
| Business Type: |
Manufacturer |
| Impedance: |
75 Ohm |
| Orientation: |
90 Degree |
| Frequency Range: |
DC-4GHz |
| Body Material: |
Brass,Nickel Plating |
| Warranty: |
12 Months |
| Lead Time: |
7-10 Days |
Product Description
BNC connectors are for low power, quick connect/disconnect applications using a bayonet type coupling mechanism and can be interchangeable with the same-type connectors of abroad. They are widely used connect of the RF coaxial-cables in electronic equipment and instuments. Characteristic impedance 50Ω , 75Ω .
Material and finish:
| Shell | Zinc alloy gold plated |
| Contact pin | Brass gold plated |
| Socket | Beryllium gold plated |
| Insulator | PTFE |
| Elastic contact | Beryllium gold plated |
| Crimp ferrule | Copper alloy nickel or gold plated |
| O-ring sealing | 6146 silastic |
Major technical chracterstics:
Impedance: 50/75 Ω Nominal
Frequency Range; 0-4 GHz with low reflection
Voltage Rating: 500 volts peak
Dielectric Withstanding Voltage: 1, 500 volts rms
VSWR: M39012 straight connectors: 1.3 max 0-4 GHz
M39012 right angle connectors: 1.35 max 0-4 GHz
MIL-C-39012 Contact ResistanceCenter contact: 1.5 mΩ ; Outer contact: 0.2 mΩ
MIL-C-39012 Insulation Resistance: 5, 000 MΩ
MIL-C 39012 Braid to Body0.1 milliohm
MIL-C-39012 RF Leakage-55 dB min at 3 GHz
MIL-C-39012 Insertion Loss0.2 dB min at 3 GHz
Applications:
· Antennas
· Automotive
· Cable Modems
· Computers/LANs
· Medical Equipment
· Radios
· Telecom
