8000 Series Aluminum Alloy XLPE Insulation Concentric Cable
| Price: |
US $ 0.12-0.16/Meter |
| Min Order: |
1000/Meter |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
SEU |
| Conductor: |
Stranded Annealed Copper,Aluminum ,8000 Series Alu |
| Jacket: |
XLPE (Cross-Linked Polyethylene), PE, PVC |
| Available Size: |
2/0, 1/0, 2#, 4#, 6#, 8# AWG |
| Type: |
Insulated |
| Conductor Type: |
Stranded |
| Application: |
Overhead |
| Conductor Material: |
Aluminum |
| Insulation Material: |
XLPE |
| Certification: |
VDE |
| Brand: |
Jiapu |
Product Description

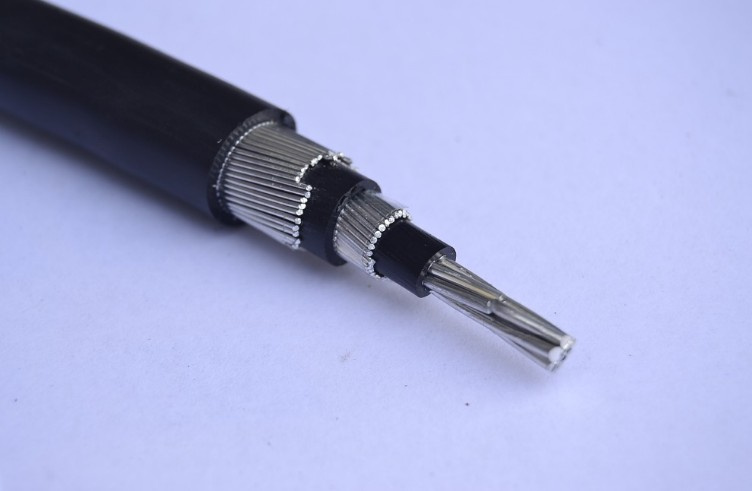

8000 series Aluminum alloy XLPE insulation concentric cable
The AA-8000 aluminum alloy conductor is applied in Type SER/SEU cable. Its insulated core is complied to the requirment of Type XHHW-2 in UL44. Insulation material is cross-linked polyethylene(XLPE) with characteristics of abrasion resistance,moisture proof and heat resisting.Meanwhile the insulation has the flame retardant property,which can meet FT2 level combustion test requirment. The outside of cable core should be wrapped a fibrage tape,both of the insulation wire core and outer sheathed can meet the 720h sunlight resistance requirment.Conductors: Stranded Annealed Copper,Aluminum ,8000 series Aluminum Alloy
Insulation: XLPE (Cross-linked Polyethylene)
Concentric layer: Single layer of plain annealed copper wires, Aluminum ,8000 series Aluminum Alloy
Sheath/Jacket: PE(Polyethylene) or XLPE (Cross-linked Polyethylene)
Voltage: 600/1000v
Operating temperature: Maximum 90°C, minimum -30°C
Common Used Colours:
For insulation: Black, Blue and Red.
For external jacket: Black
Packing:Wooden Drum Or length to the client's requirement.
Available Size: 2/0, 1/0, 2#, 4#, 6#, 8# AWG and other size according to your requested.
Specifications
| ASTM 600/1000v |
Core | AWG | Structure Size (mm) | Copper cable (kg/km) |
| Conductor | Insulation | Concentric conductor | Outer sheath |
| Single wire | XLPE | Single wire | UV-PVC |
| No. | Dia. | Thick | No. | Dia. | Thick | Dia. |
| 1 | 16 | 7 | 0.49 | 1.14 | 39 | 0.321 | 1.14 | 6.82 | 81.46 |
| 1 | 10 | 7 | 0.98 | 1.14 | 34 | 0.511 | 1.14 | 8.67 | 172.04 |
| 1 | 8 | 7 | 1.23 | 1.14 | 25 | 0.643 | 1.14 | 9.68 | 221.58 |
| 1 | 6 | 7 | 1.55 | 1.14 | 25 | 0.813 | 1.14 | 10.98 | 160.50 |
| 1 | 4 | 7 | 1.96 | 1.14 | 27 | 1.020 | 1.14 | 12.62 | 509.26 |
| IEC 60502-1 IEC 60228 600/1000v |
| Size (mm2) | Structure Size mm | Copper cable (kg/km) |
| Concuctor | Insulation | Concentric conductor | Outer sheath |
| Single wire | Dia. | PVC | Single wire | UV-PVC |
| No. | Dia. | Thick | No. | Dia. | Thick | Dia. | (kg/km) |
| 10 | 7 | 1.35 | 4.05 | 1.55 | 20 | 0.85 | 1.4 | 11.79 | 301.55 |
| 16 | 7 | 1.7 | 5.1 | 1.55 | 32 | 0.85 | 1.4 | 12.84 | 431.7 |
| 25 | 7 | 2.14 | 6.42 | 1.6 | 29 | 1.13 | 1.5 | 15.02 | 647.46 |
| Aluminum Cable |
| 16 | 7 | 1.7 | 5.1 | 1.55 | 26 | 1.13 | 1.4 | 13.42 | 244.16 |
| 25 | 7 | 2.14 | 6.42 | 1.6 | 29 | 1.13 | 1.5 | 15.02 | 307.3 |
| 35 | 19 | 1.53 | 7.65 | 1.65 | 27 | 1.35 | 1.6 | 16.99 | 390.15 |
CERTIFICATE
QA&QC

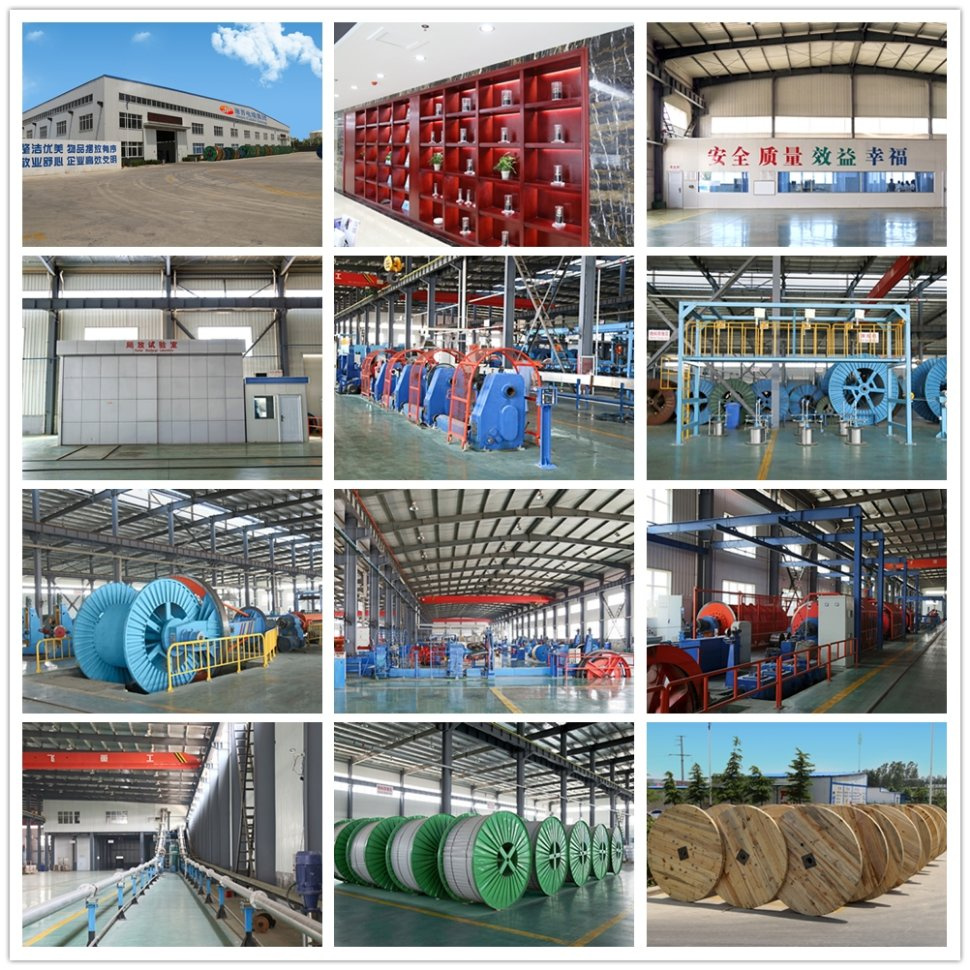

FACTORY VIEW
Henan Jiapu Cable Group is located in Zhengzhou, the capital of Henan province, also politics, culture, economic and transport center. The group has 3 subsidiary companies which specialize in manufacturing and supplying various kinds of wires & cables. With more than 15 years of efforts and development, it has become an influential manufacturer of wires & cables making machinery in China.
The main products are as follows:
Bare Conductor (AAC, AAAC, ACSR, ACAR, AACSR, ACSR/AW)
Aerial Bundled Cable 1kV-35kV (ABC Cable)
PVC Insulated (Flexible ) Wire and PVC Insulated and Sheathed (Armoured) Power Cable
Low, Medium, High Voltage (1kV-220kV) XLPE Insulated (Armoured) Power Cable
Welding Cable, Control Cable, Rubber Sheathed Cable
Fiber Optic Cable (OPGW, ADSS, etc. )
Fittings and Accessories (Suspension set, tension set, insulators, vibration dampers, joint box, terminal set, lightning arrester, etc. )
We can design and manufacture wires & cables according to the standards of GB, JB, IEC, BS, DIN, ASTM, JIS, NF, AS/NZS, CSA, etc. Our products have been widely supplied to power utilities, electrical materials distributors and dealers, construction and engineering firms, electrical contractors or industrial companies all over the world, as well as Africa, Middle East, South-east Asia, South America, Central America, North America, Europe, Australia and so on. Welcome your OEM and ODM orders.
We are working hard all the time to improve the production lines, develop new products, focus on customer's needs, and try our best to offer the best professional services, strive to meet the customers' needs. We pursue the aim of "quality, reputation and service first" and adhere to the trade principals of "equality and mutual benefits". We win the trust of domestic customers and customers of different countries. We will take the enterprise spirit of "Unity and Striving, Reality and Innovating, Pioneering and Progressing, Honesty and Being Law-abiding". And we will cordially cooperate with friends of various circles both at home and abroad with a new gesture.
