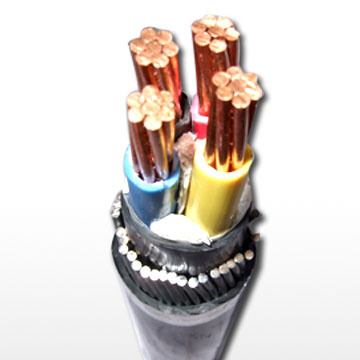

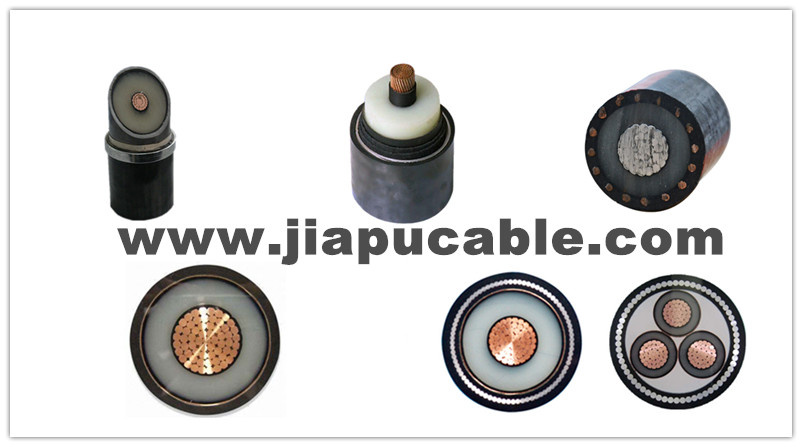

NYY Type PVC insulated power cableThis series includes:
Copper (aluminum) core, PVC insulated and sheathed power cables
Copper (aluminum) core, PVC insulated, PE sheathed power cables
Copper (aluminum) core, PVC insulated, steel tape armoring PVC sheathed power cables
Copper (aluminum) core, PVC insulated, steel tape armoring, PE sheathed power cables
Copper (aluminum) core, PVC insulated, steel wire armoring, PVC sheathed power cables
Copper (aluminum) core, PVC insulated, steel wire armoring, PE sheathed power cables
This series is mainly laid indoor, cable slot, direct burial, channel, mining well and water condition. This series has the following characteristics: The max. Rated temperature of the conductor is 70 degree. The max. Temperature of the conductor of the cables cannot exceed 160 degrees.
The cables can be laid without the limit of fall with enough mechanical pull, but the single core cable cannot be laid in iron tube or cannot be fixed by circled iron tools around the cables.
The laying temperature of cables should not be lower than 0 degree, When the ambient temperature is under 0 degree, the cables should be heated up to 0 degree higher with certain methods.
Rated voltage: 0.6/1kV, 3.6/6kV* Number of cores: 1-6
Standarded: IEC, BS, DIN, GB, any standard
Remarks: Including products for flame retardant, fire resistant and termite-proof

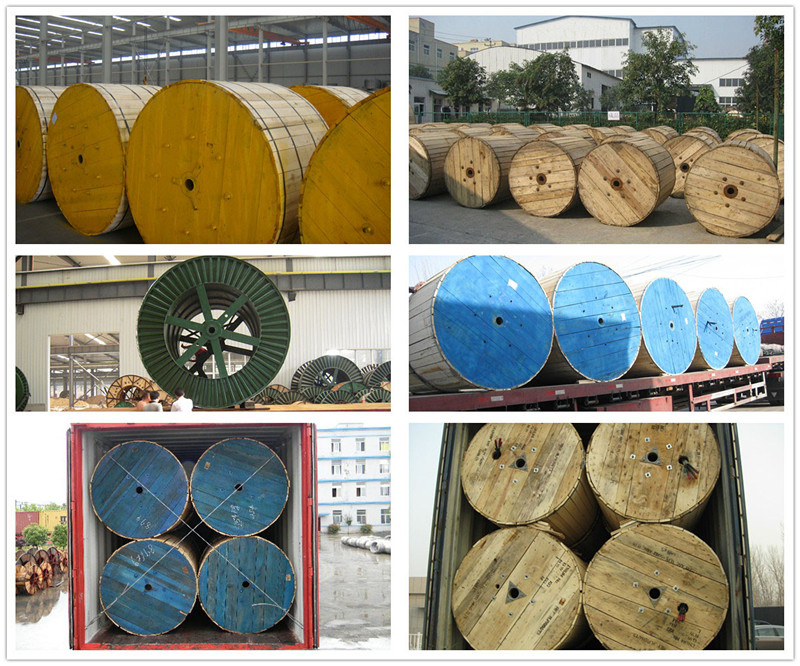

Packing: Wooden drum, steel wooden drum
| 1)600/1000V, Single Core, Circular Compacted Al or Cu/PVC/PVC Unarmoured or Armoured Power Cable |
| Cross Section of Conductor | No. of Wires | Thickness of Insulation | Unarmoured | Armoured |
| Thickness of Sheath | Overall Dia. | Approx. Net Weight | Thickness of Bedding | Thickness of Al Tape | Thickness of Sheath | Overall Dia. | Approx. Net Weight |
| Al Conductor | Cu Conductor | Al Conductor | Cu Conductor |
| mm 2 | - | mm | mm | mm | kg/km | kg/km | mm | mm | mm | mm | kg/km | kg/km |
| 1.5 | 1 | 0.8 | 1.4 | 5.8 | - | 51 | - | - | - | - | - | - |
| 2.5 | 1 | 0.8 | 1.4 | 6.2 | - | 64 | - | - | - | - | - | - |
| 4 | 1 | 1 | 1.4 | 7.1 | - | 88 | - | - | - | - | - | - |
| 6 | 7 | 1 | 1.4 | 7.8 | 78 | 114 | - | - | - | - | - | - |
| 10 | 7 | 1 | 1.4 | 8.6 | 96 | 159 | 1 | 0.5 | 1.8 | 13.4 | 234 | 295 |
| 16 | 7 | 1 | 1.4 | 9.6 | 123 | 222 | 1 | 0.5 | 1.8 | 14.4 | 274 | 370 |
| 25 | 7 | 1.2 | 1.4 | 11.2 | 172 | 328 | 1 | 0.5 | 1.8 | 16 | 344 | 496 |
| 35 | 7 | 1.2 | 1.4 | 12.2 | 209 | 428 | 1 | 0.5 | 1.8 | 17 | 393 | 606 |
| 50 | 19 | 1.4 | 1.4 | 13.9 | 271 | 565 | 1 | 0.5 | 1.8 | 18.7 | 478 | 764 |
| 70 | 19 | 1.4 | 1.5 | 15.9 | 356 | 818 | 1 | 0.5 | 1.8 | 20.5 | 582 | 1020 |
| 95 | 19 | 1.6 | 1.5 | 18 | 471 | 1041 | 1 | 0.5 | 1.8 | 22.6 | 717 | 1291 |
| 120 | 37 | 1.6 | 1.6 | 19.6 | 563 | 1307 | 1 | 0.5 | 1.8 | 24 | 822 | 1545 |
| 150 | 37 | 1.8 | 1.6 | 21.3 | 684 | 1592 | 1 | 0.5 | 1.8 | 25.4 | 952 | 1857 |
| 185 | 37 | 2 | 1.7 | 23.9 | 840 | 1985 | 1 | 0.5 | 1.8 | 27.9 | 1136 | 2236 |
| 240 | 61 | 2.2 | 1.8 | 27 | 1071 | 2533 | 1 | 0.5 | 1.9 | 31 | 1404 | 2877 |
| 300 | 61 | 2.4 | 1.9 | 29.6 | 1317 | 3162 | 1.2 | 0.5 | 2.1 | 34.3 | 1722 | 3551 |
| 400 | 61 | 2.6 | 2 | 33.2 | 1666 | 4120 | 1.2 | 0.5 | 2.2 | 37.6 | 2114 | 4488 |
| 500 | 61 | 2.8 | 2.2 | 37.5 | 2089 | 5163 | 1.2 | 0.5 | 2.3 | 42.1 | 2592 | 5683 |
| 630 | 61 | 2.8 | 2.3 | 41.2 | 2581 | 6447 | 1.4 | 0.5 | 2.4 | 46.3 | 3184 | 7060 |
| 2)600/1000V, Multi Cores, Sectoral Compacted Al or Cu/PVC/PVC Unarmoured Power Cable |
| Number of Cores | Cross-Section of Conductor | No. Of Wires | Thickness of Insulation | Thickness of Sheath | Overall Diameter | Approx. Net Weight | | | |
| Al Conductor | Cu Conductor | | | |
| - | mm 2 | - | mm | mm | mm | kg/km | kg/km | | | |
| Three Cores | 3x35 | 16 | 1.2 | 1.8 | 21.9 | 601 | 1280 | | | |
| 3x50 | 18 | 1.4 | 1.8 | 26.5 | 829 | 1732 | | | |
| 3x70 | 18 | 1.4 | 1.9 | 29.2 | 1067 | 2367 | | | |
| 3x95 | 36 | 1.6 | 2 | 32.9 | 1409 | 2317 | | | |
| 3x120 | 36 | 1.6 | 2.1 | 36.2 | 1705 | 3983 | | | |
| 3x150 | 36 | 1.8 | 2.2 | 38.8 | 2045 | 4872 | | | |
| 3x185 | 36 | 2 | 2.4 | 44.8 | 2596 | 6077 | | | |
| 3x240 | 60 | 2.2 | 2.6 | 51.5 | 3353 | 7953 | | | |
| 3x300 | 60 | 2.4 | 2.7 | 54.9 | 6069 | 9820 | | | |
| Four Cores with Reduced Neutral | 3x35+16 | 716 | 1.2-1 | 1.8 | 25.5 | 764 | 1107 | | | |
| 3x50+25 | 18-16 | 1.4-1.2 | 1.9 | 28.7 | 982 | 1410 | | | |
| 3x70+35 | 18-16 | 1.4-1.2 | 2 | 32 | 1278 | 1733 | | | |
| 3x95+50 | 36-18 | 1.6-1.4 | 2.2 | 37.8 | 1711 | 2656 | | | |
| 3x120+70 | 36-18 | 1.6-1.4 | 2.3 | 40.5 | 2065 | 3137 | | | |
| 3x150+70 | 36-18 | 1.8-1.4 | 2.4 | 44.8 | 2480 | 3660 | | | |
| 3x185+95 | 36-36 | 2-1.6 | 2.6 | 49.7 | 3086 | 4345 | | | |
| 3x240+120 | 60-36 | 2.2-1.6 | 2.8 | 56 | 3894 | 5441 | | | |
| 3x300+150 | 60-36 | 1.4-1.8 | 2.9 | 60.3 | 4834 | 6494 | | | |
| Four Cores | 4x25 | 16 | 1.2 | 1.8 | 22.5 | 644 | 1286 | | | |
| 4x35 | 16 | 1.2 | 1.8 | 24.6 | 799 | 1696 | | | |
| 4x50 | 18 | 1.4 | 1.8 | 28.6 | 1071 | 2275 | | | |
| 4x70 | 18 | 1.4 | 2 | 31.6 | 1387 | 3120 | | | |
| 4x95 | 36 | 1.6 | 2.1 | 35.9 | 1850 | 4262 | | | |
| 4x120 | 36 | 1.6 | 2.2 | 38.8 | 2209 | 5247 | | | |
| 4x150 | 36 | 1.8 | 2.3 | 43.1 | 2714 | 6483 | | | |
| 4x185 | 36 | 2 | 2.5 | 48.7 | 3403 | 8045 | | | |
| 4x240 | 60 | 2.2 | 2.7 | 53.6 | 4290 | 10422 | | | |
| 4x300 | 60 | 2.4 | 2.9 | 58.8 | 5302 | 12969 | | | |
| 3)600/1000V, Multi Cores, Circular Compacted Al or Cu/PVC/PVC Unarmoured Power Cable | | | |
| Number of Cores | Cross-Section of Conductor | No. Of Wires | Thickness of Insulation | Thickness of Sheath | Overall Diameter | Approx. Net Weight | | | | |
| Al Conductor | Cu Conductor | | | | |
| - | mm 2 | - | mm | mm | mm | kg/km | kg/km | | | | |
| Three Cores | 3x10 | 7 | 1 | 1.8 | 16.6 | 281 | 465 | | | | |
| 3x16 | 7 | 1 | 1.8 | 18.7 | 387 | 679 | | | | |
| 3x25 | 7 | 1.2 | 1.8 | 22.2 | 536 | 996 | | | | |
| 3x35 | 7 | 1.2 | 1.8 | 24.4 | 665 | 1311 | | | | |
| 3x50 | 19 | 1.4 | 1.9 | 28.1 | 863 | 1729 | | | | |
| 3x70 | 19 | 1.4 | 2 | 32.3 | 1153 | 2480 | | | | |
| 3x95 | 19 | 1.6 | 2.1 | 37.1 | 1563 | 3301 | | | | |
| 3x120 | 37 | 1.6 | 2.3 | 40.4 | 1850 | 4040 | | | | |
| 3x150 | 37 | 1.8 | 2.4 | 43.9 | 2258 | 5000 | | | | |
| 3x185 | 37 | 2 | 2.5 | 49.2 | 2819 | 6151 | | | | |
| 3x240 | 61 | 2.2 | 2.8 | 55.9 | 3577 | 8040 | | | | |
| 3x300 | 61 | 2.4 | 3 | 62.1 | 4413 | 9955 | | | | |
| 3x400 | 61 | 2.6 | 3.2 | 69.3 | 5512 | 12705 | | | | |
| Four Cores | 4x10 | 7 | 1 | 1.8 | 18.1 | 343 | 589 | | | | |
| 4x16 | 7 | 1 | 1.8 | 20.5 | 487 | 874 | | | | |
| 4x25 | 7 | 1.2 | 1.8 | 24.3 | 677 | 1291 | | | | |
| 4x35 | 7 | 1.2 | 1.8 | 26.8 | 821 | 1681 | | | | |
| 4x50 | 19 | 1.4 | 2 | 31.2 | 1118 | 2273 | | | | |
| 4x70 | 19 | 1.4 | 2.1 | 35.8 | 1494 | 3264 | | | | |
| 4x95 | 19 | 1.6 | 2.3 | 41.2 | 1993 | 4312 | | | | |
| 4x120 | 37 | 1.6 | 2.4 | 44.8 | 2370 | 5291 | | | | |
| 4x150 | 37 | 1.8 | 2.5 | 48.7 | 2959 | 6615 | | | | |
| 4x185 | 37 | 2 | 2.7 | 54.7 | 3601 | 8044 | | | | |
| 4x240 | 61 | 2.2 | 3 | 62.1 | 4596 | 10547 | | | | |
| 4x300 | 61 | 2.4 | 3.2 | 69.1 | 5614 | 13004 | | | | |
