80A 3phase Capacitor Switching Contactor AC 400V Auxiliary Contacts

Name: 80A 3phase Capacitor Switching Contactor AC 400V Auxiliary Contacts
Brand: all-electronics-online.com
SKU: 792595505
Availability: InStock
Rating: 4.5 (126 reviews)

Price:	US $ 25.42-27.76/Piece
Min Order:	10/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	CJ19-80
Export Market:	Global

Product Description

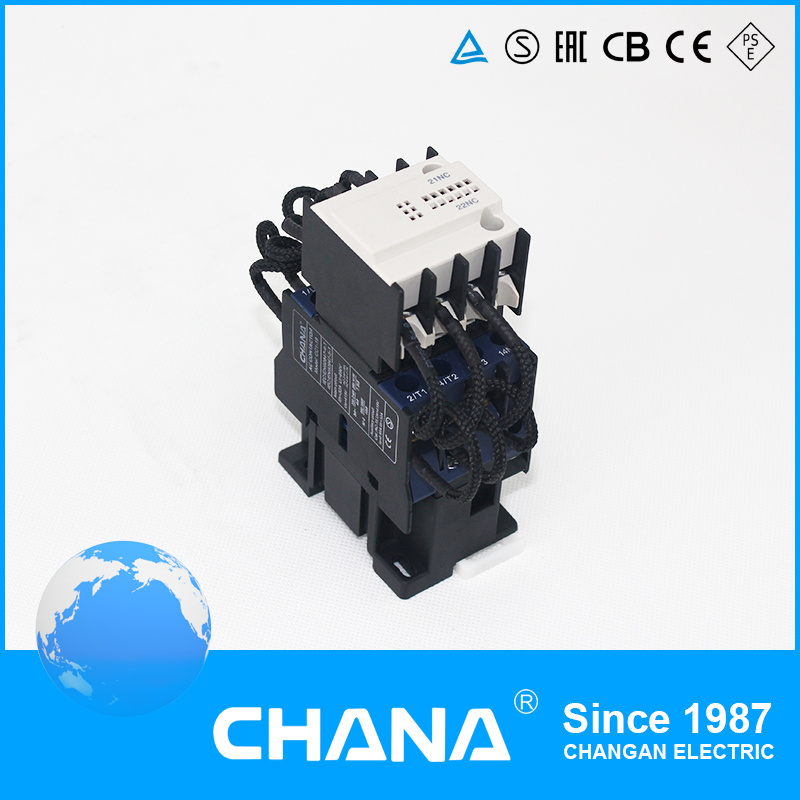

CJ19 Capacitor Switching Contactor

1. Description

Remote making & breaking circuits; Protect circuit
From over-load when assembling with thermal over-load relay;
Frequent start-up and control of AC contactor;
Contactor Electric ratings: AC50/60Hz, 690V, up to 95A;
Utilization category: AC-3, AC-4;
Altitude: ≤ 2000m;
Ambient temperature: -5º C~+40º C;
Mounting category: III;
Mounting conditions: Inclination between the mounting plane
And the vertical plane should not exceed ± 5° ;
The Standard for the AC Contactor: IEC/EN 60947-4-1. IEC/EN 60947-5-1.

TYpe		CJ19-25	CJ19-32	CJ19-43	CJ19-63	CJ19-80	CJ19-95
Rated Conventional Heating Current	Ith(A)	25	32	43	63	80	95
Rated Work Current	415V/le(A)	18	25	32	60	80	95
Capacitor Controlled	220/230V	6	9	10	15	18	22
Capacitor Controlled	380/400V	12	18	20	30	36	40
Rated Insulation Voltage	Ui(V)	690	690	690	690	690	690
Rated Operation Voltage Electrial Life(x10³)	Ue(V)	400	400	400	400	400	400
Rated Operation Voltage Electrial Life(x10³)	Times	120	120	120	100	100	100
Mechanical Life (x10³)	Times	3000	3000	3000	3000	3000	3000
Restrained Suege Capacity	x le	15
Auxiliary Contactor	Ith=10A	AC-15 360VA; DC-13 33W
Auxiliary Contactor	Control Capacity	AC-15 360VA; DC-13 33W

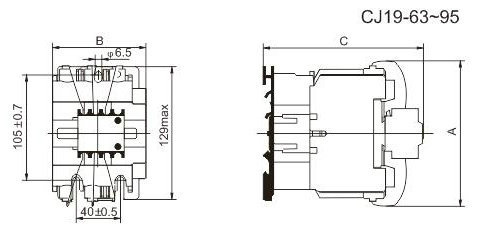

2. Overall and Mounting Dimension(mm)

Model	A max	B max	C max	Note
CJ19-80	135	87	158	Fixed by screws and fixed with 35/75mm din rail

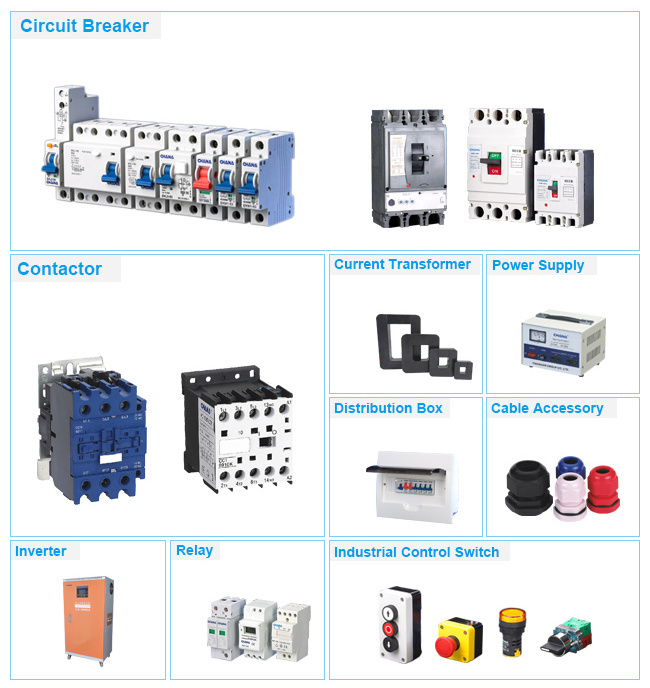

3. Feature Product

4. About Us

Established in 1987, CHANGAN is a large national enterprise, located in China Electric Appliance Capital- Liushi. Taking the industrial electric appliance as the leading sector, Integrating the R&D, information, trade, services, manufacture and sale of high and low voltage electrical apparatus, Instrument and Meter, Power Supply Equipment, Power Distribution Cabinet and Electric product for building and construction.

As core company, CHANGAN GROUP CO., LTD. is mainly engaged in
MCB, RCCB, RCBO, MCCB, CONTACTOR, THERMAL RELAY, SPD, MPS, STARTER,
STABLIZER, PUSH BUTTON SWITCH, INDICATOR, TERMINAL, CABLE ACCESSORIES etc. Company own over 2000 employees, 116000 square meter construction area, registered capital totalizing to 0.10518 billion RMB, it has established over 500 sales branches throughout the whole country.

Certificate:ISO9001,ISO14001,OHSAS18001,CCC,SEMKO,CE,CB,TUV,EAC,TSE.Products are sold to UK, France, Russia, Turkey, German, Brazil, Argentina, South Africa, Egypt, Iran and other 60 countries and areas.

Established in 1987, CHANGAN GROUP Co., Ltd. Has been acknowledged as one of the most respected nation-wide manufacturers and exporters of low-voltage electrical apparatus in P. R. China.

Comprising more than 62 factories with over 2500 employees and the whole corporation occupies 82000m2 ground during past 27 years.

We manufacture and export varieties of low voltage electrical appliance including all kinds of CIRCUIT BREAKER, CONTACTOR, RELAY, SWITCH, SOLAR INVERTER etc.

All of our production procedures strictly follow ISO9001, ISO14001 and OHSAS18001, most of our products are certified such as SEMKO, TUV, CB and CE which can prove our guarantee quality and our products also have been chosen as "Chinese FAMOUS BRAND PRODUCT".

We not only make efforts in developing our own products with "CHANA"brand but also provide OEM services. Hope to establish good business relationships with your esteemed company in near future.
