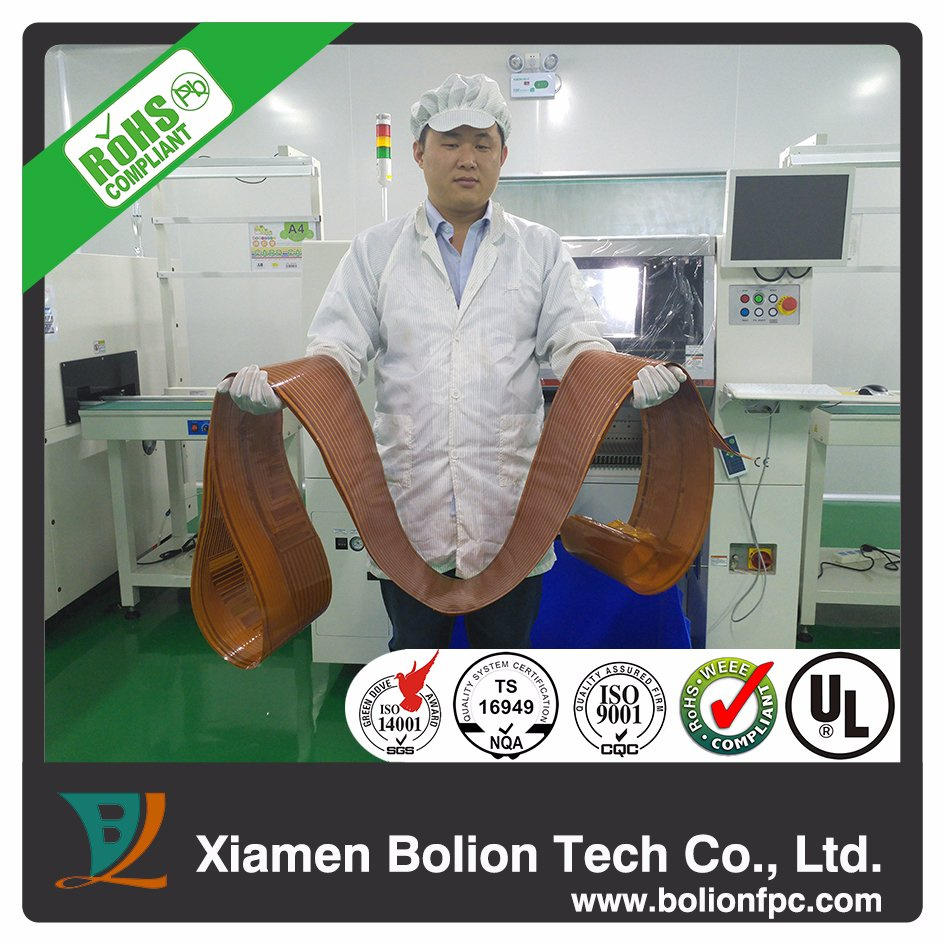

Fast Turn Prototypes, ISO 13485 / Ts 16949/ ULType: Long Flex PCB
Layer: 1L
Dimension: 10000mm*250mm
Line Width/Space: 0.1mm/0.1mm
Material: 35um Cu/25um ADH/25um PI
Coverlay: 35um PI/35um ADH/yellow color
Surface: ENIG (Au: 0.05~0.1um, Ni: 3~9um)
Outline Tolerance: +/-0.2
Coverlay Tolerance: +/-0.3
General Tolerance: +/-0.2
About us:
Xiamen Bolion Circuit Co., Ltd. Is established in Jan. 23, 2003. It owes 24, 000 sq. M of clean plant area, most advanced FPC manufacturing equipments and testing instruments. The monthly capacity is 16, 000sq. M of high-qualified Single-sided, Double-sided, Dual-access, Multilayer, Air-gap FPCs and Rigid-Flex PCBs, which are widely used in aerospace, automotive, medical devices, industrial control, consumer electronics, etc.
We a permanent member of CPCA (China Printed Circuit Association), a High and New Tech Enterprise of Xiamen City, one of Chinese top 100 PCB enterprises, one of Chinese top 10 innovative electronic components enterprises and won "national brand enterprises" in PCB China. We have passed ISO9001, TS16949, ISO14001 certificates. Series FPC and Rigid-flex boards are UL certificated and meet RoHS & WEEE environmental requirement (tested by SGS). Through good quality and best service, we enjoy good reputation in FPC field
We advocate "Integrity, Innovation, Harmony, Win-Win" enterprise spirits. With professional skills, advanced equipments, strict quality control, scientific management, reasonable prices and Law-abiding integrity of management ideal, we are dedicating to provide high-quality products and prompt service for customers.
Welcome to visit us and enjoy the success in business.
1. Over 10 years'manufacturing experience focus on flexible circuit industry area.
2. Assembly provided.
3. 100% quality tested before shipment.
4. Certificate of UL, ISO9001, ISO14001 and ISO/TS16949.
5. Our Products meet the RoHS & WEEE lead-free requirement.
6. Small Order accepted.
7. 3 weeks for massive production; 10 days for sample since material prepared
Urgent case or spread delivery schedule will be updated per negociation then
| Main Technique Index |
| Description | Parameters |
| Polyimide | Polyester |
| Base film Thickness (um) | 12.5,25,35,50 | 12.5,25,35,50 |
| Copper Thickness (um) | 12,17.5,35,50,70,105 |
| Min. Line Width/Line Space (mm) | 0.075/0.075 |
| Min. Hole Size (mm) | 0.15 |
| Tolerance (mm) | Outline:+/-0.05; Coverlay: +/-0.2 |
| Peel Strength (kgf/cm) | Above 1.0 | Above 0.8 |
| Solder Resistance | 260C 10 seconds | 204C 5 seconds |
|
|
|
| Surface Treatment |
| Content | Normal coating thickness | Normal PNL size |
| Plating nickel gold (In house) | Ni:2-9um;Au:0.03-0.09um | 300mm×400 MM |
| Plating hard gold (In house) | Ni:2-9um;Au:0.1-1.0um | 300mm×400 MM |
| Plating soft gold (In house) | Ni:2-9um;Au:0.03-0.09um | 300mm×400 MM |
| Plating pure tin (In house) | 2.0-8.0um | 300mm×400 MM |
| Immersion Tin (In house) | 0.3-0.6um | 300mm×400 MM |
| OSP (In house) | N/A | 300mm×400 MM |
| ENIG (Hard Nickel) (In house) | Ni:2-6um;Au:0.03-0.10um | 300mm×400 MM |
| ENIG (Soft Nickel) (In house) | Ni:2-6um;Au:0.03-0.10um | 300mm×400 MM |
| ENEPIG (Hard Nickel) (In house) | Ni:2-6um;Au:0.03-0.10um | 300mm×400 MM |
| HASL (Outsource) | Cover the pads with min thickness 1~2 um | 300mm×400 MM |
| Immersion silver (Outsource) | Per standand creteria | 300mm×400 MM |
Xiamen Bolion Ciruit Co., Ltd is an expert manufacturer that specializes in flexible Circuit boards & Rigid-Flex PCB based in China since 2003.
All of our facilities are ISO 9001, ISO 13485(Medical decices), ISO 14001, TS 16949(Automotive) RoHS, and UL(E228871) certified. This investment into equipment and training has transformed Bolion into a global supplier of Ultra-High Quality flexible and rigid-flex boards.
The key markets we serve are primary located in North America and Europe include Top 500 companies in the Medical, Automotive, Wearable, and CM/EMS industries.
Bolion Tech major in High-mix Low volume production, provide quality, cost-effective solution, on time for our customers.
Quick lead-times:
-Single layer Flex: 2~5 days
-Double layer Flex: 2~5 days
-Multi-layer Flex(Max. 12 layers): 4~8 days
-Rigid Flex: 5~8 days
Bolion's commitment to you is that we will strive to become a full member of your engineering and manufacturing team focused on delivering you high quality products and service, on time, while achieving your stated technical and cost goals.
Bolion Business extends: With more than 13 years developing, Bolion now add in house SMT line, devoted to provide one-step service for our customers.
If you are interested in finding an FPC/Rigid-Flex PCB and SMT supplier in China, please freely contact us, I do believe Bolion will be your good choice.
