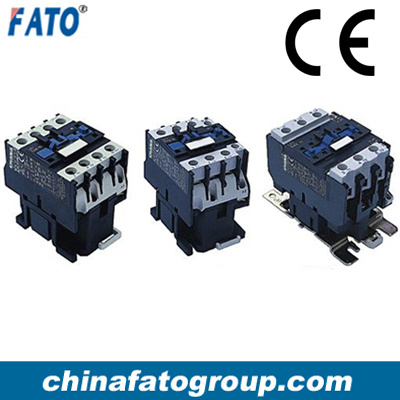

AC Contactor LC1-D(CJX2-D)
| Price: |
Negotiable/Piece |
| Trade Terms: |
By sea or air |
| Min Order: |
100/Piece |
| Pay Type: |
L/C,T/T,D/P |
Product Description:We produce all kinds of low voltage products including contactors,thermal overload relay,Circuit Breaker,mangnetic starter and so on.LC1-D series AC contactor is suitable for using in the circuit up to the Rated voltage 660V AC 50Hz, Rated current up to 95A, for making, breaking, frequently starting & controlling the AC motor. Combined with the auxiliary contact block, air delayer & machine interlocking device etc, it becomes the delay contactor, mechanical interlocking contactor, star delta starter. With the thermal relay, it is combined into the electromagnetic starter. The contactor is produced according to IEC 159-1, VDE0660 & BS5452.| Type | CJX2-09 (LC1-D09) | CJX2-12 (LC1-D12) | CJX2-18 (LC1-D18) | CJX2-25 (LC1-D25) | CJX2-32 (LC1-D32) | CJX2-40 (LC1-D40) | CJX2-50 (LC1-D50) | CJX2-65 (LC1-D65) | CJX2-80 (LC1-D80) | CJX2-95 (LC1-D95) |
| Rated working current (A) | AC3 | 9 | 12 | 18 | 25 | 32 | 40 | 50 | 65 | 80 | 95 |
| AC4 | 3.5 | 5 | 7.7 | 8.5 | 12 | 18.5 | 24 | 28 | 37 | 44 |
| AC3 capacity of three-phase squirrel-cage motor AC3(kW) | 220/230V | 2.2 | 3 | 4 | 5.5 | 7.5 | 11 | 15 | 18.5 | 22 | 25 |
| 380/400V | 4 | 5.5 | 7.5 | 11 | 15 | 18.5 | 22 | 30 | 37 | 45 |
| 415V | 4 | 5.5 | 9 | 11 | 15 | 22 | 25 | 37 | 45 | 45 |
| 440V | 4 | 5.5 | 9 | 11 | 15 | 22 | 30 | 37 | 45 | 45 |
| 500V | 5.5 | 7.5 | 10 | 15 | 18.5 | 22 | 30 | 37 | 55 | 55 |
| 660/690V | 5.5 | 7.5 | 10 | 15 | 18.5 | 30 | 33 | 37 | 45 | 45 |
| Rated heat current (A) | 20 | 20 | 32 | 40 | 50 | 60 | 80 | 80 | 125 | 125 |
| Electrical life | AC4X104 | 20 | 20-15 | 20-7 | 15-7 | 15-7 | 10-7 | 7 | 7-6 | 7-5 | 7-5 |
| AC3X106 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 1.6 | 1.6 | 1.6 |
| Mechanical lifeX106 | 20 | 20 | 20 | 20 | 20 | 20 | 50 | 20 | 10 | 10 |
| Number of the contact | 3P+NO | 3P+NC+NO |
| 3P+NC |
Why do you choose us?- FATO group founded in 1986, is one of the most respected nationwide manufactures and exporters of low voltage, complete electrical apparatus, instrument, transformers etc.
- FATO group has more than 20 holding companies, more than 600 sales companies and more than 20 overseas sales agents.
- FATO group has more than 2800 staff, more than 18000 M² production area.
- Our products have passed through the domestic and foreign authentications ISO9001, ISO14001, OHSAS18000, CCC, CB, CE, SEMKO, KEMA, TUV, UL, RoHS, and so on..
| Prod Model: |
LC1-D(CJX2-D) |
Founded in 1987, Huatong (FATO) Group Co., Ltd. is being acknowledged as one of the most respected nationwide manufactures and exporters of low voltage electrical apparatus in P. R of China. The Group, comprising more than 60 factories, owns a production area of 150, 000M2 and employs more than 2, 000 employees. During the past 18 years, the Group has invested heavily in both research and development and employee training programs, resulting in a wide range of products that meet the most rigorous requirements of international organizations such as CCC, CE, UL, BS, and ISO14001 etc. In 2001 Vouching Technical Inspection Ltd. As an ISO9001 recognized us: 2000 certified enterprise. In 2004 we were recognized as ISO14001 certified enterprise.
Currently, we manufacture and export more than 80 varieties of products, with over 1000 types of low voltage electrical apparatus including all kinds of Circuit breakers, Contactors, Relays, Starters, Switches, Panel meters, Fuses, Mechanical instruments and Electrical accessories etc. And we have already established great business relationship with renowned customers in South East Asia, Middle East, South America, Africa and EEC.
We are fully aware of the fact that only "Versatile Staff, Distinctive Quality and Advanced Technology" can help us survive and succeed in today's highly competitive market. Hence, we guarantee high quality of all our products, because they all have undergone strict quality control and meet high standards.
