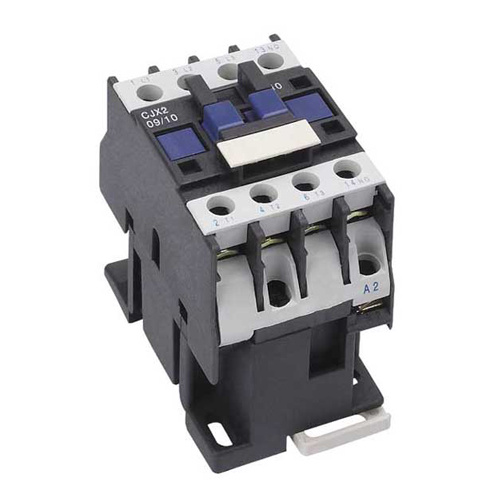

AC Contactor LC1-D

Name: AC Contactor LC1-D
Brand: all-electronics-online.com
SKU: 793902465
Availability: InStock
Rating: 4.7 (42 reviews)

Price:	Negotiable/Piece
Min Order:	200/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Product Description
Hot Sale 3 Pole LC1d Magnetic AC Contactor
LC1D types of AC contactor

APPLICATION
-----------------------------------------------------------------------------------------------------------------------------------------------
LC1-D09 AC Contactor is suitable for using in the circuits up to the rated voltage 660v,AC 50hz or 60hz,rated current up to 95A,for making ,breaking frequently starting &machine-interlocking device etc,it becomes the dalay contactor,mechanical interlocking contactor,star-delta starter.with the thermal relay,it is combined into the electromagnetic starter.The contactor is produced according to IEC947-2,VDE0660&BS5442

SPECIFICATION
-----------------------------------------------------------------------------------------------------------------------------------------------

Product name		LC1-D0910 9A CE AC electrical AC contactor good quality contactor 50/60HZ ac coil contactor
Type		LC1-D09	LC1-D12	LC1-D18	LC1-D25	LC1-D32	LC1-D40	LC1-D50	LC1-D65	LC1-D80	LC1-D95
Rated working current (A)	AC3	9	12	18	25	32	40	50	65	80	95
Rated working current (A)	AC4	3.5	5	7.7	8.5	12	18.5	24	28	37	44
Standardpower ratings of 3 phase motors 50/60Hz incategory AC-3	220/230V	2.2	3	4	5.5	7.5	11	15	18.5	22	25
	380/400V	4	5.5	7.5	11	15	18.5	22	30	37	45
	415V	4	5.5	9	11	15	22	25	37	45	45
	500V	5.5	7.5	10	15	18.5	22	30	37	55	55
	660/690V	5.5	7.5	10	15	18.5	30	33	37	45	55
Rated heat current (A)		20	20	32	40	50	60	80	80	125	125
Electrical life	AC3 (x104)	100	100	100	100	80	80	60	60	60	60
Electrical life	AC4 (x104)	20	20	20	20	20	15	15	15	10	10
Mechanical life (x104)		1000	1000	1000	1000	800	800	800	800	600	600
Number of the contacts	3P+NO					3P+NC+NO
Number of the contacts	3P+NC					3P+NC+NO

Standard Control Circuit Voltage
-----------------------------------------------------------------------------------------------------------------------------------------------

Volts

110

220

230

240

380

400

415

440

500

600

50Hz

60Hz

50/60Hz

Prod Model:	LC1-D

Yueqing Geshiman Electric, which specializes in manufacturing series of circuit breakers, is a scientific enterprise integrating with scientific research, manufacture, processing and trading business.

The main products in our company are Miniature Circuit Breaker, Residual Current Circuit Breaker, Mould case circuit breakers Push botton switches, isolator etc...Our products apply into high end of market in the world. The qualification of products reaches a MID and high level in China markets, and the quality is accepted by high end of market.

Meanwhile, we have our own intellectual rights for breakers and leakage breakers and have advanced testing and assembly equipment and exquisite manufacture techniques.

We have more than 500 workers for production 8 engineers for quality control and technics. All of our product line are according the CE certficates and test reports.

For Business. We have experience to serve the famous brand in OEM. Our company is not very big but with the quality goods forever. We only make the quality parts. Welcome all of our customers or new friends feel free to visit our company.
