AC Metallized Polypropylene Film Capacitor Cbb61motor Starting Capacitor China

Name: AC Metallized Polypropylene Film Capacitor Cbb61motor Starting Capacitor China
Brand: all-electronics-online.com
SKU: 734492852
Availability: InStock
Rating: 4.8 (129 reviews)

Price:	US $ 0.18/Piece
Min Order:	10000/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	CBB61
Type:	Polypropylene Capacitor
Application:	Automobile
Package Type:	Surface Mount
Capacitance:	1-50uf

Product Description

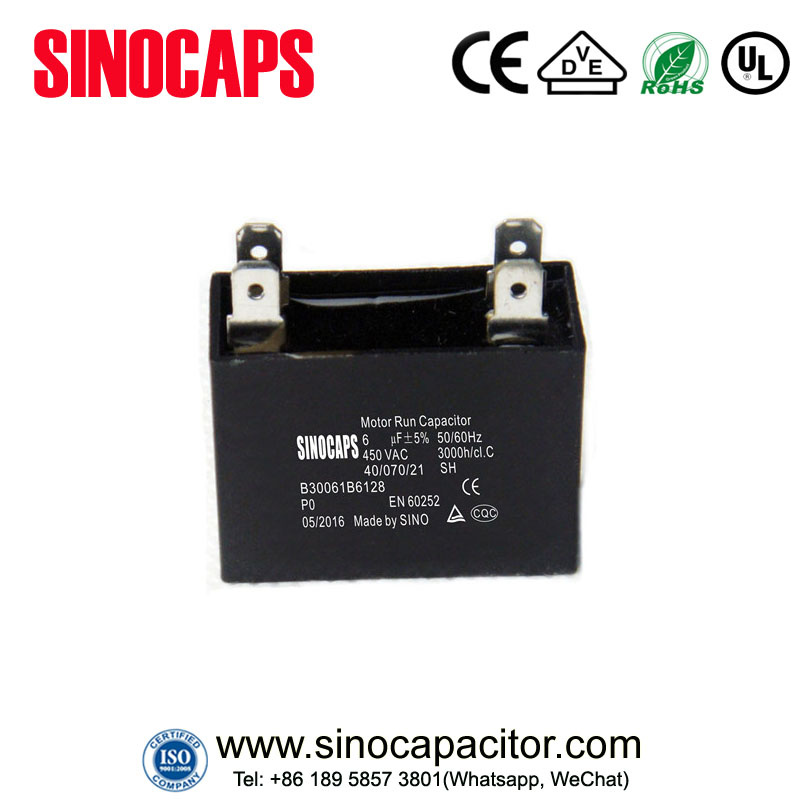

SINOCAPS #CBB61 Motor run & start capacitor

Detailed Product Description:
1. Used widely in motors, fans.
2. High performance & Long life Capacitor.
3. Work well even in hot area.

Main Feature:
Low dissipation factor,small inherent temperature rise.excellent
self-healing stability,safety and high voltage withstand,etc.

Applications:
To start and run single phase motors in alternating current usage.

SINO #CBB61 motor capacitor

Capacitance Range	1μF~30μF
Rated Voltage	250VAC~500VAC(50/60Hz)
Capacitance Tolerance	±5% or Fulfilled upon request
Loss Tangent	Tgδ≤0.002(50Hz-100Hz)
Standard Temperature	-25ºC~+70ºC,-40ºC~+85ºC
Climate Class	25/70/21, 40/85/21
Test Voltage	Between terminals	AC≥2.00Un 2S NO BREAKDOWN
	Between terminals and case	AC≥2000V 2S NO BREAKDOWN
Insulation Resistance	Between terminals	Rj·C≥3000MΩ.μF
	Between terminals and case	Rj≥1000 MΩ.μF
Security Level	P0, P1, P2
Executing Standard	GB/T3667.1-2005, IEC60252-1:2001, IEC252
