Cbb60 Fan Capacitor Switch Capacitor Cbb61 Speed Regulating Capacitor 350V 500V

Name: Cbb60 Fan Capacitor Switch Capacitor Cbb61 Speed Regulating Capacitor 350V 500V
Brand: all-electronics-online.com
SKU: 698904422
Availability: InStock
Rating: 4.4 (92 reviews)

Price:	US $ 0.28/Piece
Trade Terms:	FOB,CIF,EXW
Min Order:	5000/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

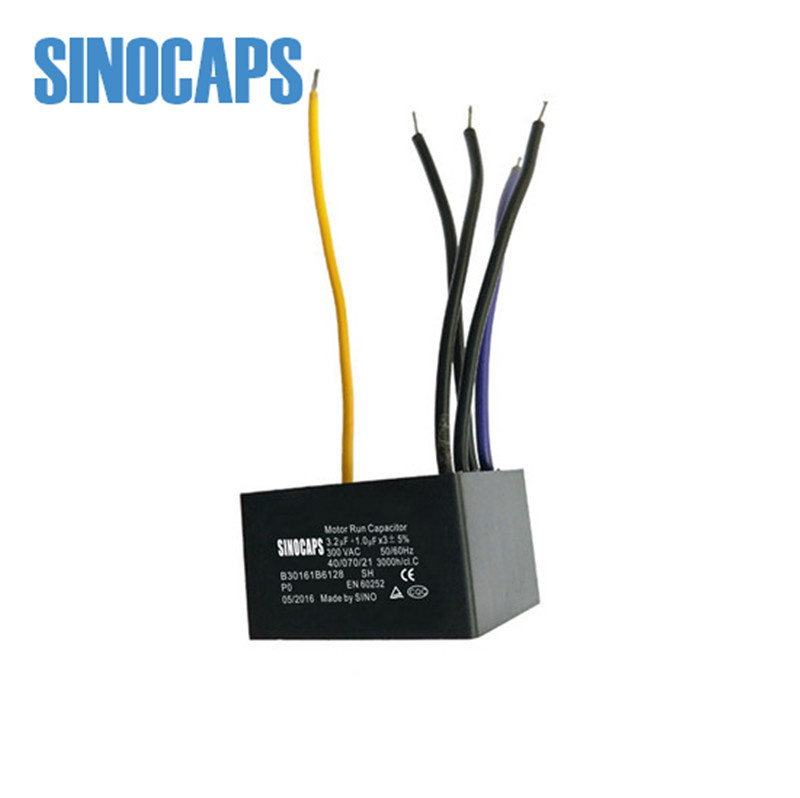

SINOCAPS Fan capacitor:

Detailed product description:
1. Used widely in motors, air conditioner, water pumps,air etc
2.High performance & Long life Capacitor.
3. Work well even in hot area

Main feature:
Low dissipation factor, small inherent temperature rise. Excellent self-healing stability, safety and high voltage withstand,etc.

Applications:
Used widely in washing machine, water pumps, air conditioner and as well household electric appliances etc. to start and run single phase motors in alternating current usage.

Motor running capacitor:
Capacitance Range	1μF~150μF
Rated Voltage	250VAC~500VAC(50/60Hz)
Capacitance Tolerance	±5% or Fulfilled upon request
Loss Tangent	Tgδ≤0.002(50Hz-100Hz)
Standard Temperature	-25ºC~+70ºC,-40ºC~+85ºC
Climate Class	25/70/21, 40/85/21
Test Voltage	Between terminals	AC≥2.00Un 2S NO BREAKDOWN
	Between terminals and case	AC≥2000V 2S NO BREAKDOWN
Insulation Resistance	Between terminals	Rj·C≥3000MΩ.μF
	Between terminals and case	Rj≥1000 MΩ.μF
Security Level	P0, P1, P2
Executing Standard	GB/T3667.1-2005, IEC60252-1:2001, IEC252

Prod Model:	CBB60-7
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Shell:	Plastic
Type:	Polypropylene Capacitor
Application:	Automobile
Package Type:	Through Hole
Capacitance:	1-150UF
