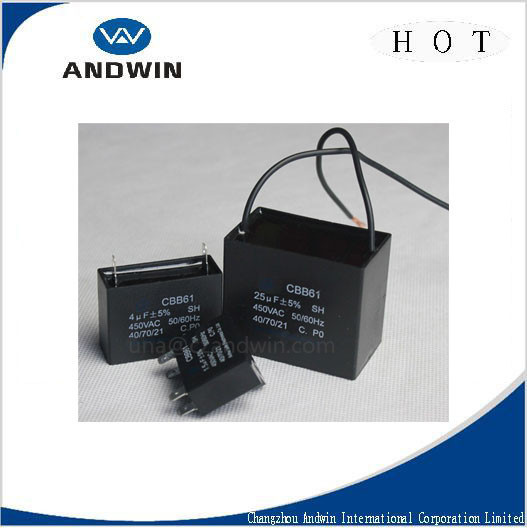

CBB61 AC motor capacitor(column,plastic case) Capacitor | Capacity | Size (mm) |
350Vac to 400Vac | 2uF | 37*13.5*24 |
CBB61, 4PINS (250#)mateiral: brass , TO SEE DRAWING, WITH FIX HOLE, +/-3% tolerance.
Features:1:Widely applied to starting and running of AC single-phase motors at 50Hz/60Hz frequency power.
2:Self-healing property.
3:High stability and reliability.
Motor capacitor, oil capacitor, IGBT capacitor, aluminum case capacitor , anti-explosion capacitor ,CBB65 motor run capacitor,CBB61 capacitor, air conditioner capacitor ,fan capacitor, inverter welding capacitor,

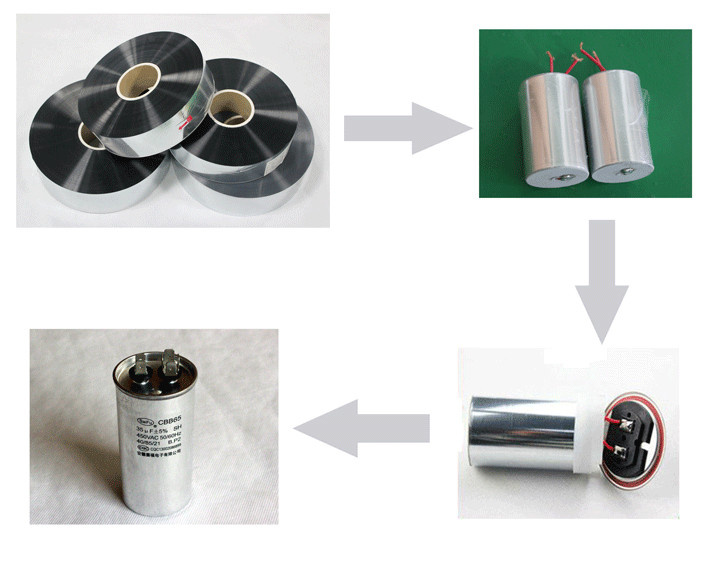

The capacitor takes heavy-edge metallized Al/Zn PP film as electrodes and dielectric. Its components are sealed with flame-retardant epoxy resin. It has cylindrical outline with high moisture resistance and stability.
Applications:
Broadly applied to starting and running of AC single-phase motors at 50Hz(60Hz) frequency for washers and high efficiency compressors of refrigerators etc.
Technical Specifications:
Standard:IEC 60252-1:2001
Technical features:
Climate type:40/70/21 or 40/85/21
Capacitance tolerance:± 5%
Insulation Resistance:≥3000S(MΩ·µF)
Dielectric dissipation factor:tgδ≤0.002 (50Hz~100Hz)
Application requirements:
Altitude:≤2000m
Residual voltage in application :less than 10% of rated voltage.
Allowed maximum voltage: less than 1.1 times of rated voltage
Permissible maximum current: less than 1.3 times of rated current

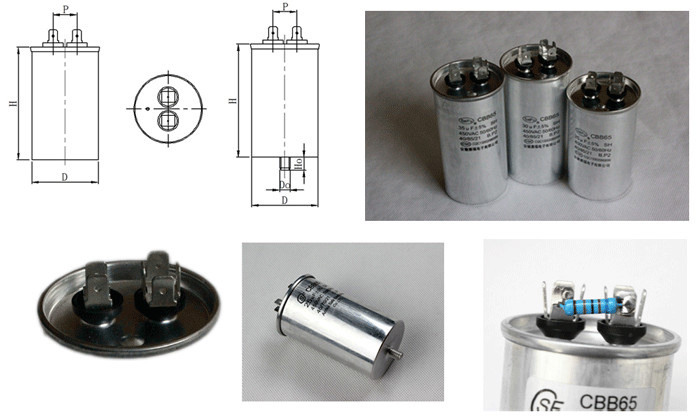

Dimensions & specifications (mm): Rated voltage(VAC) | Nominal capacitance(μF) | Size(mm) |
D | H |
200,250,370, 400,440,450,600 ,700,1200 | 1,1.2,1.5,2,2.5,3,3.5,4,4.5, 5,5.5,6,6.5,7,8,10,10.5,11, 11.5,12,15,16,20,25,30,35, 40,45,50,55,60, 12+6, 10+5.5, 13+6,… | 30,32,35,40, 41,43,45,46, 50 | 47,57,65,73,80,84,85,98,105,110 |

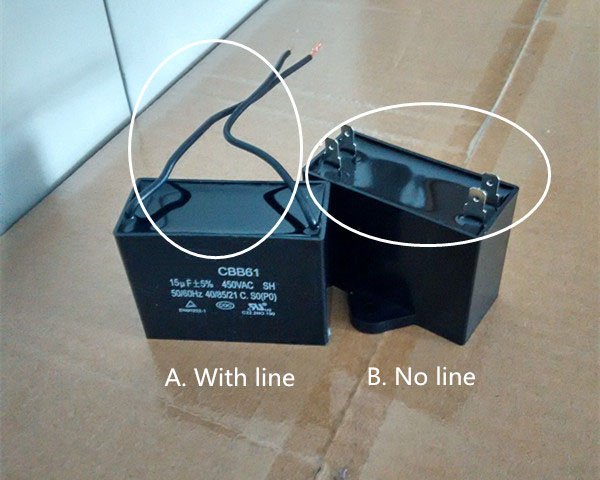

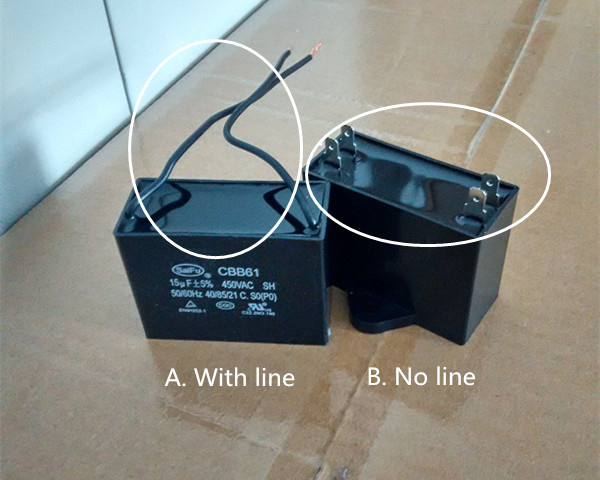

Note:1,Terminal leads are wires or 250# (187#) single (dual) tab(s).
2,Other dimension serials can be specified in pursuance of customer's request.
reference standards | GB/T 3667.1 (IEC60252-1) |
Climatic category | 40/70/21, 40/85/21 |
Class of operation | Class B (10000h) Class C (3000h) |
Class of safety protection | P0/P2 |
Voltage range | 200~500VAC |
Capacitance range | 1~60 µF |
Capacitance tolerance | ±5% |
Dissipation factor | 20×10-4 (100Hz,20ºC) |
Test voltage terminal to terminal UTT | 2 Un for 2 seconds |
Test voltage terminal to case UTC | (2Un+1000)VAC or 2000VAC-50Hz for 60 seconds |
Insulation Resistance | ≥3000MΩ.µF(100Hz,20ºC,1min) |
Dimensions: specifications | routine | with screws or pins |
450VAC | 250VAC | 450VAC | 250VAC |
1µF | Φ26*52 | Φ26*52 | Φ30*52 | Φ30*52 |
2µF | Φ26*52 | Φ26*52 | Φ30*52 | Φ30*52 |
2.5µF | Φ26*52 | Φ26*52 | Φ30*52 | Φ30*52 |
3µF | Φ26*52 | Φ26*52 | Φ30*52 | Φ30*52 |
3.5µF | Φ26*52 | Φ26*52 | Φ30*59 | Φ30*52 |
4µF | Φ28.5*55 | Φ26*52 | Φ35*62 | Φ30*52 |
4.5µF | Φ28.5*55 | Φ26*52 | Φ35*62 | Φ30*52 |
5µF | Φ28.5*55 | Φ26*52 | Φ35*62 | Φ30*52 |
5.5µF | Φ34*62 | Φ26*52 | Φ35*62 | Φ30*52 |
6µF | Φ34*62 | Φ26*52 | Φ35*62 | Φ30*52 |
6.5µF | Φ34*62 | Φ26*52 | Φ35*62 | Φ30*52 |
7µF | Φ34*62 | Φ26*52 | Φ35*62 | Φ30*52 |
8µF | Φ34*62 | Φ26*52 | Φ35*62 | Φ30*52 |
9µF | Φ34*62 | Φ26*52 | Φ35*62 | Φ30*52 |
10µF | Φ34*62 | Φ26*52 | Φ35*72 | Φ30*52 |
12µF | Φ37*73 | Φ26*52 | Φ35*72 | Φ30*61 |
14µF | Φ37*73 | Φ34*62 | Φ40*72 | Φ30*61 |
15µF | Φ37*73 | Φ34*62 | Φ40*72 | Φ30*61 |
16µF | Φ37*73 | Φ34*62 | Φ40*72 | Φ30*61 |
18µF | Φ37*73 | Φ34*62 | Φ40*72 | Φ35*67 |
20µF | Φ40*70 | Φ34*62 | Φ40*72 | Φ35*67 |
25µF | Φ42*80 | Φ42*62 | Φ40*72 | Φ35*67 |
30µF | Φ42*90 | Φ40*72 | Φ45*95 | Φ40*72 |
35µF | Φ45*90 | Φ40*72 | Φ45*95 | Φ40*72 |
40µF | Φ50*100 | Φ42*90 | Φ50*110 | Φ40*97 |
45µF | Φ50*100 | Φ42*90 | Φ50*110 | Φ40*97 |
50µF | Φ50*100 | Φ42*90 | Φ50*120 | Φ40*97 |
60µF | Φ50*115 | Φ42*90 | Φ50*120 | Φ40*97 |
Note:Other specifications,size and terminal outside table are negotiable. Product Flow TestingOur each process, each parts will be tested by our each production department with professional testing facilities to keep the quality proved.
