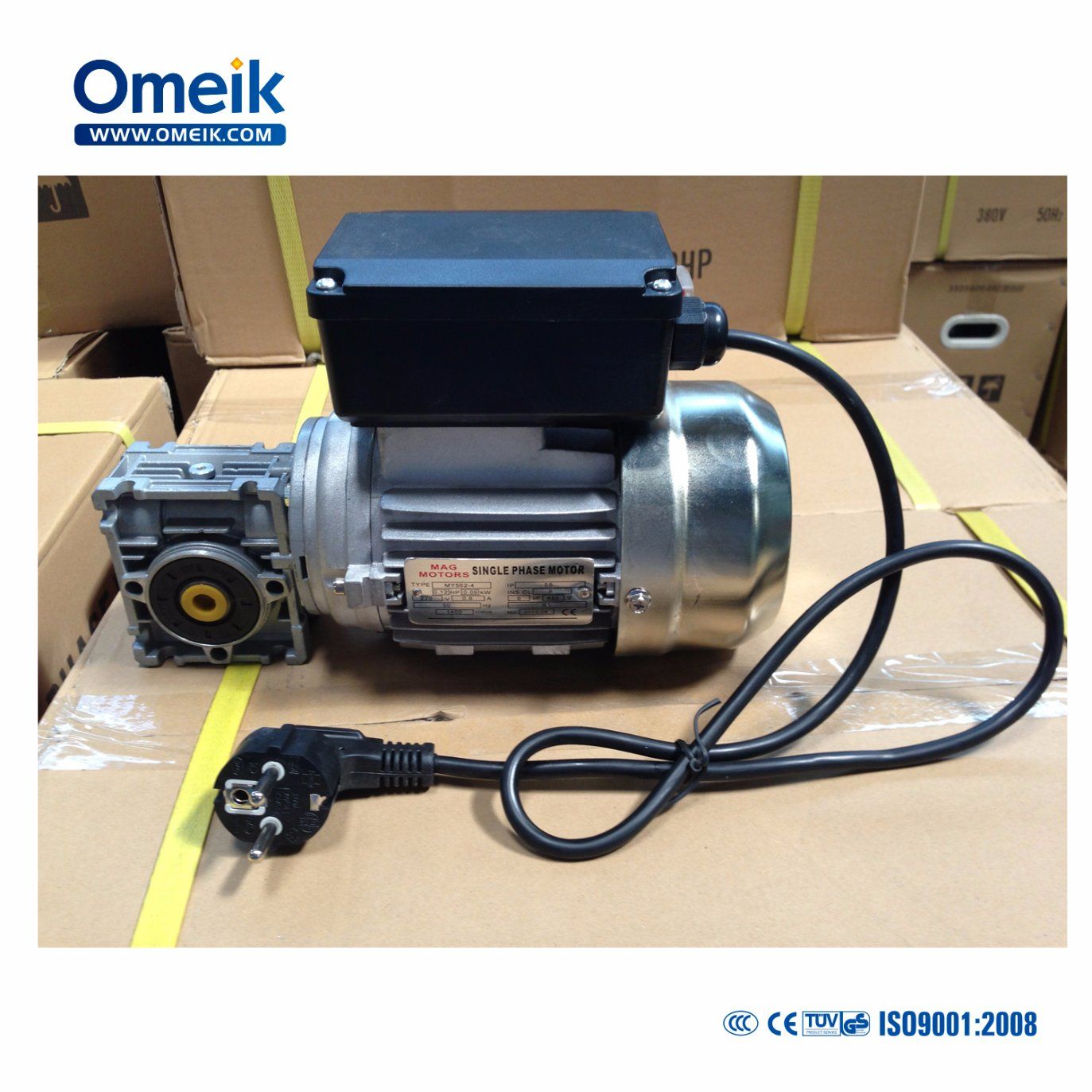

AC Single Phase Asynchronous Induction Electric Motor

Name: AC Single Phase Asynchronous Induction Electric Motor
Brand: all-electronics-online.com
SKU: 840136245
Availability: InStock
Rating: 4.6 (42 reviews)

Price:	US $ 46-50/Piece
Min Order:	100/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

MY Series Electric single Phase Aluminium Housing Motor
Advantage:
1. Safety & reliable operation
2. Nice appearance
3. Low noises
4. Little vibration
5. Light weight
6. Simple construction.

Appliation:

MY series Hydraulic motors can be used on household appliance, pumps, fan and recording meters, etc.

Operating Conditions:

1. Ambient temperature: -15 º C≤ ≤ 40º C
2. Altitude: ≤ 1000m
3. Rated voltage: 220V
4. Rated frequency: 50Hz/60Hz
5. Duty: Continuous(S1)
6. Insulation class: Class B/F
7. Protection class: IP44/IP54/IP55
8. Cooling method: IC0141

Note: If you have any special requirements, please contact us.

TYPE	Output		Voltage	Current	Speed	Eff	Power	Tstart/Tn	Ist/In
	KW	HP	(V)	(A)	(r. p. m)	(%)	factor	Tstart/Tn	Ist/In
MY561-2	0.09	0.12	220	0.9	2730	54	0.9	0.85	4.5	1.7
MY562-2	0.12	0.16	220	0.97	2730	58	0.9	0.85	4.5	1.7
MY631-2	0.18	0.25	220	1.8	2740	63	0.9	0.8	4.5	1.7
MY632-2	0.25	0.33	220	2.16	2740	65	0.9	0.8	4.5	1.7
MY711-2	0.37	0.5	220	2.96	2750	68	0.95	0.8	4.5	1.7
MY712-2	0.55	0.75	220	4.15	2760	69	0.95	0.8	4.5	1.7
MY801-2	0.75	1	220	5.17	2780	70	0.95	0.7	4.5	1.7
MY802-2	1.1	1.5	220	7.26	2790	71	0.95	0.7	4.5	1.7
MY90S-2	1.5	2	220	9.67	2800	72	0.95	0.6	5	1.7
MY90L-2	2.2	3	220	14.1	2800	73	0.95	0.6	5	1.7
MY5614	0.06	0.08	220	0.68	1330	48	0.85	0.85	4.5	1.7
MY5624	0.09	0.12	220	0.99	1340	49	0.85	0.85	4.5	1.7
MY6314	0.12	0.16	220	1.22	1350	53	0.9	0.8	4.5	1.7
MY6324	0.18	0.25	220	1.75	1360	57	0.9	0.8	4.5	1.7
MY7114	0.25	0.33	220	2.2	1370	59	0.95	0.8	4.5	1.7
MY7124	0.37	0.5	220	3.12	1370	62	0.95	0.8	4.5	1.7
MY8014	0.55	0.75	220	4.2	1380	65	0.95	0.7	4.5	1.7
MY8024	0.75	1	220	5.8	1380	68	0.95	0.7	4.5	1.7
MY90S-4	1.1	1.5	220	7.6	1390	69	0.95	0.6	5	1.8
MY90L-4	1.5	2	220	10.2	1400	70	0.95	0.6	5	1.8

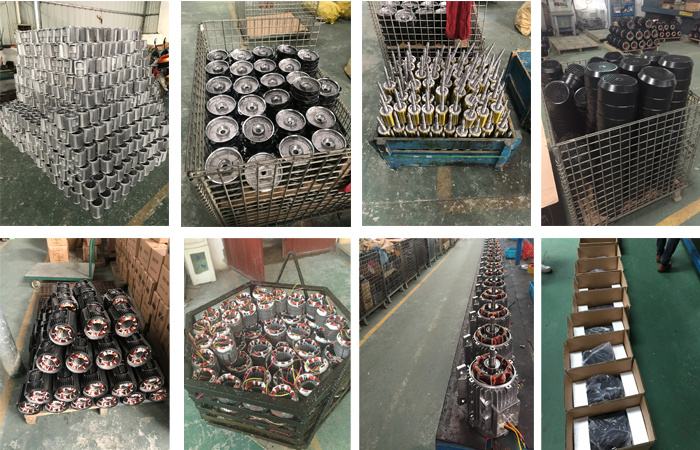

SPARE PARTS:

PACKING WAYS

FAQ

Q: Do you offer OEM service?
A: Yes

Q: What is your payment term?

A: 30% T/T in advance, 70% balance when receiving B/L copy. Or irrevocable L/C.

Q: What is your lead time?

A: About 30 days after receiving deposit or original L/C.

Q: What certifiicates do you have?

A: We have CE, ISO. And we can apply others.

Prod Model:	MY90S-4
Protection Class:	IP44/IP54/IP55
Insulation Class:	Class B/F
Mounting:	B3/B5/B14/B34/B35
Cooling Method:	IC0141
Winding:	100% Copper Wire
Housing:	Aluminum
Duty:	Continuous(S1)
Application:	Car
Operating Speed:	Constant Speed
Number Of Stator:	Single-Phase
Rotor Structure:	Winding Type
Casing Protection:	Closed Type
Starting Mode:	Direct on-line Starting
Species:	My Single Phase Motor
Number Of Poles:	2/4/6/8
Certification:	Ce
Brand:	Omeik/OEM
