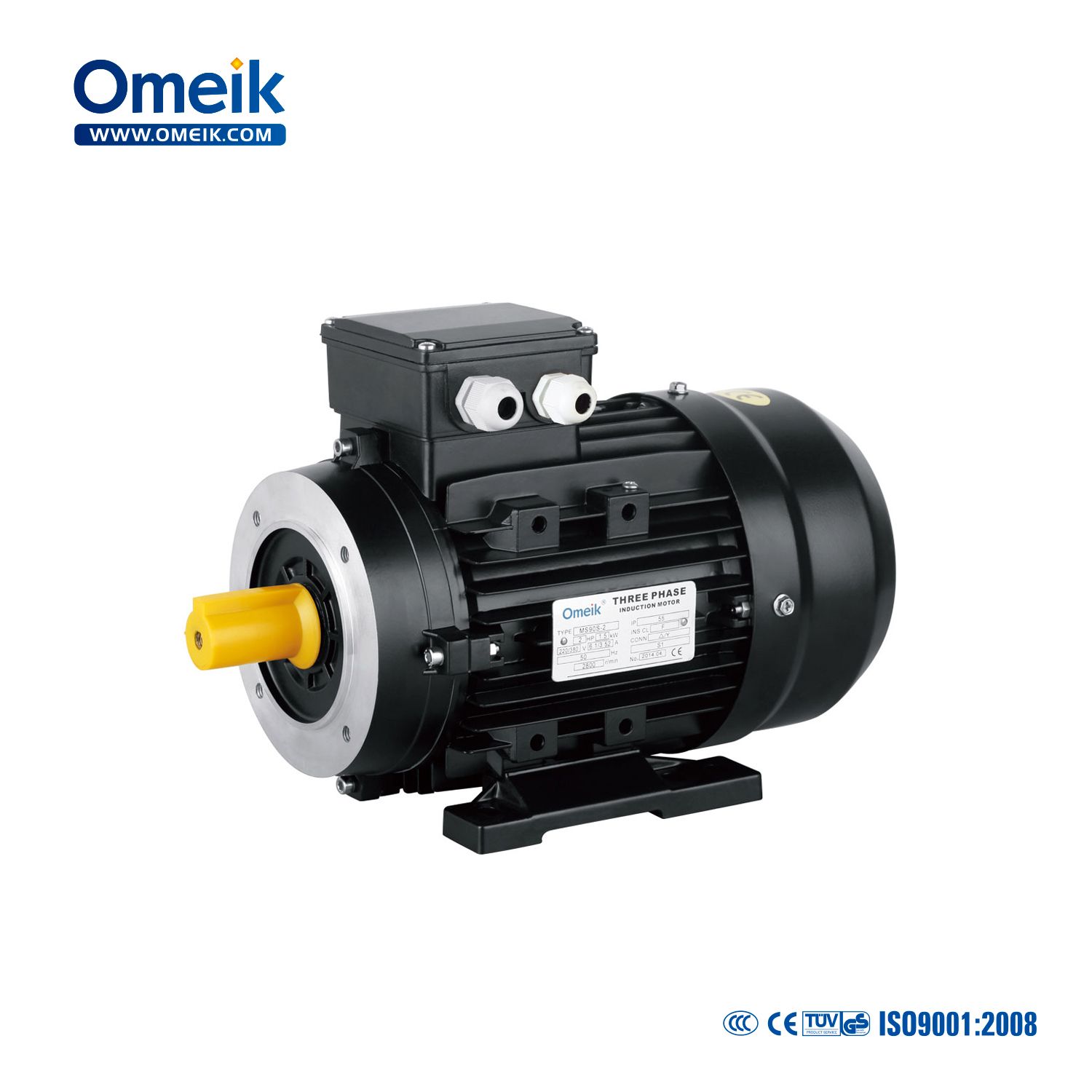

Ms 380V Three Phase Aluminium Housing Induction Motor

Name: Ms 380V Three Phase Aluminium Housing Induction Motor
Brand: all-electronics-online.com
SKU: 829741915
Availability: InStock
Rating: 4.9 (101 reviews)

Price:	US $ 50/Piece
Min Order:	5000/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

1. MS series electric motors adopt the latest design and high quality material. MS series motors are conform to the IEC standard in function, appearance, output and other requirements.

2. The efficiency of MS series motors meet EFF2 standard in E. U., and can reach the EFF1 standard if requested.

3. MS series motors have a lot of advantages including high, energy saving, low noise, little vibration, light weight, small volume, reliable operation, up-to-date appearance, convenient operation and maintenance.

Specification as below:

TYPE	Output (kW)	Volt(V)	Current (A)	Speed(r/min)	Eff(%)	Power Factor	Tstart/Tn	Tmax/Tn	Ist/In	Weight(kg)
MS561-2	0.09	220/380	0.57/0.33	2800	62	0.68	2.3	2.4	6	4.6
MS562-2	0.12	220/380	0.67/0.38	2800	67	0.71	2.3	2.4	6	4.8
MS631-2	0.18	220/380	0.91/0.53	2800	69	0.75	2.2	2.4	6	5
MS632-2	0.25	220/380	1.17/1.68	2800	72	0.78	2.2	2.4	6	5.3
MS711-2	0.37	220/380	1.65/0.95	2800	74	0.8	2.2	2.4	6	6.5
MS712-2	0.55	220/380	2.33/1.35	2800	76	0.82	2.2	2.4	6	7
MS801-2	0.75	220/380	3.03/1.75	2800	77	0.85	2.2	2.4	6	9.5
MS802-2	1.1	220/380	4.42/2.55	2800	77	0.85	2.2	2.4	6	11
MS90S-2	1.5	220/380	6.01/3.84	2800	77	0.85	2.2	2.4	6	14.5
MS90L-2	2.2	220/380	8.61/4.98	2800	78	0.86	2.2	2.4	6	17
MS100L-2	3	220/380	11.1/6.4	2870	82	0.87	2.2	2.3	7	24.5
MS112M-2	4	380/660	8.2/4.7	2890	86	0.87	2.2	2.3	7	30
MS132S1-2	5.5	380/660	11/6.3	2900	86	0.88	2	2.2	7	42
MS132S2-2	7.5	380/660	15/8.6	2900	86	0.88	2	2.2	7	50
MS561-4	0.06	220/380	0.49/0.28	1400	56	0.58	2.3	2.4	6	4.6
MS562-4	0.09	220/380	0.67/0.39	1400	58	0.61	2.3	2.4	6	4.8
MS631-4	0.12	220/380	0.84/0.48	1400	60	0.63	2.2	2.4	6	4.8
MS632-4	0.18	220/380	1.12/0.65	1400	64	0.66	2.2	2.4	6	5
MS711-4	0.25	220/380	1.44/0.83	1400	67	0.68	2.2	2.4	6	6.3
MS712-4	0.37	220/380	1.94/1.12	1400	70	0.72	2.2	2.4	6	7
MS801-4	0.55	220/380	2.69/1.56	1400	74	0.73	2.2	2.4	6	9.5
MS802-4	0.75	220/380	3.48/2.01	1400	76	0.75	2.2	2.4	6	11
MS90S-4	1.1	220/380	4.74/2.75	1400	78	0.78	2.2	2.4	6	14.5
MS90L-4	1.5	220/380	6.31/3.65	1400	79	0.79	2.2	2.4	6	16
MS100L1-4	2.2	220/380	8.6/5.0	1430	81	0.82	2.2	2.3	7	23
MS100L2-4	3	220/380	11.7/6.8	1430	83	0.81	2.2	2.3	7	27
MS112M-4	4	380/660	8.8/5.1	1440	85	0.82	2.2	2.3	7	33.5
MS132S-4	5.5	380/660	12/6.9	1440	86	0.84	2.2	2.2	7	49.5
MS132M-4	7.5	380/660	15/8.6	1440	87	0.85	2.2	2.2	7	57.5
MS90S-6	0.75	220/380	4.0/2.3	910	73	0.7	2.2	2.2	5.5	14.5
MS90L-6	1.1	220/380	5.5/3.2	910	74	0.72	2.2	2.2	5.5	17
MS100L-6	1.5	220/380	6.9/4.0	940	78	0.74	2.2	2.2	6	22.5
MS112M-6	2.2	220/380	9.7/5.6	940	81	0.74	2.2	2.2	6	29
MS132S-6	3	220/380	12.4/7.2	960	83	0.76	2	2	6.5	48
MS132M1-6	4	380/660	9.4/5.4	960	84	0.77	2	2	6.5	49
MS132M2-6	5.5	380/660	13/7.5	960	85	0.78	2	2	6.5	57.5

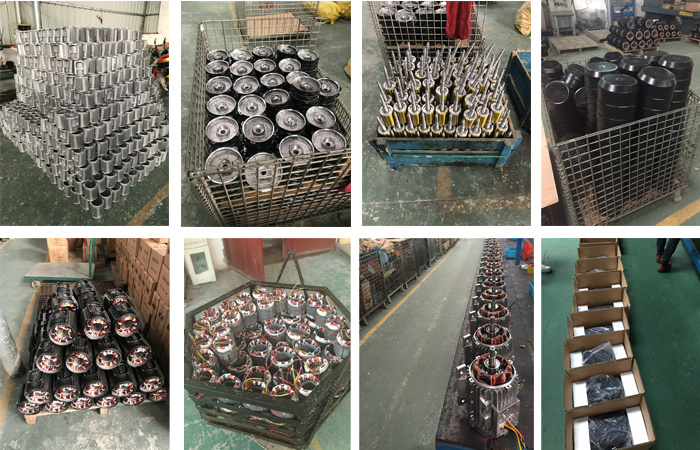

SPARE PARTS:

PACKING WAYS

FAQ

Q: Do you offer OEM service?
A: Yes

Q: What is your payment term?

A: 30% T/T in advance, 70% balance when receiving B/L copy. Or irrevocable L/C.

Q: What is your lead time?

A: About 30 days after receiving deposit or original L/C.

Q: What certifiicates do you have?

A: We have CE, ISO. And we can apply

Prod Model:	MS71-2
Voltage:	380V, Other Voltage on Request
Frequency:	50Hz, Other Frequency on Request
Color:	Green/ Blue/Black or as Your Requ
Application:	Industrial
Operating Speed:	Constant Speed
Number Of Stator:	Three-Phase
Rotor Structure:	Winding Type
Casing Protection:	Closed Type
Starting Mode:	Auto-induction Voltage-reduced Starting
Certification:	Ce
Brand:	Omeik/OEM

Fuan Omeik Electric Co., Ltd. is a professional manufacturer of water pumps and electric motors, located in Fuan Electrical Machinery and Appliances Zone, Fuan, Fujian, China and established in 1999. It's a fair integrative company with scientific research, production, and sell, which possesses advance producing and testing equipments and strong technology team. The company always strictly follows the ISO9001 quality management system to manage the production which guarantee of good quality.

In order to meet the challenge of the keen market competition, the company has introduced advanced technology and machinery as well as computerized testing equipment to further improving the quality of the products. The company insists on "survives on high quality and honest with business", Basis on this principle our quality products have been exported old over the world, such as South East Asia, Middle East, Australia, Europe and South America etc.

We are longing for hand in hand cooperation with more friends in the whole world, know that quality product and the the after sale services, altogether create happy future, we are warmly welcome your coming and the support.
