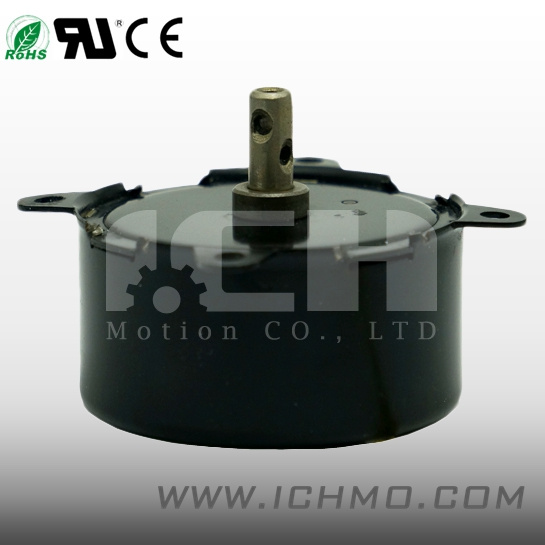

AC Synchronous Motor S601 (60MM)

Name: AC Synchronous Motor S601 (60MM)
Brand: all-electronics-online.com
SKU: 500045702
Availability: InStock
Rating: 4.5 (148 reviews)

Price:	US $ 4/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1000/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	S601
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size:	60mm
Output Speed:	4.6-90rpm
Voltage:	24-220VAC
Current:	0.042-0.4A
Frequency:	50/60Hz
Input Power:	6W
Noise:	<40dB
Rotation:	Cw/Ccw(Free)
Application:	Power Tools
Operating Speed:	Low Speed
Operation Mode:	Electric Motor

Product Description

I. CH MOTOR - AC Synchronous Motor S601(60MM)

Specifications:
-Output Speed: 4.6-90RPM
-Voltage: 24-220VAC
-Current: 0.042-0.4A
-Frequency: 50/60Hz
-Input Power: 6W
-Noise: <40dB
-Rotation: Cw/CCW(free)

The application is Laminator, Paper Shredder, Rotating Christmas Tree Stand.

Any requirement, please feel free to contact me, we can make products according your specs and supply the competition price.

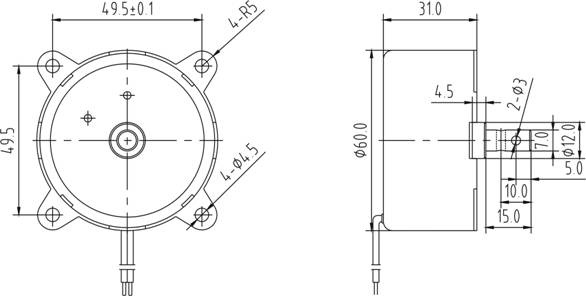

Drawing:

Specification
Model	Output speed (rpm)	Output Torque (kg.cm)			Voltage (V.AC)	Current (A)	Frequency (Hz)	Input Power (W)	Noise (dB)	Rotation
Model	Output speed (rpm)	S1 continuous	S2 15 minutes	S2 5 minutes	Voltage (V.AC)	Current (A)	Frequency (Hz)	Input Power (W)	Noise (dB)	Rotation
S601-12-4.6	4.6	12 / 10.44	14 / 12.18	16 / 13.92	24 ******* 110 ******* 220	<0.4 ******** <0.084 ******* <0.042	50/60Hz	<6	<40	CW,CCW CW/CCW (Free)
S601-05-10	10	5.5 / 4.82	6.5 / 5.66	7.5 / 6.53
S601-04-15	15	3.5 / 3	4.3 / 3.74	5.0 / 4.35
S601-03-20	20	2.8 / 2.43	3.2 / 2.78	3.7 / 3.22
S601-02-30	30	2 / 1.74	2.2 / 1.91	2.5 / 2.18
S601-01-50	50	1.2 / 1.04	1.3 / 1.13	1.5 / 1.31
S601-01-60	60	1 / 0.87	1.1 / 0.96	1.2 / 1.04
S601-01-90	90	0.6 / 0.52	0.7 / 0.6	08 / 0.7
Note: Above datas are from motors under 50Hz. If under 60Hz, Speed*1.2 , Torque/1.2 Other speed and torque needed, please contact our sale department
