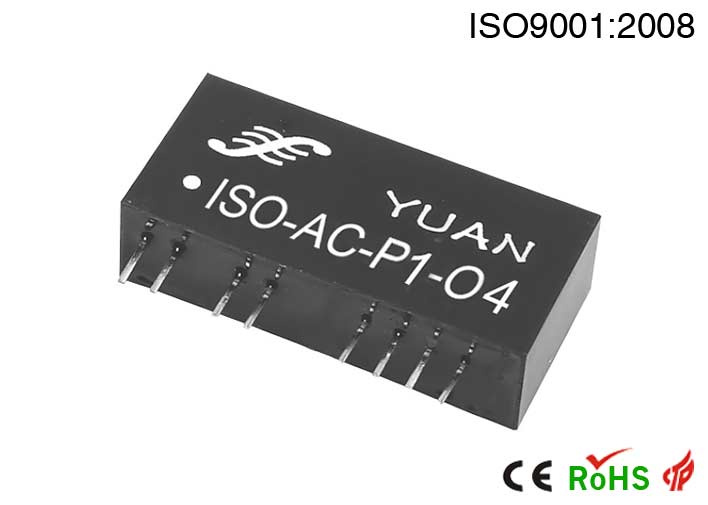

AC to DC 0-10mA/4-20mA/0-5V/0-10V Output Transmitter ISO AC-P-O
| Price: |
Negotiable/Piece |
| Min Order: |
2/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
AC to DC 0-10mA/4-20mA/0-5V/0-10V Output Transmitter ISO AC-P-OFeatures:
>>Accuracy/linearity error grade:0.5
>>Input:0-1Vrms AC current (50~60Hz)
>>Power supply:5V/12V/15V/24VDC
>>International standard output signal: 0-10mA /4-20mA/0-5V/0-10V
>>Low cost,small size,SIP12 UL94V-0 package
>>Temperature Range: - 45 ~ + 85 ºC
Applications:
>>AC signal acquisition and transformation
>>High-precision monitoring used for power transmission and distribution
>>AC small-signal amplification and conversion
>>sensor AC signal converter to standard DC Signal
>> No distortion in long distance signal transmission
>>can be connected to an external transformer to compose single-phase or multiphase transmitter
Specification:
SunYuan ISO series AC-DC signal transmitter IC, is a hybrid integrated circuit that convert the AC
signal acquisition corresponds to a linear DC signal. This circuit integrates a group of multi-channel
high-isolation DC / DC power supplies and a group of AC / DC signal converter circuit on the same
chip.Sensors can be collected from the 0-1Vrms (50 ~ 60HZ) AC signal proportional to convert
4-20mA/0-10mA / 0-20mA DC current signal or 0-1V/0-2.5V/0-5V/0- 10V DC voltage signal. An
external transformer can be formed after the single-phase or multiphase transmitter isolation
between the input and output signal isolation. Remote monitoring and control products in the
electrical, instrumentation, medical equipment, widely used in the fields of industrial automation.
Related application solutions:
The Universal Connection Solutions for Industrial Sensor and Instruments (ISO 4-20mA) Series
The External Protection of Isolation Amplifier Transmitter IC
Model selection:
ISO AC - P- O
Input
AC:0~1Vrms
Output signal
O1:4-20mA O2:0-20mA
Power Supply O3:4-12~20mA O4:0-5V
P1:24VDC P2:12VDC O5:0-10V O6:1-5V
P3:5VDC P4:15VDC O8:user-defined
P8:user-defined
| Prod Model: |
ISO AC-P-O |
| Input: |
0~1vrms |
| Output: |
4-20mA/0-10mA/0-20mA/0-1V/0-2.5V/0-5V/0-10V |
| Isolation Method: |
SIP12pin |
| Remark: |
-AC to DC 0-10mA/4-20mA/0-5V/0-10V Output Transmit |
| Accuracy/Linearity Error Grade: |
0.5 |
| Power Supply: |
5V/12V/15V/24VDC |
| International Standard Output Signal: |
0-10mA /4-20 |
| Temperature Range: |
- 45 ~ + 85 ºC |
