Active RFID Car Alarm 3G 4G GPS Tracker with Driver ID Identify

Active RFID Car Alarm 3G 4G GPS Tracker with Driver ID Identify
Price: US $ 60-70/Set
Min Order: 1/Set
Pay Type: T/T,Western Union,Paypal,Money Gram
Prod Model: MT100-3G
Function: RFID Car Alarm/Engine Idle Alert
Free Tracking Platform: Yes
CPU: Arm 7,High Speed Processor
GPS Chip: U-Blox 7
Memory: 4MB Data Logger
Power Consumption: 65mA Standby Current
RFID: Car Alarm & Driver ID Identify
Ota Function: Yes
Harsh Acceleration Alert/Braking Alert: Yes
Oil Leaking Alarm: Yes

Product Description

Active RFID car alarm 3G 4G GPS tracker with driver ID identify
(*Free tracking platform  *Two years warranty  *Two way location  *Two way communication  * CE&RoHS certificate)



Solution 1: GPS tracker + car alarm
When driver close the vehicle with lawful RFID tag, tracking system will disarm vehicle automatically,
When driver leave the vehicle with lawful RFID tag, tracking system will arm vehicle automatically.

In armed status, if illegal people open the door / movement the vehicle / ignition, tracking system will send alarm message and call to our preset phone number, siren also will sounding automatically.


Solution 2: GPS tracker + Driver ID identify
When driver close the vehicle with lawful RFID tag, tracking system will check this tag ID, and upload ID number to FPRS01 tracking platform, we can know who drive which vehicle via platform.



1. Product Overview

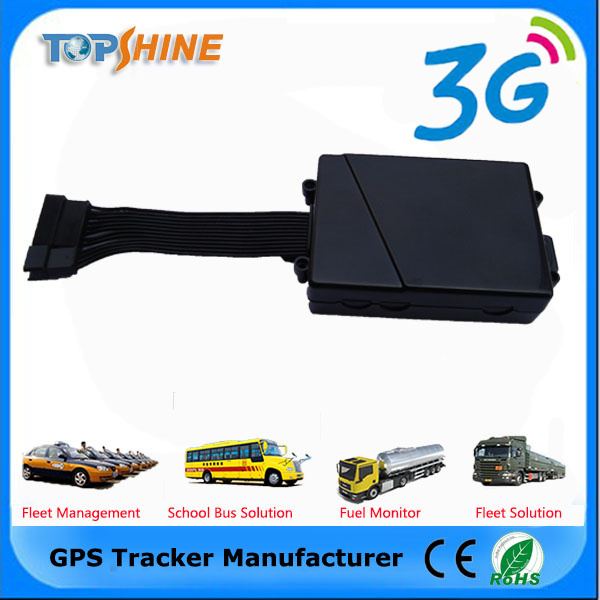

3G GPS tracker MT100 is a most advanced and high-cost effective GPS tracker, it is equipped with ARM9 high speedy microprocessor; using fully new and industrial grade modules. Its functions also very powerful, Bidirectional communication; 2 A/D connectors for multi fuel sensor monitoring; support unique active RFID for automatic anti-theft and driver identification; with harsh braking & acceleration alarm and accident alarm; and many useful functions and extensibility for fleet management and vehicle security purpose.




2. Applications

l Vehicle Real Time Tracking
l Vehicle Security/Anti-Hijack
l Fleet Management




3. Features & Functions

* Tracking by SMS/GPRS (TCP/UDP)
* Tracking by time/distance interval
* OTA Function
* Real time tracking via the web-platform
* Get position location via call/SMS
* Engine on/off detection
* Built-in backup 650 mAh battery
* Remote Engine cut off to stop the car in safe condition
* ARM9 high speed microcontroller
* Get location physical name via SMS & from the web-platform
* Google Map link for location via SMS, it shows your location on map via mobile phone.
* Mileage calculation with longitude and latitude via SMS; view mileage data via GPS web-based tracking centre system
* Built-in motion sensor for power & GPRS flow saving mode (sleep mode)
* Built-in 4MB memory & position logging capacity up to 26,000+ waypoints even no GPRS signal
* I/O: 2 Inputs, 3 Outputs, 1 Analog Input, 1 RS232 port.



 3.1 Multiple alerts
* Over speed alert
* Geo-fence alert
* Power failure/low power alert
* SOS Panic button, SOS alert
* Oil leaking/Refuel Alarm
* Harsh braking and harsh acceleration alarm
* Suddenly acceleration/brake alert



 3.2 Optional / customizable functions
* Customize output4 wire (optional)
* Customize input5 wire for detecting Air condition ON or OFF..etc, it is positive trigger (optional)
* Customize second Analog port (like detecting second fuel tank)(optional)
* Customize dual serial port that can support RFID reader and temperature sensor (or OBDII connector) at the same time(optional)
* Remote diagnostics OBDii connector via ECU
* Detecting the voltage of car battery (optional)
* Accident alarm (need crash sensor support) (optional)
* RS232 Port Can equip with RFID kit for driver identification and auto Arm/Disarm functions (movement/towed alert, ignition alert, auto cut off engine etc) (need RFID support) (optional)
* Analog input for Fuel sensor detecting/monitoring (optional)




4. Specifications

ItemsSpecifications
Dimension80*58*22mm
Weight92g
Input voltageDC 9V~36V/1.5A
Back-up Battery650mAh/3.7V
Power Consumption65mA standby current
Operating Temperature-20°C~75°C
Humidity5%~95%
Work Time33 hours in power-saving mode and 8 hours in normal mode
LED2 LED lights to show GPS, GSM status
Button1 SOS and 1 power on/off
MicrophoneDefault
Memory4M Byte
SensorMotion sensor
3G GSM FrequencyVersion A: UMTS/HSDPA 850/1900MHz
Version E: UMTS/HSDPA 900/2100MHz
Version T: UMTS/HSDPA 850/2100MHz
GPS ChipLatest GPS SIRF-Star III Chipset
GPS Sensitivity-159dB
Positioning Accuracy10meters, 2D RMS
I/O2 Input         3 Output
1 Analog Input   1 RS232 Port    1 USB Port


5. Accessories

Standard Accesorries
Main unitSOS button
Relay (12V/24V)Wiring

Optional Accessories
Cuttable fuel sensorUltrasonic fuel sensor
Passive RFIDPassive RFID tag
Active RFIDActive RFID tag
Smart phone readerSiren
OBDii connectorTemperature sensor
Microphone Speaker

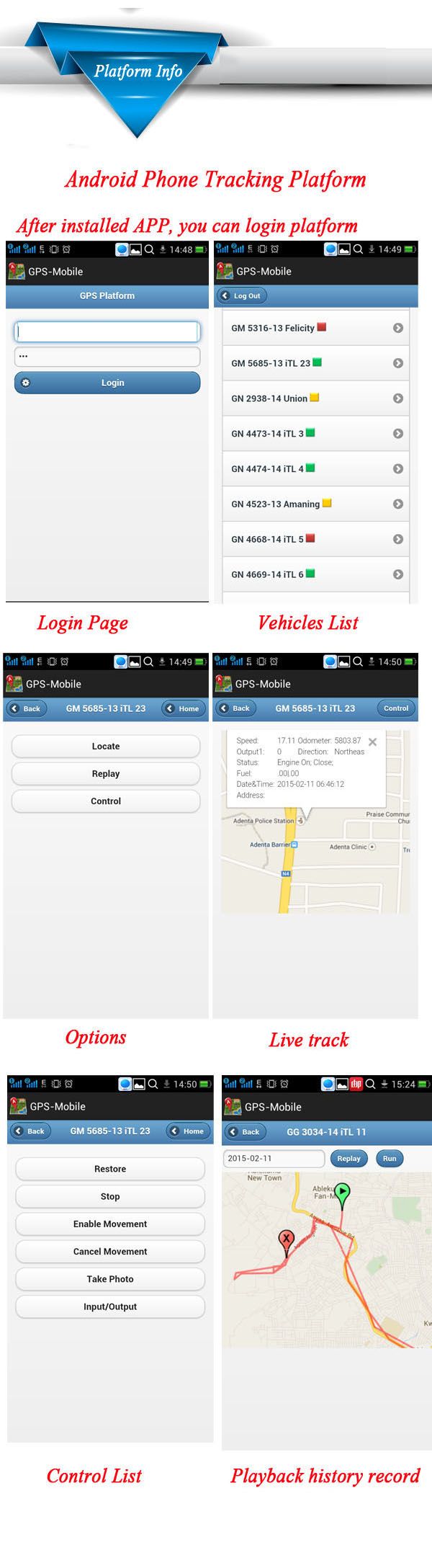

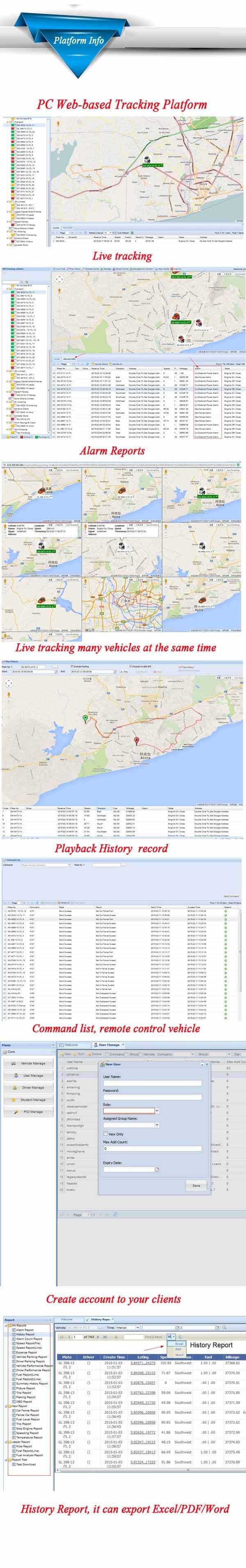

6. Online GPRS01 Tracking Platform
Topshine company provide 2 free tracking platform (web based and mobile APP)
link: www.track-car.com
Mobile link: www.track-car.com/m
User: test1
Pass: 123





7. Our service
1) Any inquiries will be replied within 12 hours on work day.
2) Professional manuafacurer and wholesaler for 10 years.
3) OEM available: Customized logo or color box
We can help you to design and put it into production about your idea.
4) High quality, fashion design, reasonable&competitive price, fast lead time
5) After-sale service:
     All products will have been strictly Quality checked in workshop before packing
     All products will be well packed before shipping.
     All our products have 24 mouths warranty, and we are sure our products will be  free from maintenance
6) Fast delivery: Sample order in stock; 10~100pcs: 2~3 days; 3~7 days for bulk order
7) Payment: T/T, Western Union and Paypal



FAQ

Q: Why the tracker can't be switched on?
A: 1. Check if wiring is correct or not.
    2. Charge the tracker.


Q: No response to SMS command
A: 1. Wrong password. Please check your password.
    2. No GSM mobile signal or weak GSM network. Try later.
    3. Out of SIM credit. Please pop up.
    4. SIM is damaged. Change a sim card.
    5. SIM card is without sending function. Change a SIM or enable SMS sending function.
    6. SIM card isn't installed properly.


Q: Why there is a "Last" appearing in a positon report SMS?
A: There is no GPS signal. Please take the tracker to somewhere open area.

Q: How to use tracking platform?
A: 1. Set GPRS parameter in Parameter.exe.
    2. Set GPRS parameter by SMS.
        (1) Set tracker ID: W,010,ID
        (2) Set APN: W,011,APN name
        (3) Set IP and Port: W,012,210.209.68,9600
        (4) Enable GPRS: W,013,1
        (5) Set report time interval: W,0.14,00000
        (6) Open link www.global-track and create vehicle info in Manage - Vehicle Manage


Q: How to connect Relay to cut off engine?
A: Cut off fuel pump wire, connect green wire of relay with fuel pump line, connect yellow wire with relay yellow wire, connect white wire with 12V power supply line.
