| Prod Model: |
adss |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Jacket Material: |
Black PE |

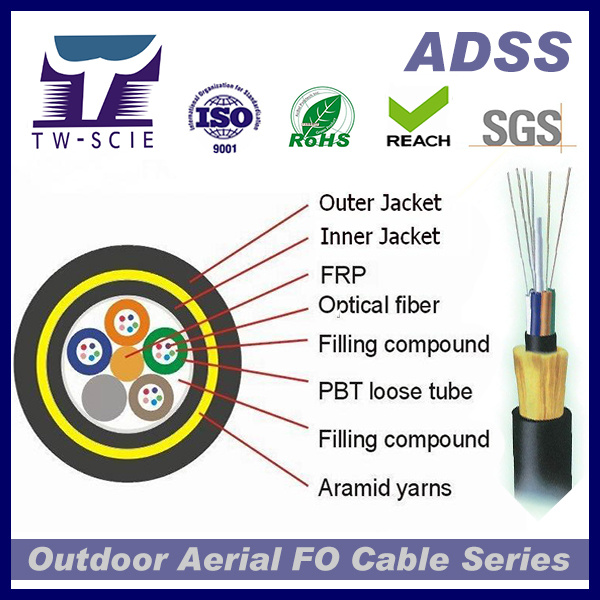

| Strengthen Member: |
Aramid Yarn |
| Loose Tube: |
Multi Loose Tubes |
| Application: |
Communication |
| Type: |
Single-mode Fiber |
| Certification: |
Reach |
| Connection Structure: |
Single More or Multimode |
| Brand: |
OEM or Tw-Scie |
| Sheath Material: |
LSZH,HDPE,MDPE |
Product Description
| ADSS Fiber Optic Cable Technology Specification: |
Ref.outer diameter
(mm) | Ref.weight
kg/km Weight | Ref.daily max.working tension
(kN)
| Max allowable working tension
(kN) | Break strength
(kN) | Strength member CSA
(mm2) | Modulus of elasticity kN/
(mm2) | Heat expansion coefficient ×10-6 /k |
| PE sheath |
AT sheath |
| 12.5 | 125 | 136 | 1.5 | 4 | 10 | 4.6 | 7.6 | 1.8 |
| 13 | 132 | 142 | 2.25 | 6 | 15 | 7.6 | 8.3 | 1.5 |
| 13.3 | 137 | 148 | 3.0 | 8 | 20 | 10.35 | 9.45 | 1.3 |
| 13.6 | 145 | 156 | 3.6 | 10 | 24 | 13.8 | 10.8 | 1.2 |
| 13.8 | 147 | 159 | 4.5 | 12 | 30 | 14.3 | 11.8 | 1.0 |
| 14.5 | 164 | 177 | 5.4 | 15 | 36 | 18.4 | 13.6 | 0.9 |
| 14.9 | 171 | 185 | 6.75 | 18 | 45 | 22 | 16.4 | 0.6 |
| 15.1 | 179 | 193 | 7.95 | 22 | 53 | 26.4 | 18 | 0.3 |
| 15.5 | 190 | 204 | 9.0 | 26 | 60 | 32.2 | 19.1 | 0.1 |
| 15.6 | 194 | 208 | 10.5 | 28 | 70 | 33 | 19.6 | 0.1 |
| 16.3 | 211 | 226 | 12.75 | 34 | 85 | 40 | 20.1 | -0.4 |
| 16.8 | 226 | 242 | 15.45 | 41 | 103 | 48 | 24 | -0.5 |
| 17.2 | 236 | 253 | 16.2 | 45 | 108 | 51 | 25.1 | -0.8 |
| 17.9 | 249 | 266 | 18 | 50 | 120 | 58.8 | 26.1 | -0.8 |
| ADSS optic fiber cable Optical Characteristics: : |
| Fiber Sort | Multimode | G.651 | A1a:50/125 | Graded-index fiber |
| | | A1b:62.5/125 |
| Singlemode | G.652(A,B,C) | B1.1:Conventional fiber |
| G.652D | | B2: Zero dispersion shifted |
| G.655 | | B1.2 :Cut-off wavelength shifted |
| G.657(A1,A2 ,B3) | B4: Main technical data for positive |
| dispersion shifted single-mode fiber |
