Foshan Shunde Shengda Cable Co., Ltd. >> Aerial Fiber Optic Communication Systems Cable with Messenger

Aerial Fiber Optic Communication Systems Cable with Messenger

Aerial Fiber Optic Communication Systems Cable with Messenger
Price: US $ 0.05-0.5/Meter
Min Order: 10000/Meter
Pay Type: L/C,T/T
Prod Model: GYFTC8Y
Application: Communication
Type: Single-mode Fiber
Connection Structure: FC-FC
Certification: ETL
Allowed Lateral Pressure: 300/1000 (N/100mm)
Allowed Tensile Strength: 2000/5000 (N)
Brand: Shengda
Sheath Material: LSZH

Product Description

-------------------------------------------------------PRODUCT----------------------------------------------------
[General]

1. Name: Aerial Fiber Optic Communication Systems Cable with Messenger
2. Item Code: GYFTC8Y
3. Characteristics:
    1) The messenger wire together with OFC as a whole part. OFC installation can be completed at one time. Ease construction and less affected by environment, reducing installation cost.
    2) It adopts stranded galvanize steel wire with high tensile strength, which can meet the requirement of existing telephone pole.
    3) The reasonable structure design and precision control for over length ensure OFC with excellent performances of mechanical tensile strain and environment temperature.
    4) The close structure of SZ layer stranding preventing optical fiber from stress under bad environment.
    5) It could ensure moisture and water resistant performance of OFC with filling compound filled outside strength member and inside cable core.

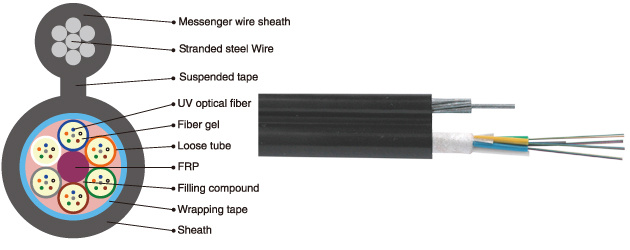

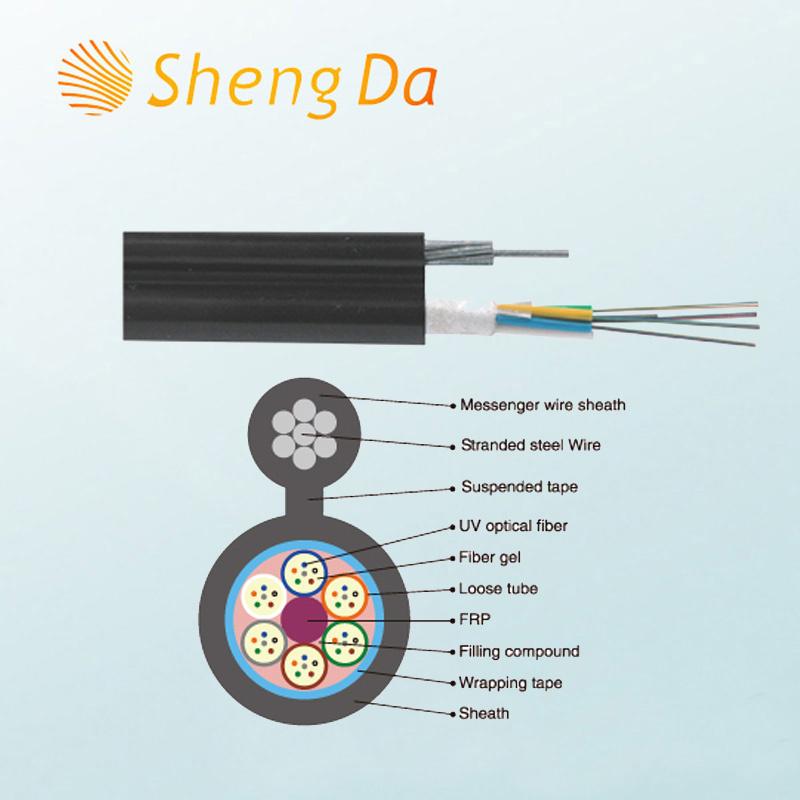

4. Picture:


[Specification]

Core Quantity2-3638-7274-96
Diameter (mm)10.510.711.9
Weight (Kg/km)170180210
Tensile Strength
Long/Short Term (N)
2000/50002000/50002000/5000
Crush Resistance
Long/Short Term (N/100mm)
300/1000300/1000300/1000
Bending Radius
Static/Dynamic
(mm)
10/2010/2010/20
Storage/operating
Temperature (ºC)
-40~+60-40~+60-40~+60

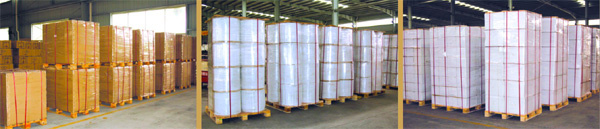

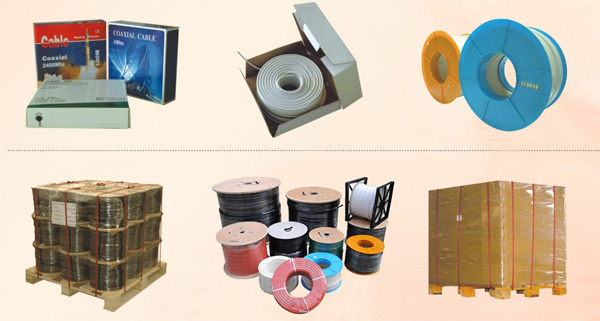

[Packing]


-------------------------------------------------------COMPANY----------------------------------------------------
[Overview]

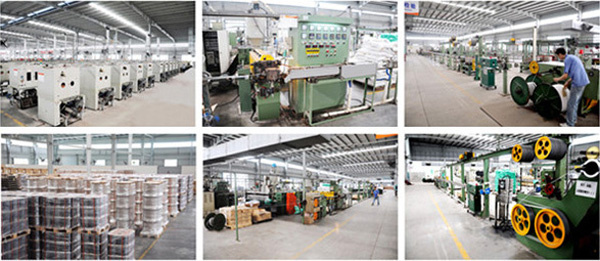

[Workshop]

[Storehouse]

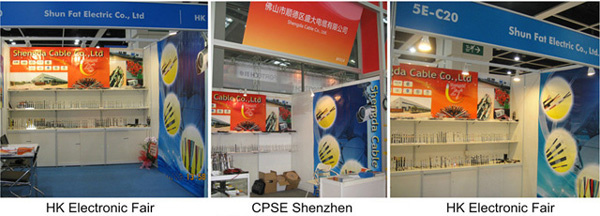

[Trade Show]


-------------------------------------------------------CONTACT----------------------------------------------------

Shengda Cable Co Ltd
Address: No.100, Changbao West Rd, Ronggui, Shunde, Foshan, Guangdong, China
Website: www.shengda-cable.com
Contact: Derek Li
Tel: 86-757-2638-9090
Fax: 86-757-2662-5464
Cell: 86-139-2487-1973

Shengda Cable Co Ltd, formerly known as Shun Fat Electric Manufactory, is affiliated to Shun Fat Innovations Limited, a company incorporated in Hong Kong. Located in Pearl River Delta, the most dynamic region in China Mainland, Shengda enjoys the benefits of what a center of advanced manufacturing and modern service industries brings.

Established in 1985, Shengda has over 300 skilled workers and a team of marketing and engineer experts. In October 2006, Shengda moved its office and factory into Shunde High Tech. Industrial Park, the most famous high tech. Industrial center in China. Shun Fat has a factory site of over 40, 000 square meters. In its 20, 000- square- meter gardenesque workshop, there are series of integrated production appliances, among which are 4 physical foaming machines, 4 PVC Jacket extrusion machines, 2 machines for production of alarm and security cables. There are also over 400 sets of braiding machines, 100 of them are of high speeding and the remaining are of multi-function. To make sure the quality control mechanism works effectively, Shengda is equipped with various kinds of testing instrument and facilities.

Shengda manufactures wide range of products from coaxial cables to security cables with a capacity of over 250, 000 kilometers and annual turnover of nearly RMB100 million. Its products meet standard globally and have been certified or approved by ISO9001, , CCC for China, UL & ETL for US, CSA for Canada, CE & LVD for Europe.

Shengda takes pride in its human assets, its professional staff with caring minds to serve and to improve. Shengda and its working team are making continuous efforts to pursue perfectionism in providing products and service.
