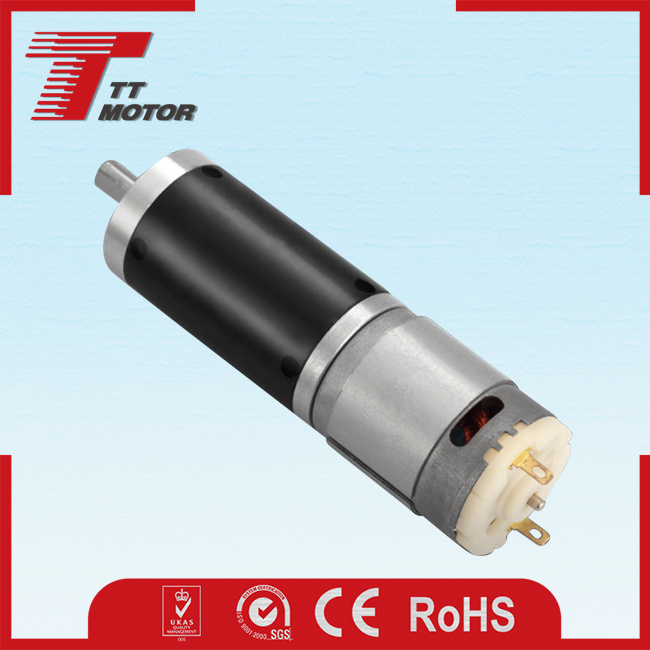

Aerospace instruments 1.6-3.2W DC planetary gear motor with RoHS/CE

Prod Model:	DC Planetary Gear MotorsGMP28-385SP
Product Name:	DC Planetary Gear MotorsGMP28-385SP
Reduction Ratio:	4
No-load Speed:	900-1300 rpm
Rated Speed:	810-1300rpm
Rated Torque:	0.14-0.19kg.cm
Rated Current:	200-600mA
Output Power:	1.6-3.2W
Max.momentary Tolerance Torque:	0.8-1.0kg.cm
Length:	28.5mm
Rated Voltage:	6-24V
Application:	Power Tools
Operating Speed:	Low Speed
Structure And Working Principle:	Brushless
Excitation Mode:	Permanent Magnet
Casing Protection:	Drip-proof
Type:	DC Planetary Gear Motors
Certification:	RoHS CE
Brand:	TT motor

Product Description

Aerospace instruments 1.6-3.2W dc planetary gear motor with ROHS/CE

Main Features
1.OEM/ODM 28mm gearbox plus 380&385 permanent magnet DC motor & 28mm brushless motor
2.Small size dc gear motor with low speed and big torque
3.28mm gear motor provide 2.0Nm torque and more reliable
4.Suitable to small diameter, low noise and big torque application
5.DC Gear motor can match enchoder, 11ppr
6.Reduction ratio:4,14,19,27,51,71,100,135,189,264,369,516,720

Model:Motor GMP28-385SP
TRS-385SP-0640	Rated voltage:6V DC	Rated speed:3250r/min	Output power:1.6W
	No-load speed:4000r/min	Rated torque:45g.cm	Stall torque:250g/cm
	No-load current:200mA	Rated current600mA	Stall current:2.5A
TRS-385SP-1265	Rated voltage:12V DC	Rated speed:5200r/min	Output power:3.2W
	No-load speed:6500r/min	Rated torque:60g.cm	Stall torque:310g/cm
	No-load current:150mA	Rated current:500mA	Stall current:2.0A
TRS-385SP-2454	Rated voltage:24V DC	Rated speed:4000r/min	Output power:2.5W
	No-load speed:5400r/min	Rated torque:60g.cm	Stall torque:240g/cm
	No-load current:100mA	Rated current:200mA	Stall current:0.7A


Gear motor technical data : GMP28-385SP-0640-XXX

Reduction ratio	4	19	27	51	100	189	264	369	516	720
Length mm	28.5	36	36	43	43	50	50	50	50	50
No-load speed rpm	900	190	140	75	38	20	15	11	8	5
Rated speed rpm	810	170	120	64	32	17	12	9	6	4
Rated torque kg.cm	0.14	0.6	0.9	1.4	2.7	4.7	6	8	11	13
Max.momentary tolerance torque kg.cm	0.8	3.3	4.7	7.6	15	26	30	30	30	30

Gear motor technical data : GMP28-385SP-1265-XXX

Reduction ratio	4	19	27	51	100	189	264	369	516	720
Length mm	28.5	36	36	43	43	50	50	50	50	50
No-load speed rpm	1500	330	230	120	63	34	23	16	12	8
Rated speed rpm	1300	270	190	100	52	27	20	14	10	7
Rated torque kg.cm	0.19	0.8	1.1	1.8	3.6	6	8	11	15	17
Max.momentary tolerance torque kg.cm	1.0	4.1	5.8	9.5	19	30	30	30	30	30

Gear motor technical data : GMP28-385SP-2454-XXX

Reduction ratio	4	19	27	51	100	189	264	369	516	720
Length mm	28.5	36	36	43	43	50	50	50	50	50
No-load speed rpm	1250	270	190	100	50	29	20	15	10	8
Rated speed rpm	1000	210	150	78	40	21	15	11	8	6
Rated torque kg.cm	0.19	0.8	1.1	1.8	3.6	6	8	11	15	17
Max.momentary tolerance torque kg.cm	0.8	3.2	4.5	7.3	14	25	30	30	30	30

Product Application

Other Applications:
Business Machines:	ATM, Copiers and Scanners, Currency Handling, Point of Sale, Printers, Vending Machines.
Food and Beverage:	Beverage Dispensing, Hand Blenders, Blenders, Mixers, Coffee Machines, Food Processors, Juicers, Fryers, Ice Makers, Soy Bean Milk Makers.
Home Entertainment and Gaming:	Gaming Machines, Video Games, Optical Disk Drives, RC and Power Toys.
Home Technologies:	Home Ventilation, Air Purifiers and Dehumidifiers, Range Hoods, Washers and Dryers, Refrigerators, Dishwashers, Floor Care, Whirlpool and Spa, Showers, Smart Metering, Coffee Machines.
Lawn and Garden:	Lawn Mowers, Snow Blowers, Trimmers, Leaf Blowers.
Personal Care:	Hair Cutting, Hair Care, Massagers.
Power Tools:	Drills and Drivers, Sanders, Grinders, Polishers, Saws.
Camera and Optical:	Video, Cameras, Projectors.

Packing & Delivery
Packaging: single carton packing, 100 pieces per box.
Shipping time:
DHL: 3-5 working days ;
UPS: 5-7 working days;
TNT: 5-7 working days;
FedEx: 7-9 working days;
EMS: 12-15 working days;
By Sea: Depends on which country

Our Company
TT Motor (HK) Industrial Co., Ltd has been specializing in micro motors, gear motors and their respective parts since 2000.
Our products are widely used in entertainment systems, automobiles, home and industrial appliances and tools and many others. Our products are dependable and long-lasting, and backed by years of experience. We export 98% of our output worldwide.
By leveraging our hard-won reputation for honesty, dependability and quality, TT Motor aims to continue as a pioneer in the sales overseas by seeking global partners. If your company is an end-user of micro-motors, a distributor or an agent, please contact us. We look forward to being able to work together with you in the near future.

FAQ
Q: How to order?
A: send us inquiry → receive our quotation → negotiate details → confirm the sample → sign contract/deposit → mass production → cargo ready → balance/delivery → further cooperation.
Q: How about Sample order?
A: Sample is available for you. please contact us for details. Contact us
Q: Which shipping way is avaliable?
A: DHL, UPS, FedEx, TNT, EMS, China Post,Sea are available.The other shipping ways are also available, please contact us if you need ship by the other shipping way.
Q: How long is the deliver?
A: Devliver time depends on the quantity you order. usually it takes 15-25 working days.
Q: My package has missing products. What can I do?
A: Please contact our support team and we will confirm your order with the package contents.We apologize for any inconveniences.
Q: How to confirm the payment?
A: We accept payment by T/T, PayPal, the other payment ways also could be accepted,Please contact us before you pay by the other payment ways. Also 30-50% deposit is available, the balance money should be paid before shipping.
