Air Conditioner Capacitors, Motor Run Capacitor for Air Conditioning

Name: Air Conditioner Capacitors, Motor Run Capacitor for Air Conditioning
Brand: all-electronics-online.com
SKU: 801622605
Availability: InStock
Rating: 4.5 (64 reviews)

Price:	US $ 0.1-5/Piece
Min Order:	10/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

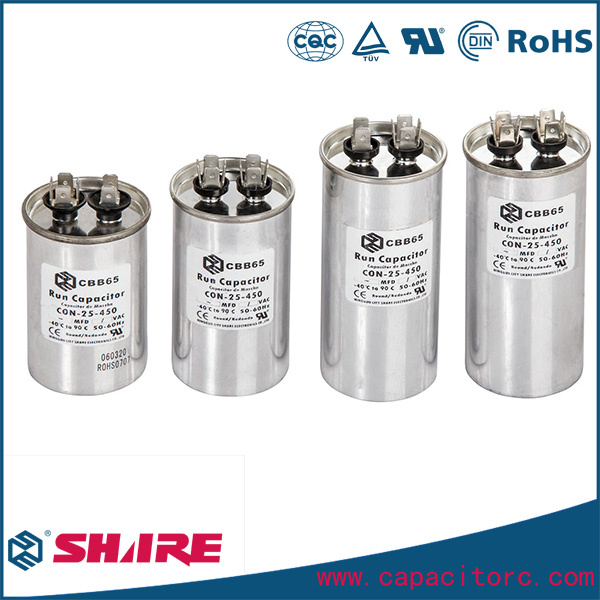

Air Conditioner Capacitor

CBB65 Capacitor Product Brief Introduction :
CBB65 type capacitor sealed in metal case is of little wastage,high insulation resistance, excellent natural repair, good stability,suitable for alternating current circuit, long working life, with inner anti-explosive device and safety reliability. this type capacitor is suitable used in the frequency of 50Hz - 60Hz,voltage from 250V - 500V single phase ac motors, refrigerator, air conditioner,house hold appliances, power supply etc. for starting and running.
Self-healing Capacitor Main Technical Data :

1	Implemented standard	GB/T3667 UL810 EN60252
2	Ambient Temperature	-40~+70ºC
3	Rated Voltage	250~500VAC
4	Test Voltage	T-T:1.75Un t:2s T-C:2000VAC t:10s
5	Capacitance Tolerance	J (±5%),K (±10%)
6	Dissipation Factor	Tg δ≤0.004 (50Hz,60 Hz 20ºC)
7	Insulation Resistance(20ºC)	≥2000MΩ.uF(500VDC,60S)
8	Fault Current	10000AFC(UL810)
9	Class of safety protection	P₂

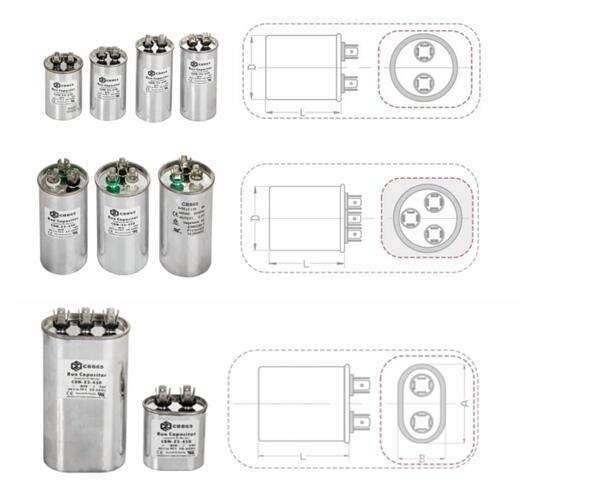

Capacitor Overall And Installation Dimension :

Capacitor Pressure Explosion-Pro of the ory :

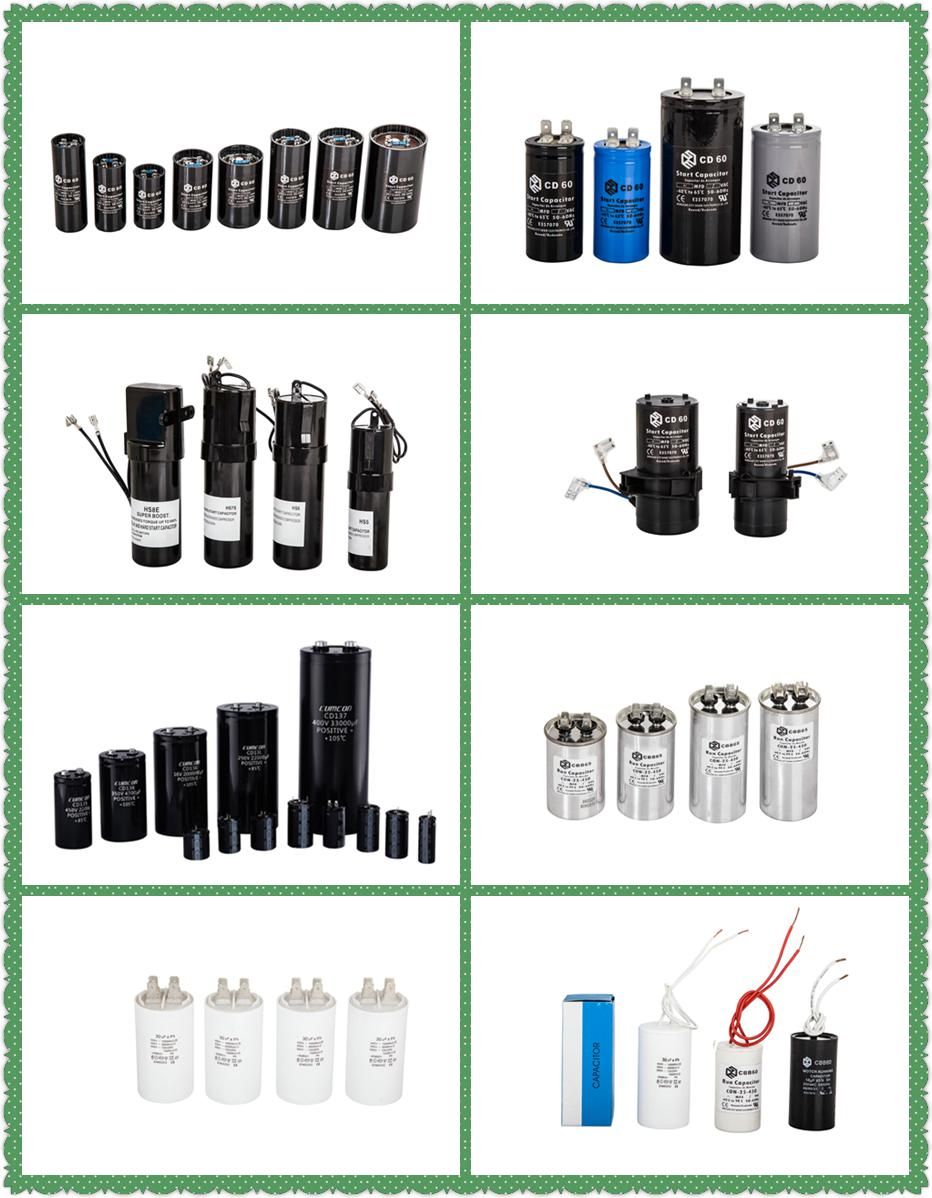

Related Air Conditioner Capacitors :

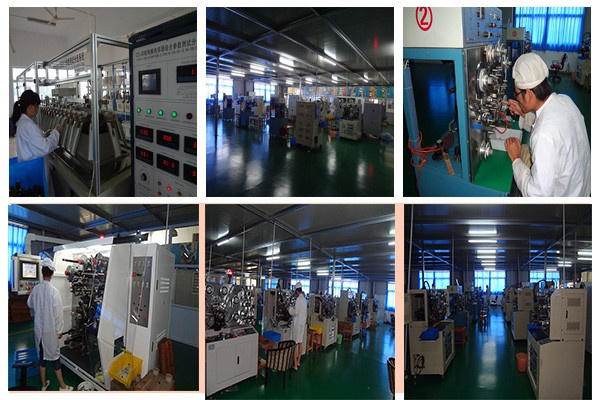

Capacitor Production Line :

Capacitor honor :

If you have any question,please contact us at any time.

Website:www.capacitorc.com

Prod Model:	CBB65
Delivery Time:	1 Week
OEM:	Available
Type:	Polypropylene Capacitor
Application:	Refrigerators, Compressors, Air Cooler
Package Type:	Through Hole
Electrolyte:	Vegetable Oil
Capacitance:	1~120UF
Tuning:	Film Capacitor
Filter:	Mpp Capacitor
