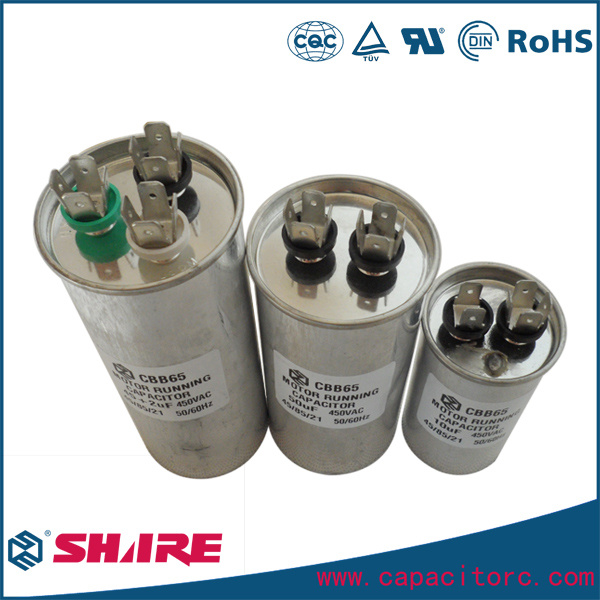

Cbb65 450V Motor Starting Air Conditioner Sh Capacitor

Name: Cbb65 450V Motor Starting Air Conditioner Sh Capacitor
Brand: all-electronics-online.com
SKU: 801653915
Availability: InStock
Rating: 4.6 (41 reviews)

Price:	US $ 0.1-5/Piece
Min Order:	10/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

CBB65 450V Motor Starting Air Conditioner SH Capacitor

CBB65 Capacitor Introduction:

CBB65 type capacitor sealed in metal case, high insulation resistance, excellent natural repair, good stability, suitable for alternating current circuit, long working life, with inner anti-explosive device and safety reliability. This type capacitor is suitable used in the frequency of 50hz - 60hz, voltage from 250v - 500v single phase ac motors, refrigerator, air conditioner, house hold appliances, power supply etc. for starting and running.

CBB65 Capacitor Main Technical Data:

1	Implemented standard	GB/T3667 UL810 EN60252
2	Ambient Temperature	-40~+70ºC
3	Rated Voltage	250~500VAC
4	Test Voltage	T-T:1.75Un t:2s T-C:2000VAC t:10s
5	Capacitance Tolerance	J (±5%),K (±10%)
6	Dissipation Factor	Tg δ≤0.004 (50Hz,60 Hz 20ºC)
7	Insulation Resistance(20ºC)	≥2000MΩ.uF(500VDC,60S)
8	Fault Current	10000AFC(UL810)
9	Class of safety protection	P₂

CBB65 Overall and Installation Dimension:

Nominal Capacitance,Rated Voltage And Case Size Table :

U_R(VAC)	C_R (uF)	Max.Dimensions
		D	H
370~450	4	40	55
	5
	8
	10	40	65
	12
	15	40	75
	17
	20
	25	45	100
	30	50	85
	35
	40	50	100
	45
	50	50	110
	55
	60	50	125
	70	55	125
	80
	100	60	125

Company Profile :

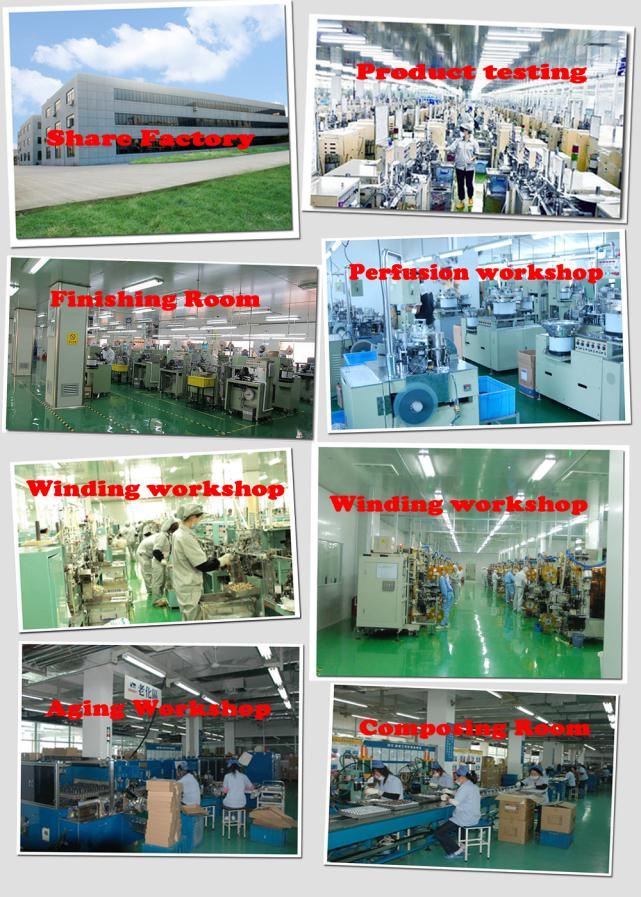

Company honor :

Prod Model:	CBB65
Type:	Polypropylene Capacitor
Application:	Fan
Package Type:	Through Hole
Capacitance:	1~120UF
