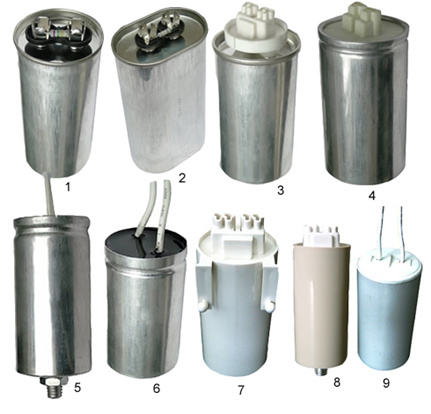

Air Conditioner Cbb Series Run Capacitor

Name: Air Conditioner Cbb Series Run Capacitor
Brand: all-electronics-online.com
SKU: 697322482
Availability: InStock
Rating: 4.6 (82 reviews)

Price:	US $ 1.2/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1500/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

1. We can supply all kinds of capacitor, run capacitor, fan capacitor. AC capacitor, air conditioner capacitor
2. Rated capacitance: 6-50UF
3. Capacitance tolerance: ± 5% (J), ± 10%~ ± 5% (U), ± 10% (K)
Rated Voltage: 250-450VAC
4. Rated frequency: 50/60Hz (low voltage) ≤ 50kHz (high voltage)
5. Dissipation factor: Tgδ ≤ 0.0020(100Hz)
6. Insulation resistance: T-T≥ 3000MΩ T-C≥ 1000MΩ
7. Climatic category: 40/70/21
8. Reference standard: GB/T3667: 1-2005 UL810
Applications
Broadly applied to starting and running of AC single-phase motors at 50Hz(60Hz) frequency for washers and high efficiency compressors of refrigerators etc.

Following are some models,we can do more.

MODEL		PRESSURE	DIMENSION
CBB65	30UF	370v	45*85
CBB65	35UF		45*85
CBB65	45UF		50*90
CBB65	50UF		50*90
CBB65	55UF		50*100
CBB65	60UF		50*110
CBB65	70UF		55*110
CBB65	30+5UF		50*95
CBB65	35+5UF		50*95
CBB65	40+5UF		50*105
CBB65	45+5UF		50*105
CBB65	45+7.5UF		50*110
CBB65	50+5UF		50*110
CBB65	50+7.5UF		50*110
CBB65	60+5UF		50*120
CBB65	70+6UF		55*125

CBB65	30UF	450v	50*85
CBB65	35UF		50*85
CBB65	45UF		50*100
CBB65	50UF		50*100
CBB65	55UF		50*110
CBB65	60UF		50*125
CBB65	70UF		55*125
CBB65	30+5UF		50*105
CBB65	35+5UF		50*105
CBB65	40+5UF		50*110
CBB65	45+5UF		50*120
CBB65	45+7.5UF		50*120
CBB65	50+5UF		50*120
CBB65	50+7.5UF		50*125
CBB65	60+5UF		55*125
CBB65	70+6UF		60*125

Pls contact me for more information.
Avy

Prod Model:	CBB
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model:	Cbb Series
Materials:	Al/Zl PP
Type:	Polypropylene Capacitor
Application:	Fan
Package Type:	Through Hole
Capacitance:	1-50uf
