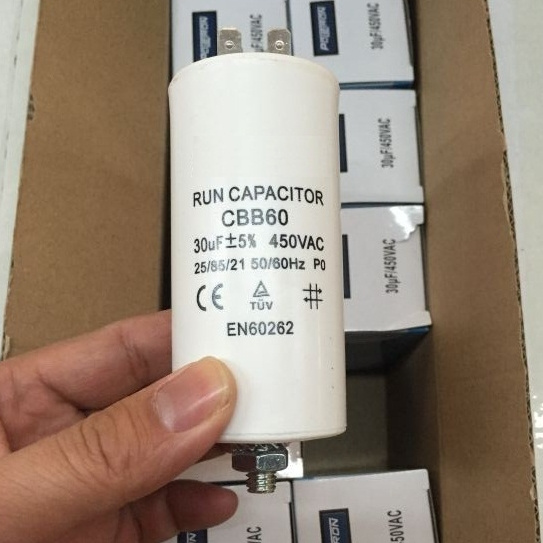

Cbb60 AC Motor Capacitor with VDE. Ce. RoHS. CQC Approvals
| Price: |
US $ 0.18/Piece |
| Min Order: |
1000/Piece |
| Pay Type: |
L/C,T/T,D/P |
CD60-B MOTOR START CAPAClTORSMain Feature:1.Bakelite case2.Voltages from 110V AC to 330V AC3.UL Recognized CapacitorsApplicable Scope :To start and run single phase m0tors in alternating current usage,And it suit for single phase A.C. motors with frequency of 50/60Hz.General Specifications:Operating Temperature:-25~+65°CVoltage Range:110~330V ACCapacitance Range:21~1280μfCapacitance Tolerance:+/-20%Operate Frequency:50/60HzCase Size:8 Standard Size from1 437"x2.750" ~2 562"x4.375"/36mm x 70mm~65mm x111mmTermination:1/4 " Quick Disconnect Terminals(Std.)Performance Specification:Meets Requirements of ElA-463-AProduct DescriptionCD60 start capacitor is developed and researched according to standard of AmericanElectronics Association (ANSI/EIA-463).The external case of the capacitor is made ofbakelite plasticized which Character is not only good insulating resistance. strong resistance damaged but also protecting electro liquid as good sealed feature. It is popularused for the super AC application as good life, higher degree of reliability and stability. Case size of Standard Products (mm)Rated Voltage
Capacitance Range | 110-125V | 165V | 220-250V | 330V |
| D X H |
| 21-25 | 36.5 x69.85 | 36.5 x69.85 | 36.5 x69.85 | 36.5 x69.85 |
| 25-30 | 36.5 x69.85 | 36.5 x69.85 | 36.5 x69.85 | 36.5 x69.85 |
| 30-36 | 36.5 x69.85 | 36.5 x69.85 | 36.5 x69.85 | 36.5 x69.85 |
| 43-53 | 36.5 x69.85 | 36.5 x69.85 | 36.5 x69.85 | 46.02 x85.72 |
| 53-64 | 36.5 x69.85 | 36.5 x69.85 | 36.5 x69.85 | 46.02 x85.72 |
| 67-77 | 36.5 x69.85 | 36.5 x69.85 | 36.5 x69.85 | 46.02 x85.72 |
| 88-108 | 36.5 x69.85 | 36.5 x69.85 | 46.02 x85.72 | 46.02 x85.72 |
| 124-149 | 36.5 x69.85 | 36.5 x69.85 | 46.02 x85.72 | 52.37 x111.12 |
| 161-193 | 36.5 x69.85 | 36.5 x85.72 | 52.37 x85.72 | 52.37 x111.12 |
| 200-240 | 36.5 x69.85 | 46.02 x85.72 | 52.37 x85.72 | 52.37 x111.12 |
Note:All other types of products in form can be fulfilled at the request of customers. | Case size | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 |
| Dimension(D x H)(mm) | 36.5 x69.85 | 36.5 x85.72 | 36.5 x111.12 | 46.02 x85.72 | 46.02 x111.12 | 52.37 x85.72 | 52.37 x111.12 | 65.50 x111.12 |
| Dimension(D x H)(mm) | 1.437 x2.750 | 1.437 x3.365 | 1.437 x4.365 | 1.812 x3.365 | 1.812 x4.365 | 2.062 x3.365 | 2.062 x4.365 | 2.562 x4.365 |
CBB60 COHERER POLYPROPYLENE CAPAClTORS SERlESMain Feature:Low dissipation factor,small inherent temperature rise.excellent self-healing stability,safety and high voltage withstand,etc.Applications:Used widely in washing machine,water pump,air conditioner and as well household electric appliances etc. to start and run single phase motors in alternating current usage. Techinnical Parameters:| Capacitance range | 1-150μf |
| Rated voltage Un | 250v.ac/400/450V.ac |
| Rated frequency | 50Hz;60Hz |
| Capacitance tolerance | ±5%;±10% |
| Climatic category | -25+70°C |
| Dissipation factor(at 50Hz-Hz and 20°C) | ≤0.002(100Hz,20°C) |
| Test voltage between terminals | 2×Un for 3s |
| Test voltage between terminals and case | 2×Un+1000VDC FOR 2s |
| Reference standard | EN 60252-1:2001;IEC252 |
| Prod Model: |
CBB60 |
| Type: |
Polypropylene Capacitor |
| Application: |
Fan |
| Package Type: |
Through Hole |
| Capacitance: |
1-120UF |
Jinan Retek Industries Inc. is a professional supplier in China, specializing in refrigeration parts. Our main products are refrigerator parts. Now we have two factories in China, manufacturing different kinds of refrigeration parts. One is mainly manufacturing condensers and evaporators. The other one is mainly manufacturing copper filter driers, accumulators and access valves.
With the idea of "Best Products, Best Price and Best Services", our company spares no efforts to achieve the target of "Being the best one, not better one". We concentrate on our products, and hope to provide our customers with best quality products at best price. We know we are young, and we are able to make great progress in future. We have great confidence in our products.
Now we sell our products mainly to refrigerator, freezer and water cooler factories in more than 15 countries and areas, including China, Pakistan, Italy, the USA and Russia. We also welcome customers all over the world to visit our company and set up business relationship for further development.
