Air-Cooled LV Transformer Isolation Transformer High Accuracy 100kVA

Name: Air-Cooled LV Transformer Isolation Transformer High Accuracy 100kVA
Brand: all-electronics-online.com
SKU: 712119192
Availability: InStock
Rating: 4.3 (117 reviews)

Price:	US $ 267-58016/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

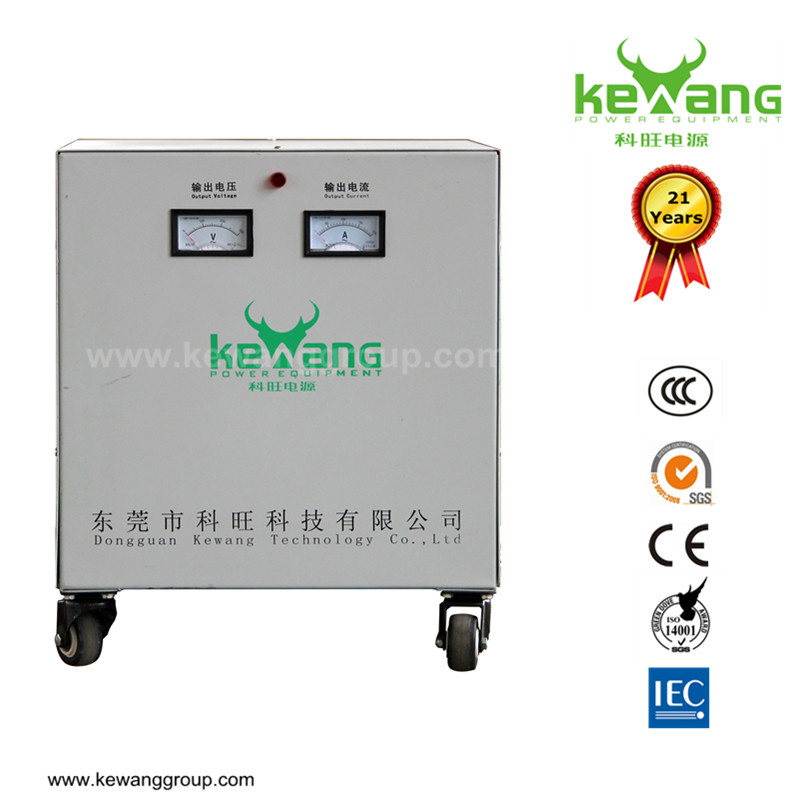

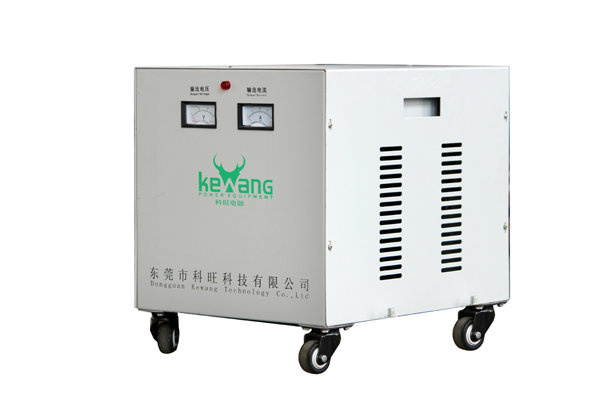

Se Series Air-Cooled LV Transformer Isolation Transformer High Accuracy 100kVA

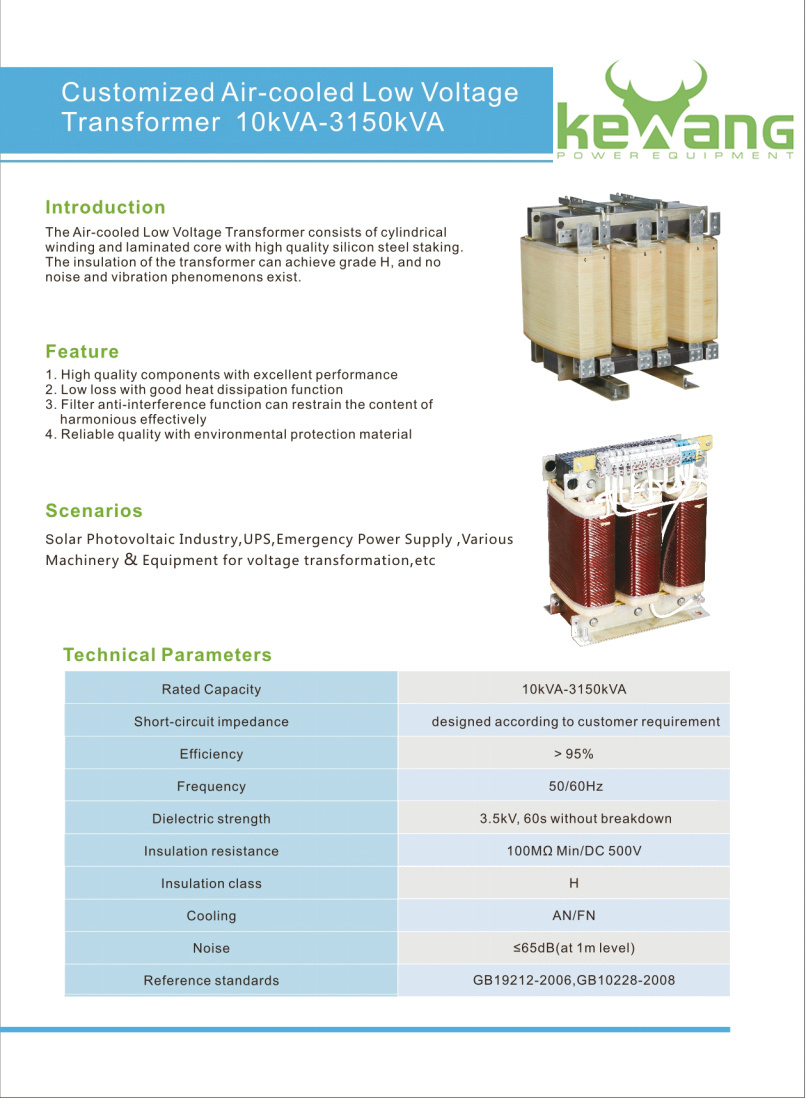

Product Introduction
Adopted high quality materials and advanced techniques, by air cooled method, via vacuum pressure impregnating and strict quality-inspection, SE air-cooled LV transformers possess following features: high efficiency, low loss, low noise, high reliability and strong load capacity;SE air-cooled LV transformers are classified into: auto transformer, isolation transformer, single phase transformer and three-phase transformer;
Input voltage: three-phase 440V,420V,400V,380V,etc.
Output voltage: three-phase 440V,380V,220V,200V,190V,120V,100V,etc.
Single phase and special products can be made as per requirements

Application:
Applied to the machineries with operating voltage less than 1000V:Precise instruments, test equipment, electric equipment, production lines, railways, R&D science technology institutions.

Specifications
SE Air-cooled Three-phase Auto Transformer Specification
Model	Capacity(kVA)	Dimension(W×D×H)mm	Weight (kg)
SE-10	10	500×400×500	75
SE-15	15	500×400×500	85
SE-20	20	600×500×520	110
SE-30	30	600×500×520	120
SE-40	40	600×500×520	130
SE-50	50	600×500×520	160
SE-60	60	600×500×520	170
SE-80	80	720×560×800	230
SE-100	100	720×560×800	240
SE-150	150	720×560×800	280
SE-200	200	880×680×980	420
SE-250	250	880×680×980	460
SE-300	300	880×680×980	500
SE-350	350	1180×880×1280	580
SE-400	400	1180×880×1280	620
SE-500	500	1180×880×1280	700
SE-600	600	1280×950×1500	880
SE-800	800	1280×950×1500	980
SE-1000	1000	1400×1100×1700	1200
SE-1250	1250	1400×1100×1700	1400

SE Air-cooled Three-phase Isolation Transformer Specification
Model	Capacity(kVA)	Dimension(W×D×H)mm	Weight (kg)
SE-10	10	600×500×520	110
SE-15	15	600×500×520	130
SE-20	20	600×500×520	160
SE-30	30	600×500×520	170
SE-40	40	720×560×800	240
SE-50	50	720×560×800	280
SE-60	60	720×560×800	320
SE-80	80	880×680×980	420
SE-100	100	880×680×980	460
SE-120	120	880×680×980	500
SE-150	150	1180×880×1280	580
SE-200	200	1180×880×1280	620
SE-250	250	1180×880×1280	700
SE-300	300	1280×950×1500	880
SE-400	400	1280×950×1500	980
SE-500	500	1400×1100×1700	1200
SE-600	600	1400×1100×1700	1400
SE-800	800	1600×1200×1900	1800
SE-1000	1000	1600×1200×1900	2200
SE-1250	1250	1800×1500×2200	2800

Above size and weight only for reference

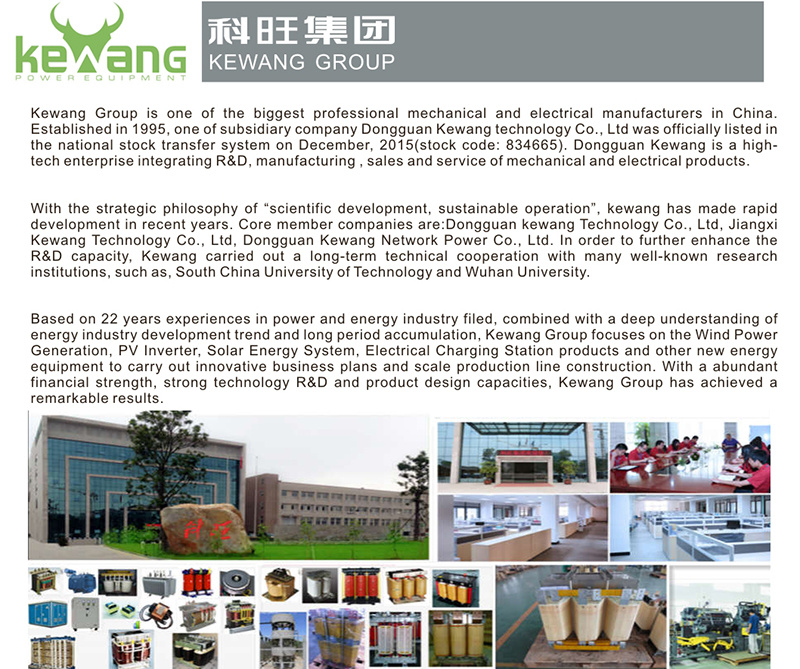

Company Profile of KeWang Group

Main machines we use for manufacturing
Voltage regulators / stabilizers, gensets, tranformers,UPS etc
Machines for production
Vertical winding machine
Toroidal Winding Machine
Foil winding machine
Vacuum impregnation machines
Machines for testing
3 Phase intelligent power measuring electric meter
Negative load test box
Aging test room

Quality Assurance System of Kewang Group
1.Supplier Evaluation
2.Income Inspection ( Material Purchasing )
3.Testing (Winding ) ( Lamination stacking )(VPI Peration)
4.F/G Ispection ( Assembling and Cleaning )
5.Packing
6.Shipping

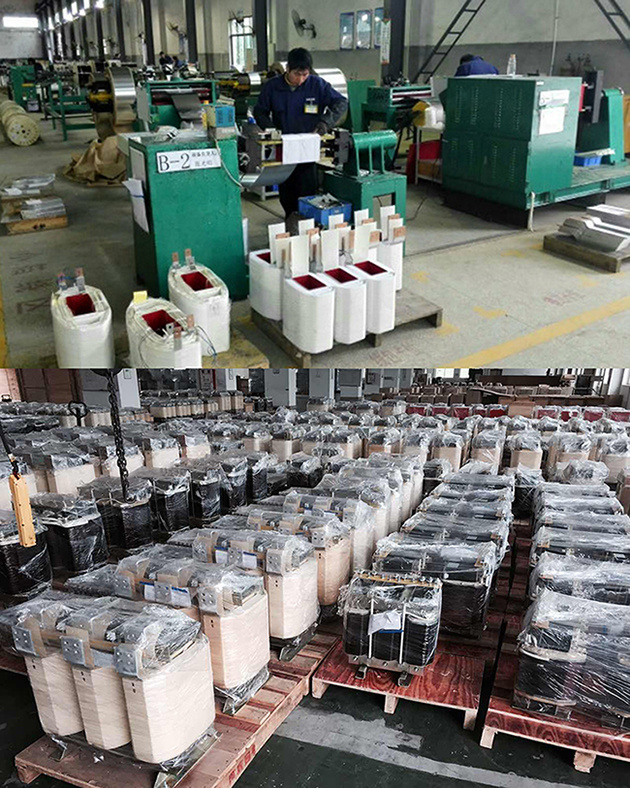

Factory View

Canton Fair

Shipment

Our Service
1.Quick response in before sales period help you got order
2.Excellent service in production time let you know each step we made
3.Reliable quality solve you aftersale headache

FAQ

Q1: What is the Guarantee?   A1: 12 months (for free) from the date of B/L.
Important: 1. The efficiency of our Voltage Regulators / Stabilizers are 90% to 95%
  (some series of them reaches 95%), please don't let them work overload!
2. Please make sure that all the electric wires are connected correctly
according to the electric diagram!

Q2: Can we put/show our own Logo on your products?
A2: Yes, no problem, however, the quantity should be a bit bigger.

Q3: For your products, can we take our Favourite Colours?
A3: Yes, no problem. But we need certain quantity , all colors need to be debugged.

Q4: Is OEM/ODM available?
A4: Yes, it is! Our products can be Customized. We have 20 senior engineers in our R&D Dept.,
we design and produce all kinds of Automatic Voltage Regulators/Stabilizers ,transformers
according to our customers' specific requirements.

Q5: How about the Packing?
A5:All exported goods are packed with compsite board cartons , so that we could better protect
our roducts and also easier for being piled up

Q6: How about the Delivery Time?
A6: Generally speaking, it takes us 20 days to produce the goods after deposit or L/C.

Q7: What is your monthly output? A7: 6000pcs

Q8: What is the MOQ?
A8: For the small capacity products (Automatic Voltage Regulators/Stabilizers) of the
default configuration, it is 5 sets. For the big capacity products, it is 1 set.

Q9: How about the Delivery Terms?
A9: By sea or by air or by road, FOB ,CFR, CIF, etc. any is acceptable to us.
Besides, some items can be sent by international express, such as DHL,TNT,UPS,EMS, Fedex, etc.

Q10: Can you offer Form A or Form E or C/O ?
A10: Yes, no problem, we can apply for it from our local government.

Q11: What kind of Certificates do you have?
A11:  ISO9001:2008 ( Register Number : UQ110457R0) (Website :www.uicc-web.com)
          ISO14001:2004 ( Register Number :UE120063R0) (Website :www.uicc-web.com)
          CE can made according to customers' requirements
          Fifth-Class Qualification of Transmission and Distribution projects.
          License of Telecom Equipments Network (issued No. 25-4751-011468)
          Member of CPSS (ZHGT ZI No. 654)
          High-Tech Enterprise

Q12 :What patents do you have ?
1.)Patent Name : UPS power with dual core isolation transformer leakage inductance
  Patent Number : ZL200420095777.2
2.) Patent Name : Three-phase UPS load output isolation transformer balanced structure
  Patent Number : ZL200520067082.8
3.) Patent Name : Adjustable Precision winding mode for the square core transformer and reactor coils
  Patent Number : ZL201220003826.X
4.) Patent Name : An improved three phase shift reactor
   Patent Number : ZL201220004052.2
5.) Patent Name : An improved phase-shifting rectifier transformer
  Patent Number : ZL201220035747.7
6.) Patent Name : Oblique laminations for transformer means sewn directly or reactor core in square
  Patent Number : ZL201220035746.2
7.) Patent Name : An easy cooling coil transformers and reactors
Patent Number : ZL201220202948.1
8.) Patent Name : A co-yoke filter reactor
Patent Number : 201,210,144,509.4
9.) Patent Name : PV isolation transformer cores for tensioning devices
  Patent Number : ZL201320174097.9
10.) Patent Name : Winding mold for photovoltaic reactor with iron core
  Patent Number : ZL201320174024.X
11.) Patent Name : Parking solar charging station
   Patent Number : ZL201220732233.7
12.) Patent Name : An inverter PV filter reactor coils
Patent Number : 201,320,816,933.9
13.) Patent Name : For transformer or reactor coil end insulating structure
Patent Number : 201,320,817,109.5

Q13: What is the Terms of Payment?
A13: L/C, T/T

Q 14.What to do?
A 14. To enter into a long term good/happy business relationship on the basis of mutual benefit,
please contact us now.We'll answer/reply you within 24 hours (except our holidays) after we see your inquires.

Prod Model:	SE-100
Rated Capacity:	10kVA~1250kVA
10kVA~1250kVA:	50Hz/60Hz
Coupling:	Yna0 Dyn11
Insulation Class:	B/F/H
Power Frequency Withstand Voltage:	3000V60s
Efficiency:	>95%
Insulation Resistance:	500VDC>5mΩ
Application:	Audio
Phase:	Three
Coil:	Core-type Transformer
Cooling Method:	Dry-type Transformer
Winding Type:	Two-winding Transformer
Frequency Characteristics:	Industrial Frenquency
Brand:	Kewang

Kewang Group is one of the largest professional provider and leader in the new energy and power distribution filed in China whose business covers power devices for Wind power, Solar power, and Natural Gas Energy. It's dedicated to R&D, manufacturing, sales & engineering of high/ low voltage transmission, distribution devices & related power devices. Moreover, it provides integrated solutions for enterprises power supply, data center, and distributed new energy. Kewang has been serving for royal customers over 40 countries, with recognized good quality & professional service.

As a leading power supply company, Kewang Group had taken the lead to be qualified with the ISO9001 quality system certification & ISO14001 environment system certification, and the CCC China mandatory certification. Our products are qualified with European CE certification and American UL certification. We had taken 11 projects nominated by the local government: 4 of which had won government's scientific prizes, and over 30 patents had been achieved. We keep consistent cooperation with South China University of Technology and Wuhan University. With the introduction of high class technical talents, we integrate various resources for R&D, quality& management improvement-- these cooperation enable us to set up strong advantages in techniques, talents & brand promotion.

Product line:

1. Customized Transformer & Reactor for application of UPS, PV Inverter, Electrical Car Station, etc.

2. RlS Series Contactless Intelligent type Voltage Stabilizer

3.1kw-5kw Smart Solar Energy Storage System with built in Inverter and Battery

4. DBW/SBW Dry type Voltage Regulator

5. SE series Air-cooled Transformer

6. UPS

7. Generator Set
