Prod Model: |
KW-SE |
Input Voltage: |
440V,420V,400V,380V |
Output Voltage: |
400V,380V,220V,200V,190V,120V,100V |
Compatible Voltage: |
Less Than 1000 V |
Where We Use: |
Precise Instruments, Test Equipments etc |
Frequency: |
50Hz/60Hz |
Current: |
More Than 50A |
Product Name: |

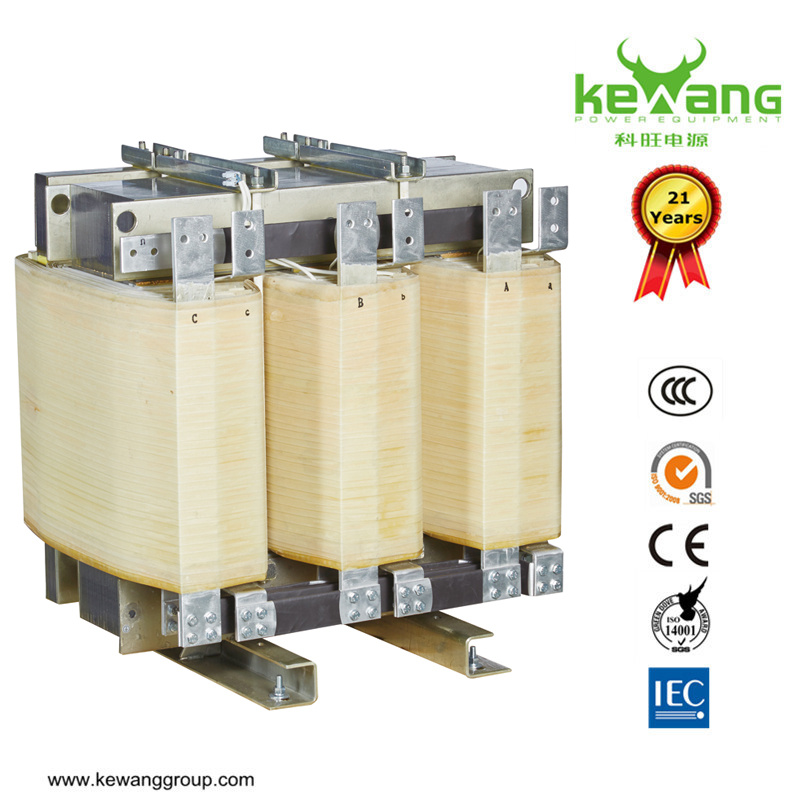

Kewang 120kVA Dry Type Step up Transformer |
Application: |
Electronic |
Phase: |
Three |
Coil: |
Core-type Transformer |
Cooling Method: |
Dry-type Transformer |
Winding Type: |
Separated Winding Transformer |
Brand: |
Kewang |
Product Description
Kewang Customized Reactor/Choke for UPS/Inverter/EV Charger/Testing MachineProduct Introduction

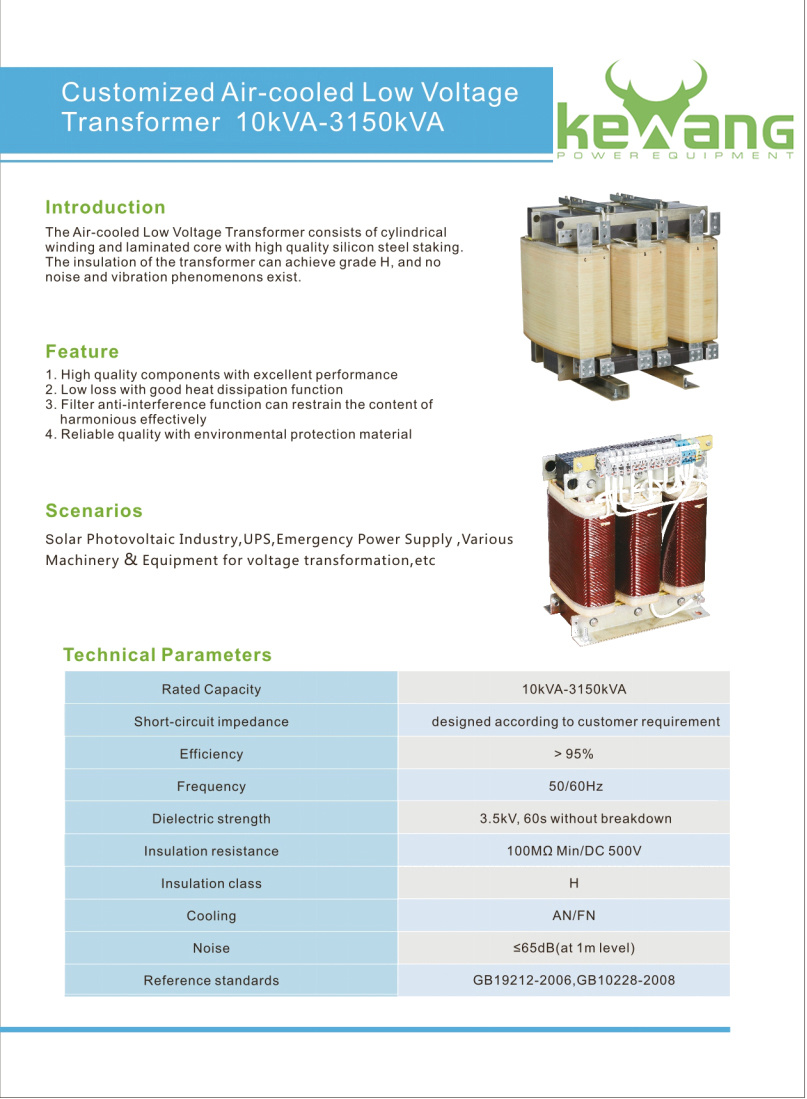

Adopted high quality materials and advanced techniques, by air-cooled method, via vacuum pressure impregnating and strict quality-inspection, SE air-cooled LV transformers possess following features: high efficiency, low loss, low noise, high reliability and strong load capacity;
SE air-cooled LV transformers are classified into: auto transformer, isolation transformer, single phase transformer and three-phase transformer;Company ProfileFactory ViewSpecificationsSpecifications |
SE Air-cooled Three-phase Auto Transformer Specification |
Model | Capacity(kVA) | Dimension(W×D×H)mm | Weight (kg) |
SE-10 | 10 | 500×400×500 | 75 |
SE-15 | 15 | 500×400×500 | 85 |
SE-20 | 20 | 600×500×520 | 110 |
SE-30 | 30 | 600×500×520 | 120 |
SE-40 | 40 | 600×500×520 | 130 |
SE-50 | 50 | 600×500×520 | 160 |
SE-60 | 60 | 600×500×520 | 170 |
SE-80 | 80 | 720×560×800 | 230 |
SE-100 | 100 | 720×560×800 | 240 |
SE-150 | 150 | 720×560×800 | 280 |
SE-200 | 200 | 880×680×980 | 420 |
SE-250 | 250 | 880×680×980 | 460 |
SE-300 | 300 | 880×680×980 | 500 |
SE-350 | 350 | 1180×880×1280 | 580 |
SE-400 | 400 | 1180×880×1280 | 620 |
SE-500 | 500 | 1180×880×1280 | 700 |
SE-600 | 600 | 1280×950×1500 | 880 |
SE-800 | 800 | 1280×950×1500 | 980 |
SE-1000 | 1000 | 1400×1100×1700 | 1200 |
SE-1250 | 1250 | 1400×1100×1700 | 1400 |
SE Air-cooled Three-phase Isolation Transformer Specification |
Model | Capacity(kVA) | Dimension(W×D×H)mm | Weight (kg) |
SE-10 | 10 | 600×500×520 | 110 |
SE-15 | 15 | 600×500×520 | 130 |
SE-20 | 20 | 600×500×520 | 160 |
SE-30 | 30 | 600×500×520 | 170 |
SE-40 | 40 | 720×560×800 | 240 |
SE-50 | 50 | 720×560×800 | 280 |
SE-60 | 60 | 720×560×800 | 320 |
SE-80 | 80 | 880×680×980 | 420 |
SE-100 | 100 | 880×680×980 | 460 |
SE-120 | 120 | 880×680×980 | 500 |
SE-150 | 150 | 1180×880×1280 | 580 |
SE-200 | 200 | 1180×880×1280 | 620 |
SE-250 | 250 | 1180×880×1280 | 700 |
SE-300 | 300 | 1280×950×1500 | 880 |
SE-400 | 400 | 1280×950×1500 | 980 |
SE-500 | 500 | 1400×1100×1700 | 1200 |
SE-600 | 600 | 1400×1100×1700 | 1400 |
SE-800 | 800 | 1600×1200×1900 | 1800 |
SE-1000 | 1000 | 1600×1200×1900 | 2200 |
SE-1250 | 1250 | 1800×1500×2200 | 2800 |
Above size and weight only for reference

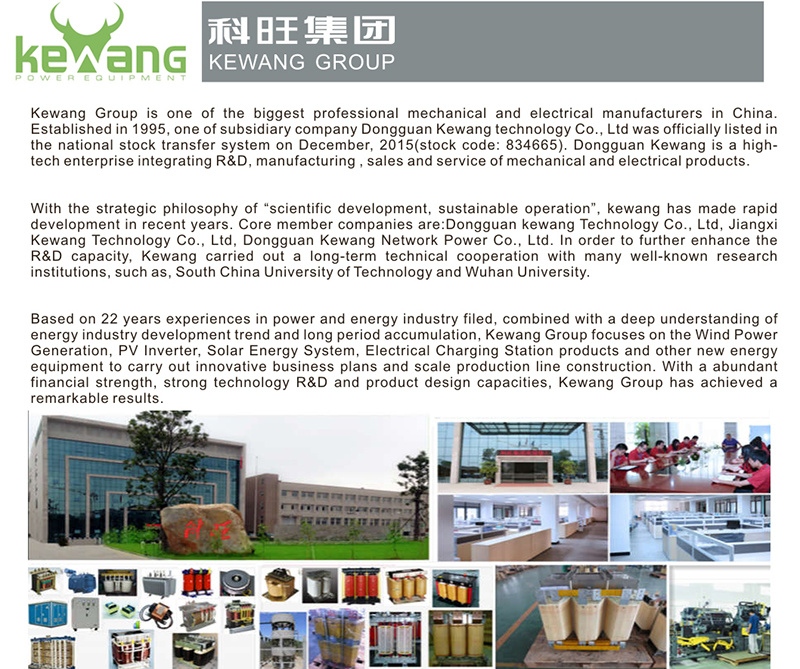

Kewang Group is one of the largest professional provider and leader in the new energy and power distribution filed in China whose business covers power devices for Wind power, Solar power, and Natural Gas Energy. It's dedicated to R&D, manufacturing, sales & engineering of high/ low voltage transmission, distribution devices & related power devices. Moreover, it provides integrated solutions for enterprises power supply, data center, and distributed new energy. Kewang has been serving for royal customers over 40 countries, with recognized good quality & professional service.
As a leading power supply company, Kewang Group had taken the lead to be qualified with the ISO9001 quality system certification & ISO14001 environment system certification, and the CCC China mandatory certification. Our products are qualified with European CE certification and American UL certification. We had taken 11 projects nominated by the local government: 4 of which had won government's scientific prizes, and over 30 patents had been achieved. We keep consistent cooperation with South China University of Technology and Wuhan University. With the introduction of high class technical talents, we integrate various resources for R&D, quality& management improvement-- these cooperation enable us to set up strong advantages in techniques, talents & brand promotion.
Product line:

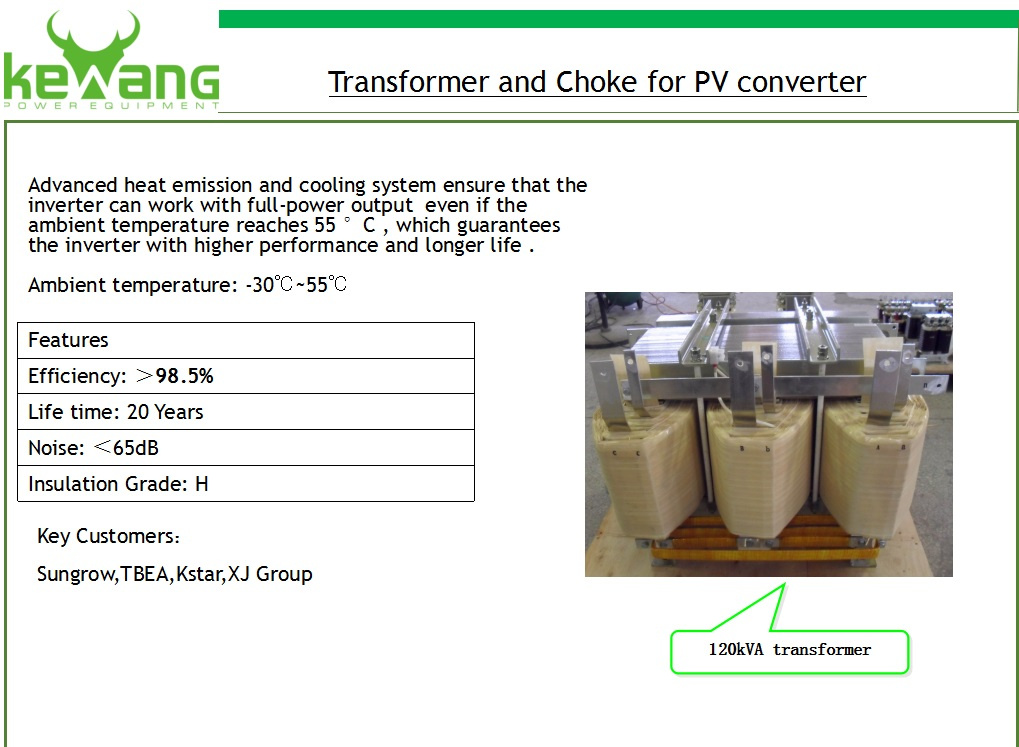

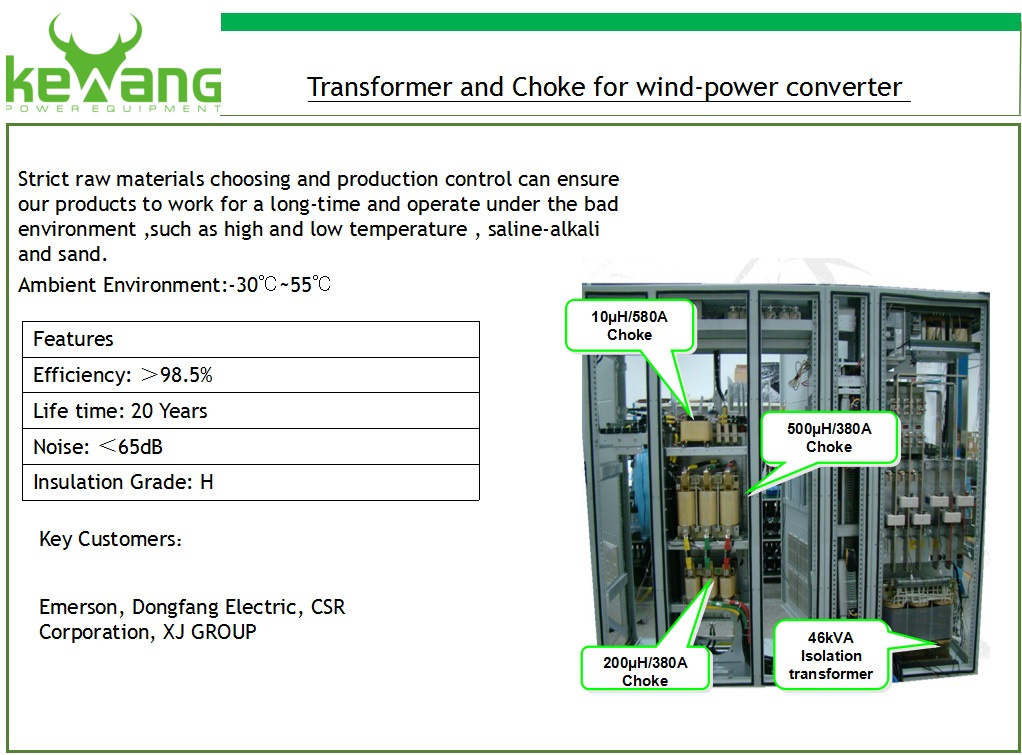

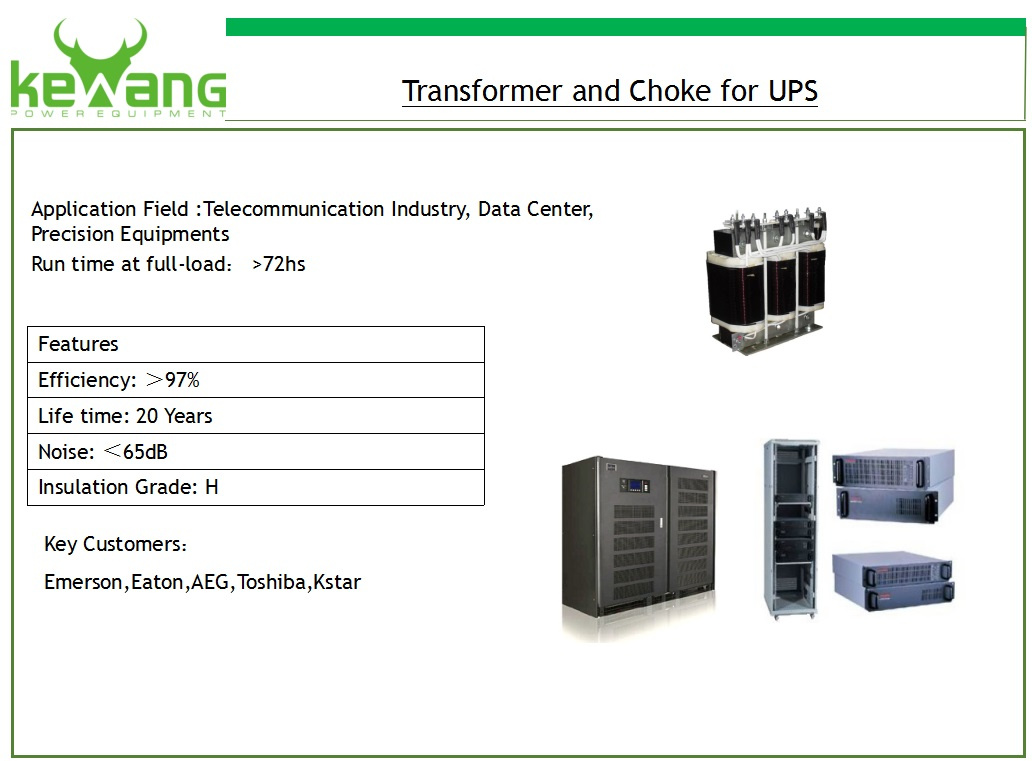

1. Customized Transformer & Reactor for application of UPS, PV Inverter, Electrical Car Station, etc.
2. RlS Series Contactless Intelligent type Voltage Stabilizer
3.1kw-5kw Smart Solar Energy Storage System with built in Inverter and Battery
4. DBW/SBW Dry type Voltage Regulator
5. SE series Air-cooled Transformer
6. UPS
7. Generator Set
