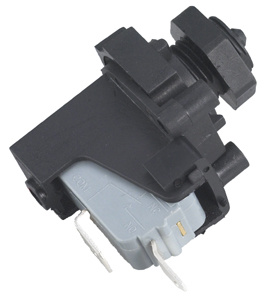

Air Micro Switch of Food Waste Processor

Name: Air Micro Switch of Food Waste Processor
Brand: all-electronics-online.com
SKU: 829338365
Availability: InStock
Rating: 4.3 (147 reviews)

Price:	US $ 0.89-1.5/Piece
Min Order:	100/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

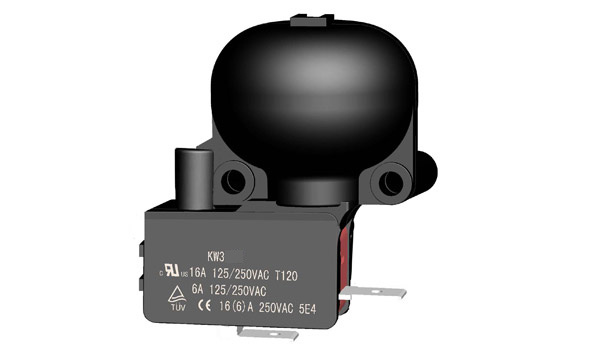

Prod Model:	KW3A
Electricity:	3--10A
AC Voltage:	220--380V
Mechanical Life:	>100000cycles
Electrical Life:	>50000cycles
Frequency:	50/60Hz
Operating Speed:	0.1mm-1m/S (No Lever)
Operating Frequency:	Mechanical 60 Cycles/Min,Electrical 25 Cycles/Min
Insulation Resistance:	>100mΩ
Contact Resistance:	Terminal Type,30mΩ Wire Type,100mΩ
Safety Approvals:	Ce UL VDE TUV
Pressing Type:	Push-Button
Protection:	Waterproof
Size:	Normal Size
Environment:	﹤250℃
Breaking Capacity:	General Type
Breaking Form:	Single Type

Product Description

Micro switch can be widely used in Mouse,Security products,Doorbell,Automotive electronics,Communication equipment,Military products,Measuring and test instruments,Gas water heater,Gas burner,Small home appliances,Microwave Oven, Electric rice cooker,Floating ball equipment match,Medical apparatus and instruments,Building Automation,Electrical tool and General Electric,Wireless radio sets.

power rating:16(4)A 250VAC 16(4)A 125VAC

contact resistance:≤30mΩ

insulat resistance:≥7MΩ

Dielectric strength:pole and pole 1000VAC,pole and housing 1500VAC

ambient temperature:T125

Electrical life:5E4

contact resistance ≤10mΩ
2.dump angle:30--45°

Product Overview : 1.Nice appearance,tight configuration.Characteristic:small contact clearance, quick action, high sensitivity and small operating travel. 2.Long life, high reliability. 3.A variety of contact terminals

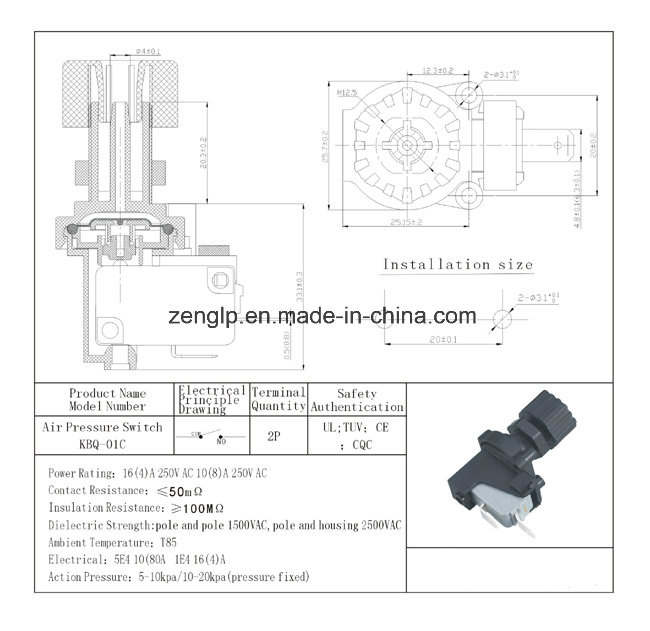

power rating	16(4)A 250VAC 10(8)A 250VAC
contact resistance:	≤50mΩ
insulation resistance	≥100MΩ
Dielectric strength:	pole and pole 1500VAC ,pole and housing 2500VAC
ambient temperature	T85
electrical:	5E4 10(8)A 1E4 16(4)A
action pressure:	5 10kpa/10--20kpa(pressure fixed)

. Dongguan Avoa Electric Co., Limited located on the China guangdong, is specialized in producing electronics components, power switch, plugs & sockets, connectors applied to Household appliances, vacuum cleaners, sound sets. In addition, the company produces plastic-pressing (big, MID or small) and metallic-pressing parts, and may design all kinds of plastic die sets for our numerous customers also.

With a plant area of 5000 square meters and a building area of 5500 square meters, our company owns fully reinforced strength, complete test equipment inspecting methods and perfect quality system. Our products have passed the, CQC certificates of China Quality Certification center. Some products also passed UL Approbation of U. S. A or TUV Approbation of German Rheinland Technical Co., Ltd.

Our products are on sales everywhere domestically and are exported to Hong Kong, Taiwan, Europe and U. S. A For instance, the power switch of KBQ02B, KAG01A series of vacuum cleaner gain the UL certificate for the first time in the manufactory of China. So, the power switches were preferred by broad customers.

Our companys' essential principle is "Quality First and Reputation First", we will meet our customers' needs by the best quality and after-sales service. We cordially welcome the clients home and abroad to correspond and discuss with us and create the splendid enterprise hand by hand.
