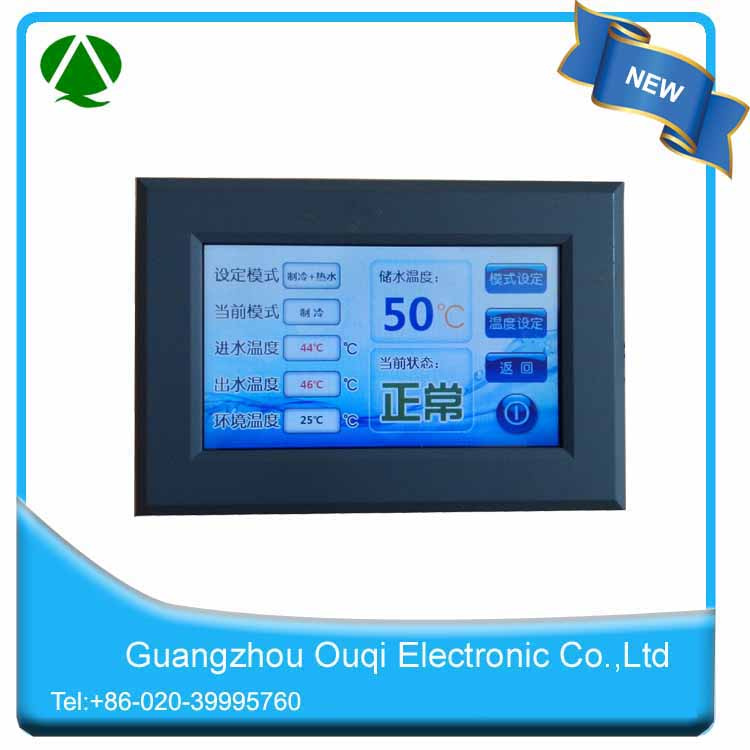

Air Sour Heat Pump Controller

Name: Air Sour Heat Pump Controller
Brand: all-electronics-online.com
SKU: 797427065
Availability: InStock
Rating: 5 (44 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Air Source / Water Source / Inverter heat pump controller

Guangzhou Ouqi Electronic Co., Ltd offer kinds of controllers, quality assurance.
Wide range of product line and advanced technology with the design concepts of High quality, special requirements also can be tailor made.
Welcome to contact us for more information.

Controller Functions:

air source, or water/Geo source;
Discharge temperature, pipe temperature, water tank temperature, ambient temperature; inlet temperature, outlet temperature.
Compressor, 4-way valve, one or two speed fan, electric heater
EEV, EVI;
Defrosting function, anti-freezing, heat recovery;
Heat only, cool only, heat + cool, heat + cool + DHW, heat + cool + auto mode;
Water flow switch, high/low pressure protection;
3-phase protection, current protection, 4 grade anti-freezing function;
Can control 1 to 4 or more compressors;
Centralized control , Energy level control
Water side anti-freeze protection, user side anti-freeze protection.
.LCD display, error display, quick parameter setting, easy operation.

Product List
Main board, Panel display, Transformer, Temperature Sensors, Connect cable.

Product Type	Application	1 Compressor	2 Compressor	3 Compressor	4 Compressor	B Type Display Panel	C Type Display Panel	4.3" Color Touch Screen Panel	7" Color Touch Screen Panel	Centralized Control	Netwoked Control
Series	Controller for:	Option
Air Source	Fluorine Circulation Domestic Heat Pump	V			V	V	V	V	V
	Water Cycle Domestic Heat Pump	V			V	V	V	V	V
	Swimming Pool Heat Pump	V	V	V	V	V	V	V	V	V	V
	Circulation Industry Heat Pump	V	V	V	V	V	V	V	V	V	V
	Direct Heat +Circulation Heat Pump	V	V	V	V	V	V	V	V	V	V
	Chiller Air-cooled Heat Pump Chiller Chiller Air Conditioning Unit	V	V	V	V	V	V	V	V	V	V
	Heat Recovery Unit Multi-function Heat Pump	V	V	V	V	V	V	V	V	V	V
	A Type Multi-function Heat Pump ( heat+cool+DHW)	V			V	V	V	V	V	V	V
	B Type Multi-function Heat Pump ( heat+cool+DHW)	V			V	V	V	V	V	V	V
	Heating Multi-function Heat Pump	V	V	V	V	V	V	V	V	V	V
	Hight Temperature Heat Pump	V	V	V	V	V	V	V	V	V	V

Water Source	Domestic Water Source Heat Pump	V				V	V	V	V
	Heating and Cooling heat pump	V	V	V	V	V	V	V	V	V	V
	Heat Recovery Heat Pump	V	V			V	V	V	V	V	V
	Double Source Heat Pump	V	V			V	V	V	V	V	V
	A Type Multi-function Heat Pump ( heat+cool+DHW)	V	V			V	V	V	V	V	V
	B Type Multi-function Heat Pump ( heat+cool+DHW)		V			V	V	V	V	V	V
Drying Controller		Widely used in all kinds of agricultural products, industrial baking/drying occasions, such as tobacco, fruit, aquatic product, meat, wood etc 1. 10 sets of timer 2. 11 modes can be option: drying, drying+hydrofuge, . drying+hydrofuge+humidification, dryinge+humidification, dehumidification, dehumidification+hydrofuge, cool-dry, humidification, drying+humidification, drying+dehumidification+hydrofuge, cooling+hydrofuge. 3. Temperature and humidity precision: 0.1
Inverter Heat Pump Controller		High integration High quality of design Important components using high-quality imported components, like Mitsubishi IPM, NEC IC etc. Multivariant control technology, suitable for different customers' requirements.

Guangzhou Ou Qi Electronic Co., Ltd locates in Guangzhou. It has convenient transportation, and is near the largest railway station of Asia_Guangzhou south railway station. It's core products include controllers for heat pump, water source heat pump, residential air conditioner, commercial air conditioner and SPA.

Our company cooperated with the College of Automation Science and Engineering of South China University of Technology. We have a lot of experienced senior engineers in designing refrigerating system and electronic control system. With our excellent designing ability and quality controlled system, our controllers were sold to markets in Europe and north American, and gained very good feedback form the customer.

Guangzhou Ou Qi Electronics Co., Ltd. Has always use advanced technology and equipment, and advanced management methods focus on promotion, relying on advanced hardware and management software to participate in market competition. Establish and implement strict management system and quality guarantee system, passed the TUV, CE, UL, CCC safety certification, ISO9001 international quality system certification and ISO14000 international environment system certification ROSH certification.

"Professional, Integrity, Quality, Efficiency" is our business philosophy, "reliable, energy saving, environmental protection, and win-win" is our unswerving pursuit of the goal.

Guangzhou Ou Qi Electronics Co., Ltd. All colleagues willing to work with new and old customers work together to create a new world of green energy.
