| Prod Model: |
PS-LA13 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Switching Circuits: |
Spdt, Spst-No, Spst-Nc |
| Sampling Medium: |
Air or Combusted Products. |
| Overpressure Rating: |
3.0 Kpa (1/2psi). |
| Type: |
Electronic |
| Application: |
Vehicles |
| Explosion-proof Type: |
Non Explosion-proof |
| Contact: |
Normally Open |
Product Description

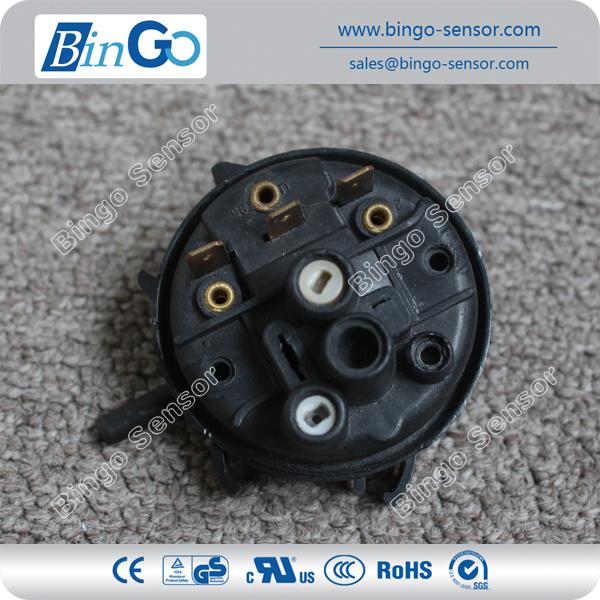

Low Pressure Switch PS-LA15
Introduction
The Gas Pressure Switch PS-LA13 offers the same proven compression spring and precision snap action electrical switch as the other popular and widely used pressure switches.
The Gas Pressure Switch PS-LA13 is designed as compact body, which specially meets the current small size appliances.
The Gas Pressure Switch PS-LA13 is designed specifically to yield narrow pressure differentials (the difference between ON and OFF set points) as well as tohold tight set point tolerances throughout a wide temperature range.
Specification
| Model | PS-LA13 |
| Medium | Air |
| Working pressure range | 2.5~30mbar
25~300mmH2O |
| Diff.pressure | 0.2~1.5mbar |
| Max.pressure | 50mbar |
| Temperature | -10~60ºC |
| Electric rating | 16(4A),125/250VAC |
| Contact | SPDT,SPST-N.O.,SPST-N.C. |
| Connection | 0.D.55mm |
| Size | 70.2x63x37.7mm |
Our service:
1. For each type, we can send you the detailed high-resolution pictures since we have the sample in our hand.
2. For packaging, we have the professional packaging starff, pls. don't worry about the shipping.
About us:
Founded in 2009, our company is committed to supplying a full range of pressure switches / transmitters / sensors, level switches / transmitters/ meters, flow switches / transmitters/ meters.
Our company is located in the "Capital of Electric Products", Liushi, Wenzhou. Besides, we set branch in Shanghai for automation control business in 2013.
Shanghai Office
ADD: Rm. 408, #1 Building, Shanghai Zhihui Science Park, No.11, lane 911, Hulan Road, Baoshan, Shanghai
Zipcode: 201900
Liushi Office
ADD: ROOM A111, JINHAO BUILDING,No.1-8 LIUWENG ROAD,LIUSHI ,YUEQING,WENZHOU
Zipcode: 325604
Yiwu Office
ADD: No. 146-3, Chouzhou North Road, Yiwu, Jinhua
Taizhou Office
ADD: No. 7, Xianqian Road, Yuhuan, Taizhou
More information, you can browse our website: www.bingo-sensor.com
If you need multipoint water level switch for oil tank LS-VS-N-28-ST-2-200, please feel free to contact us!
