Alloy C3 IP68 Bellow Type Load Cells for Weighing Scales
| Price: |
US $ 1-280/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal,Money Gram |

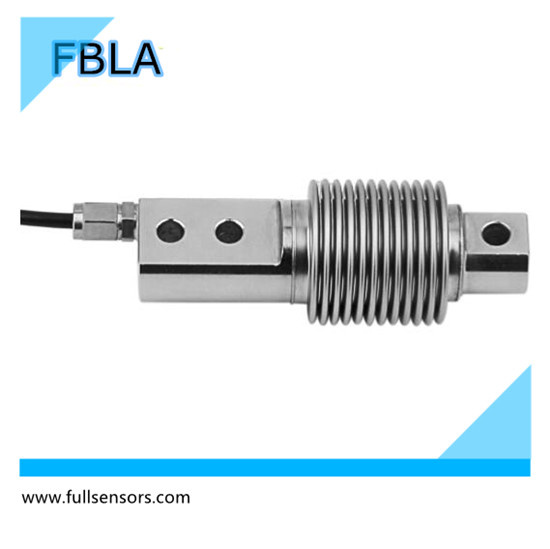

Alloy C3 IP68 Bellow Type Load Cells for Weighing Scales
1. FBLA load cells are available in capacity from 10kg to 1000kg.
2. Alloy steel & stainless steel construction construction with single shear beam type.
3. Sealed welding, waterproof, anti-corrosion and suitable for all kinds of environment.
4. Integral structure and easy installation.
5. Suitable for hopper scale, belt scale and blending system etc electronic weighing devices. 6. Protection class: IP68
7. High accuracy, low profile and nice exterior
| Item | Unit | Parameters |
| Accuracy class | | C2 | C3 |
| Maximum capacity (Emax) | kg | 10, 20, 50, 75, 100, 200, 250, 300, 500, 1000 |
| Minimum LC verification interval (Vmin) | % of Emax | 0.0200 | 0.0100 |
| Sensitivity (Cn) / Zero balance | mV/V | 2.0 ± 0.002/0 ± 0.02 |
| Temp. effect on zero balance (TK0) | % of Cn/10K | ±0.02 | ±0.0170 |
| Temp. effect on sensitivity (TKc) | % of Cn/10K | ±0.02 | ±0.0170 |
| Hysteresis error (dhy) | % of Cn | ±0.0270 | ±0.01800 |
| Non-linearity (dlin) | % of Cn | ±0.0250 | ±0.0167 |
| Creep (dcr) over 30 min | % of Cn | ±0.0233 | ±0.0167 |
| Input (RLC) & Output resistance (R0) | Ω | 400±10 & 352±3 |
| Nominal range of excitation voltage (Bu) | V | 5~12 |
| Insulation resistance (Ris) at 50Vdc | MΩ | ≥5000 |
| Service temp. range (Btu) | ºC | -30----+70 |
| Safe load limit (EL) & Breaking load (ED) | % of Emax | 120 & 200 |
| Protection calss according to EN 60 529 (IEC 529) | | IP68 |
Material: Measuring element
Cable fitting
Cable sheath | | Alloy steel or stainless steel
Stainless steel or nickel-plated brass
PVC |

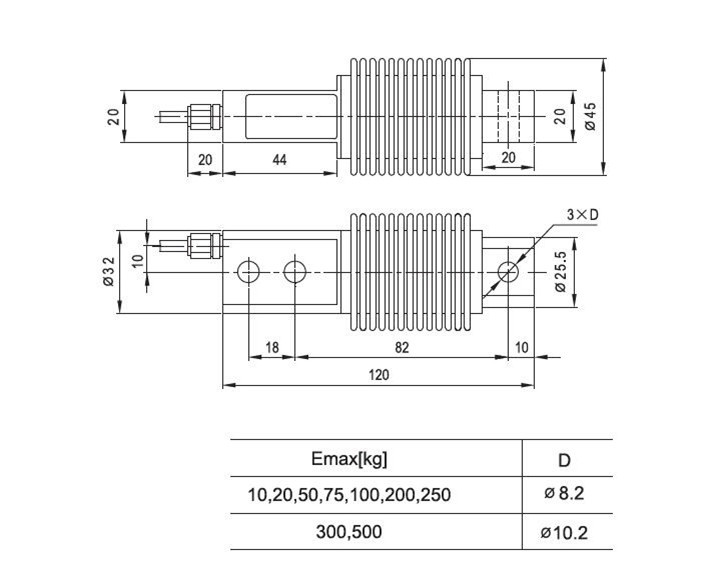

| Maximum capacity (Emax) | kg | 10,20,50,75,100,200,250 | 300,500 | 1000 |
| Deflection at Emax(snom),approx | mm | 0.31 | 0.39 | 0.55 |
| Weight (G), approx | kg | 0.5 | 1.9 |
| Cable Diameter: ø5mm,Length | m | 3 | 5 |
Varieties of products related to load cells as below, that meet all your needs, and save your time, welcome to browse our website to get more surprises.

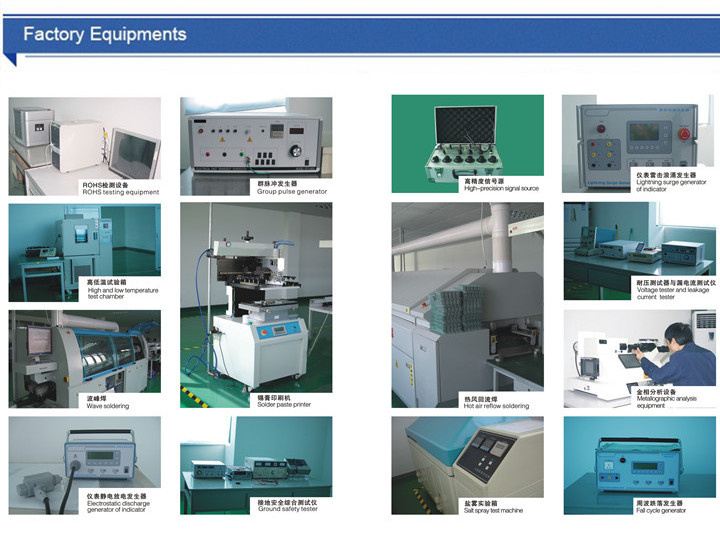

So many kinds of test equipments are used for pre-shipment inspection, in order to make sure all performance of our products reaches the optimal standard.
>>> Independent small inner box is used to protect each product;
>>> Then 6-10 pcs inner boxes place in a carton with bandage;
>>> Several cartons place on a pallet, easy to unload cargo;
>>> Last but not least, all cartons are wrapped with moistureproof plastic wrap,it's strongly necessary for goods shipped by sea.
DHL, UPS, EMS, TNT ect Express and by air or by sea, any shipping method is available, and we will account price and haulage time of each way for your selection before placing order.
CE, RoHs, ISO9001, OIML etc certificates, ensure products with high-class quality for all customers.
Any other questions please do not hesitate to contact us anytime!
| Prod Model: |
FBLA |
| Capacity: |
10, 20, 50, 75, 100, 200, 250, 300, 500, 1000kg |
| Pattern: |
Single Shear Beam Load Cell |
