OIML C3 Analog Digital Weighbridge Load Cells for Truck Scales
1. Alloy steel or stainless material, stable and reliable performance
2. Simple installation and debugging, good interchangeability
3. Self-restoring function, laser welded, IP68
4. Optimized for parallel connection by corner pre-adjustment
5. Meets EMC/ESD requirements according to EN 45 501
6. Measuring capacity: 10t~50t
7. Double spherical surface reset automatically to the core part, select modules to install, it can resist side-force effectively. Reliable sealing, long-term stability
8. Application in the weighing system like motor truck scale etc. | Item | Unit | Parameters |
| Accuracy class | | C2 | C3 |
| Maximum capacity (Emax) | t | 10, 15, 20, 30, 40, 50 |
| Minimum LC verification interval (Vmin) | % of Emax | 0.0200 | 0.0100 |
| Sensitivity (Cn) / Zero balance | mV/V | 2 ± 0.002/0 ± 0.02 |
| Temp. effect on zero balance (TK0) | % of Cn/10K | ±0.02 | ±0.0170 |
| Temp. effect on sensitivity (TKc) | % of Cn/10K | ±0.02 | ±0.0170 |
| Hysteresis error (dhy) | % of Cn | ±0.0270 | ±0.01800 |
| Non-linearity (dlin) | % of Cn | ±0.0250 | ±0.0167 |
| Creep (dcr) over 30 min | % of Cn | ±0.030 | ±0.0167 |
| Input (RLC) & Output resistance (R0) | Ω | 700±20 & 703±3.5 |
| Nominal range of excitation voltage (Bu) | V | 5~12 |
| Insulation resistance (Ris) at 50Vdc | MΩ | >5000 |
| Service temp. range (Btu) | ºC | -30----+70 |
| Safe load limit (EL) & Breaking load (ED) | % of Emax | 150 & 250 |
| Protection calss according to EN 60 529 (IEC 529) | | IP68 |
| Material: Measuring element housing | | Alloy steel or stainless steel +
Stainless steel |
| Maximum capacity (Emax) | t | 10 | 15 | 20 | 30 | 40 | 50 |
| Min. scale verification (emin) according to En45501 | kg | 5
[6#] | 5
[6#] | 5
[6#]
10
[8#] | 10
[8#] | 10
[6#]
20
[8#] | 10
[4#]
20
[10#] |
| Recommended maximum weighing capacity of scale | t | 20 | 30 | 50
80 | 100 | 120
150 | 100
200 |
| Deflection at Emax(snom),approx | mm | 0.55 | 0.55 | 0.65 | 0.75 | 0.85 | 0.85 |
| Weight (G), approx | kg | 2.8 | 3.2 | 3.2 | 3.6 | 3.6 | 3.8 |
| Cable Diameter: ø5mm,Length | m | 10 | 12 | 12 | 14 | 16 | 16 |

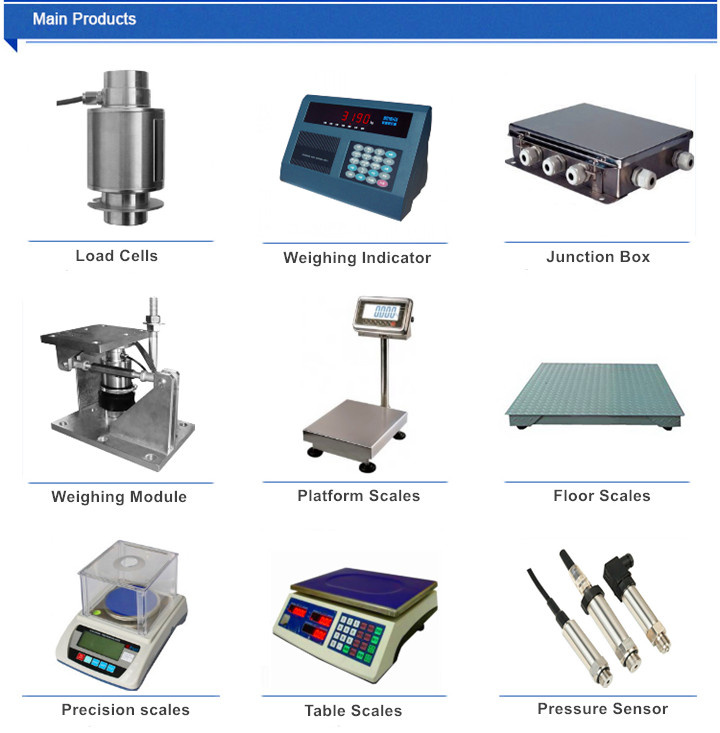

Varieties of products related to load cells as below, that meet all your needs, and save your time, welcome to browse our website to get more surprises.

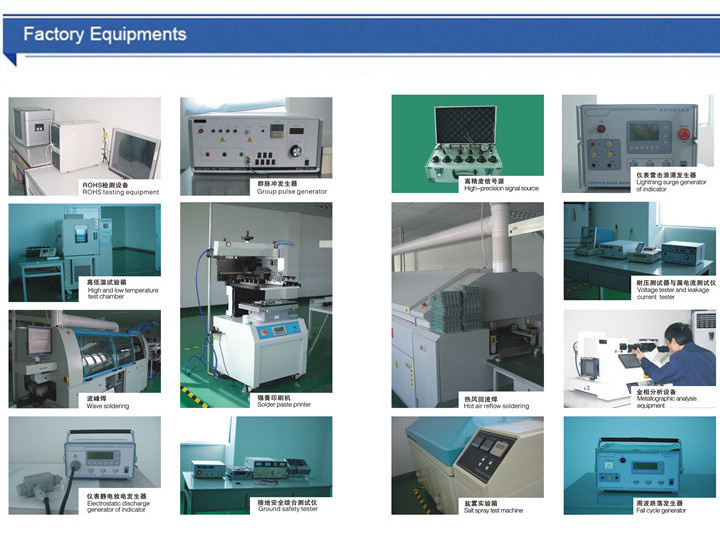

So many kinds of test equipments are used for pre-shipment inspection, in order to make sure all performance of our products reaches the optimal standard.
>>> Independent small inner box is used to protect each product;
>>> Then 6-10 pcs inner boxes place in a carton with bandage;
>>> Several cartons place on a pallet, easy to unload cargo;
>>> Last but not least, all cartons are wrapped with moistureproof plastic wrap,it's strongly necessary for goods shipped by sea.
DHL, UPS, EMS, TNT ect Express and by air or by sea, any shipping method is available, and we will account price and haulage time of each way for your selection before placing order.
CE, RoHs, ISO9001, OIML etc certificates, ensure products with high-class quality for all customers.
Any other questions please do not hesitate to contact us anytime!

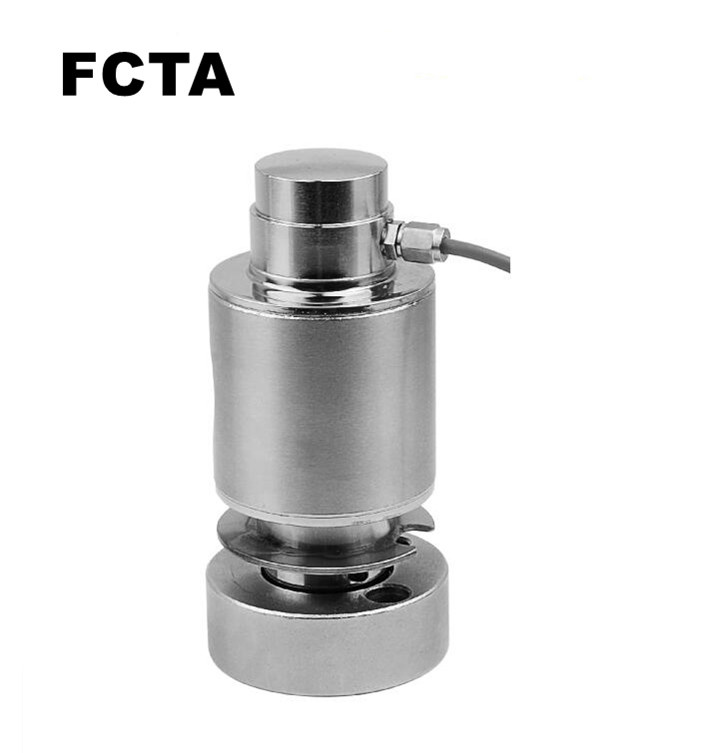

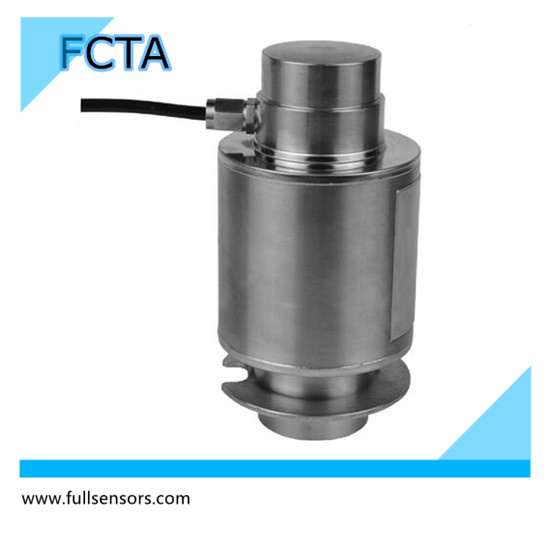

| Prod Model: |
FCTA |
| Capacity: |
10,15,20,30,40,50t |
