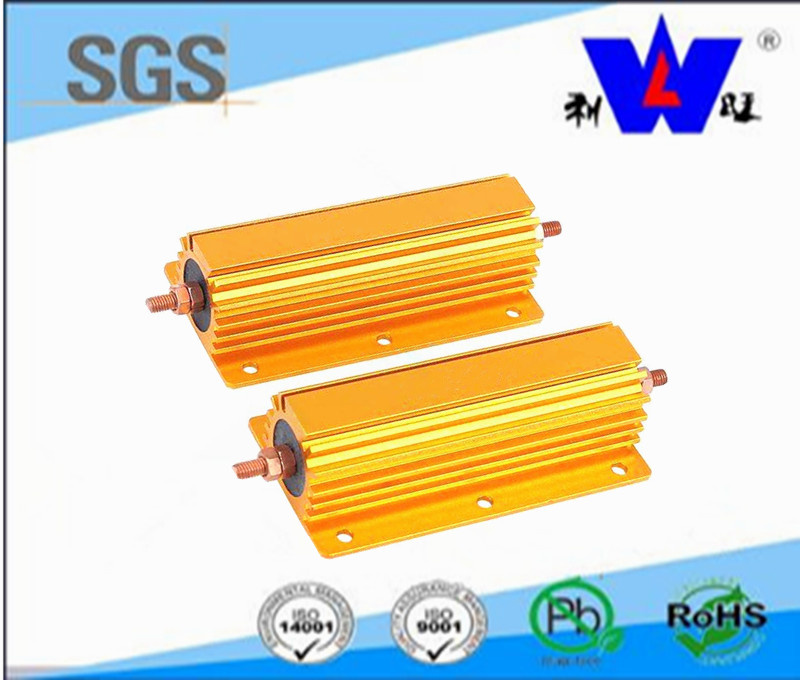

Aluminum Housed Wire-Wound Power Resistor Rx24 High Voltage Resistor

Name: Aluminum Housed Wire-Wound Power Resistor Rx24 High Voltage Resistor
Brand: all-electronics-online.com
SKU: 826763405
Availability: InStock
Rating: 4.6 (132 reviews)

Price:	US $ 0.7-10/Piece
Min Order:	50/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

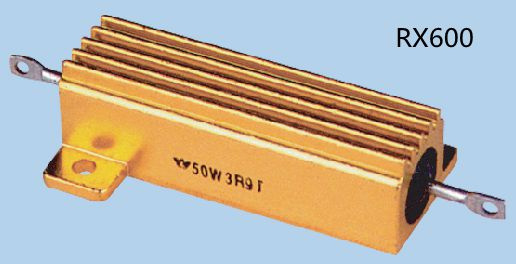

Product description of Rx600 Type Aluminum Shell Underpan Installating Wire Wound Resistor

Specification
Golden aluminum resistor is also called metall aluminum resistor,non-inductive alumiun resistor,LED aluminum resistor etc.,according to different applications and customs.Golden Aluminum Resistor is designed for maximum heat dissipation, mounting solidly to metal chassis surface for maximum heat transfer.
They are outstanding for their high power dissipation with precision tolerances in minimum physical sizes.
Welded construction throughout assures long stable load life.

Technique Specification
1.Rated Power Range: 1W~500W
2.Rated Voltage Range: 0.5KV-5KV
3.Resistance Voltage: AC2.5KV-5KV/1min 50Hz optional.
4.IP class: IP33-IP544
5. Vibration: 1.5g.
6. Rated Temperature Rise: 375°C
7. Temperature Drift: 40~400ppm
8. Resistance optional
9. Advantage: Ambient operating condition
10. Packing: paper box packing
11. Material: 0Cr25AL5/Ni80Cr20

Material

Encapsulant	silicone,cement
Core	ceramic steatite or alumina
Housing	aluminum with hard anodic coating
Element	copper alloys,nickel chromium alloys,iron chromium alloys,iron chromium aluminum alloys

Features

1.	high power rating,small size,ultra precison,high stability,strong constrcution
2.	the colors ( golden yellow,red,silver) are available
3.	standard winding & non-inductive winding are available
4.	conforms to the RoHS standard and the LEAD-FREE non lead standard
5.	for non-standard technical requirements and custom special applications,please contact us to discuss the details

Applications
Widely used in Inverters,Automation equipment,Acoustics,Prescaler,Aging Power testing,Auto accessories,Auto LED industry.

Prod Model:	RX24
Rated Power:	5W-250W
Color:	Golden Yellow
Quality Certification:	ISO9001 Ts16949
Environmental Certification:	ISO14000
Safety Certification:	CQC 03003095~3097
Other Certification:	RoHS
Product:	Golden Aluminum Shell Underpan Installation Wire W
Resistance:	Fixed Resistor
Function For Resistance:	Shunt Resistor
Material:	Metal Film Resistor
Package Type:	Surface Mount
Type:	Fuse Resistor
Brand:	Liwang

Changzhou Southern Electronic Element Factory Co., Ltd. is located in China, with a long history. We enjoy convenient transportation by highway, railway and airway. It takes only one and half hours' Drive to Shanghai or Nanjing.

Our company was founded in 1989, and currently we employ more than 300 people, including 60 professional technicians, covering an area of 10, 000 square meters, with a construction area of more than 5000 square meters. Our main products are wirewound resistors, wirewound resistor fuses, membrane fuse resistors, fixed inductors, filters, ferrite transformers, ring-shaped coils, fuse dedicated energy-saving lamps and UL fuses. Our annual output is 200 million resistors, 200 million transformers, 100 million coils and 200 million fuses, which are mainly used for household appliances, communication equipment, energy-saving lamps, automation control devices (such as inverters), power equipment and facilities. Our products are exported to Europe, the United States and Southeast Asia. GE, OSRAM and PHILIPS are our customers.

Factory' S quality policy: "product quality, service in advance, customer satisfaction".

Environmental policy: "to comply with laws and regulations, pollution prevention, environmental awareness, continuous improvement of the environment"
