| Prod Model: |

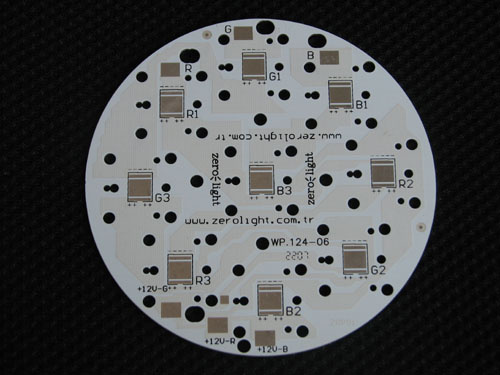

Aluminium PCB-8 |
| Board Thickness: |
0.8mm,1.0mm,1.2mm,1.6mm,2.0mm,2.2mm |
| Thermal Conductivity: |
1.0W/M.K,1.5W/M.K,2.0W/M.K,3.0W/M.K,4.0W/M.K |
| Ccl Brand: |
Jh,Ccaf.etc |
| Sample Date: |
3-5days |
| Structure: |
Single-Sided Rigid PCB |
| Material: |
Polyester Glass Fiber Mat Laminate |
| Dielectric: |
Aluminium |
Product Description
Aluminum base copper-clad laminate have excellent flame retardant, high mechanical strength, dimensional stability etc. Especially it has very good heat sink, electromagnetic shielding and solder float.
It's widely used for the modifier and sparker on fire for motorcycle and mobile, power LED, sound box, power supply module and acoustics shielding system etc.
Note: We specially produces Metal Base Copper-Clad Laminates, and our products have been compiled series with all complete specifications.
The tapy and specification of Aluminum based Laminates CCAF-01, CCAF-04-A, CCAF-05etc. And 0.8mm, 1.0mm, 1.5mm, 2.0mm, etc.
Thickness of the copper: 18um, 35um, 70um, 105um.
Base size: 500mm ×, 600mm (20"×, 24"); 600mm ×, 1060mm (24"×, 42")
CCAF-01 Aluminum-base copper-clad laminate
The test base: CCAF-01 the high heat dissipation Aluminum-base copper-clad laminate
Thickness of the copper: 35um
Thickness of the diclectric: 70um
Thickness of the aluminum-base: 1.5mm
The result of the test:
| Item | Test item | Technology request | Unit | Test result |
|
| 1 | Peel Strength | A | ≥ 1.8 | N/mm | 2 |
|
| After thermal stress (260ordm;C) | ≥ 1.8 | N/mm | 1.8 |
|
| 2 | Blister test AfterThermal stress (260ºC, 2min ) | No delaminating | / | Ok |
|
| 3 | Flammability(A) | FV-O | / | FV-O |
|
| 4 | Thermal resistance | ≤ 2.0 | ordm;C /W | 1 |
|
| 5 | Surface Resistivity | A | ≥ 1 × 10 5 | M Ω | 5 × 10 7 |
|
| Constant humidity treatment | ≥ 1 × 10 5 | M Ω | 2 × 10 6 |
| (90%,3 5 ordm;C,96h) |
| |
| 6 | Volume Resistivity | A | ≥ 1 × 10 6 | M Ω· m | 4 × 10 8 |
|
| Constant humidity treatment | ≥ 1 × 10 6 | M Ω· m | 5 × 10 7 |
| (90%,3 5ordm;C ,96h) |
| |
| 7 | Dielectric Breakdown ( DC ) | ≥ 28.5 | Kv/mm | 31 |
|
| 8 | Dielectric constant (1MHz ) | ≤ 4.4 | / | 4.2 |
| (40 ordm;C,93% , 96h ) |
| |
| 9 | Dielectric dissipation factor (1MHz ) | ≤ 0.03 | / | 0.02 |
| (40 ordm;C, 93% ,96h ) |
| |
Zhejiang Zapon Electronic Technology Co., Ltd is a professional manufacture of Aluminum base PCB and rigid PCB. Which have the factory of Alu base PCB, double side PCB, multi-layer PCB and PCB assembly etc. We have the ability of produce for any medium and mass quantity. The machine of our factory are on work all day and all night. With Zapon as a supplier, you will have the highest quality, quickest delivery. The detail information of our company are in below:
Establishment: 1997
Registered Capital: US$10M
The area of company: 16800m2
The number of staff: 622
Products:
Aluminum base PCB: One side aluminum PCB and double side Alu-PCB
Double-side PCB: FR-4, CEM-3, High Tg, Halogen Free
Multi-layer PCB: 4 to 22 layers(FR-4, High Tg, Rogers)
Certification: UL, ISO9001, ISO/TS16949: 2002, IS014001 and RoHS
THE CAPACITY OF PRODUCTION: 50, 000SQM. /month
All your inquiry of quotation will be replied within 4-hour. Our engineer will be on your service at any time. And your satisfaction is our biggest wish! ! !
Through the efforts of all staffs. Zapon has stood out among PCB company like us and has became a leading company in this industry. We have won accptance and set up a good reputation in domestic and international markets with the competitive price, the perfect atfter-sales services and the wide support of the suppliers. Our main clients in Samsung, Turkey, Italy, England, Portugal, America etc. Our products meet the military and IPC standards and specifications.
We hope we can be your best partner and offer you the best price with good service Do the biggest assistant for you to reduce your cost.
As long as we have the first cooperation, we believe we will get together, we are confident for establishing a long term friendship once our first cooperation made.
