| Prod Model: |
SBH15-30-1600/10 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Material: |
Amorphous Alloy |
| Application: |
Power |
| Phase: |
Three |
| Coil: |
Core-type Transformer |
| Cooling Method: |
Oil-immersed Type Transformer |
| Winding Type: |
Separated Winding Transformer |
| Brand: |
Ville |

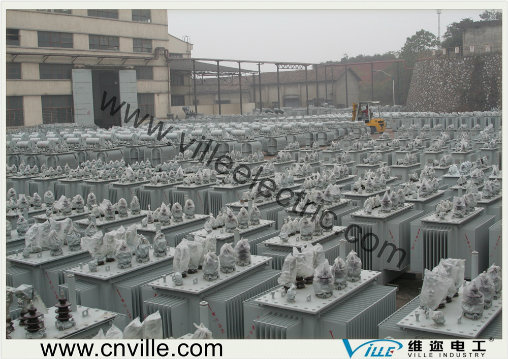

Product Description
morphous alloy transformer
Its core is amorphous alloy. The amorphous alloy is with relatively high magnet induction intensity, low coercive force, low loss, low stimulated magnetic current, and stability with temperature changes. Amorphous alloy transformer, comparing to the silicon steel S9 series transformers, the empty loading loss decreases 78-80%, empty loading current decreases 50%. Its energy saving effect is very visible, it is a energy saving, environmental protection and high efficient transformer.
Main functions and characters:
Core is with three phases, four frames, and 5 columns.
Use Dyn11 to connect other parts as vector , reduce the influences by network wave, improve the power supply.
Oil box is sealed, free from maintenance. Box is sealed, free from maintenance.
Empty loading loss is only 20% of S9 type transformers, empty loading current is only 50% of S9 transformer.
1. Product standards
>>GB1094.1 ~ 2-1996.
>>GB1094.3, 5-1985.
>>GB/T6451-1995.
>>IEC76.
2. Low loss
- Optimization of electromagnetic calculations, using combined technology of electrical shielding and
magnetic circuit, effectively controlled leakage, so as to reduce the load loss and to avoid partial
overheating.
- Use high quality cold-rolled lattice orientation high permeability silicon steel, to reduce the load loss,
no-load current.
- Core all-helical stacking with STEP joints, and advanced stacking process, reduced the load loss, load
current and electromagnetic noise.
3. Low partial discharge
To ensure the safe and steady operation of the transformer under continuous rated voltage, our Electric Power Research Institute conducted a lot of research to develop a more reasonable insulation structure, plus the strict technology specifications and technical staff experience, ensured the low partial discharge of our products.
4. High strength
- Adoption of six-side method positioning for the body, meets the transportation requirements of, horizontal acceleration not more than 0.3G, vertical direction not greater than 0.15g.
- Upper and Lower Clamps and the formation of tight fixed side beam frame.
- The tank can withstand the vacuum test and required positive pressure test.
5. Low Noise
- Use of high-quality core silicon steel;
- Core STEP stepping joints;
- Reduction of the flux density, despite of the increase of cost;
- Use low-noise fan as the air cooling equipment;
- Increase the shock absorbing measures;
- Well interior-protection, to avoid direct rigid contact of the body and tank;
6. Maintenance-free
Our company adopts the domestic leading technology, use fully enclosed structure for the transformer tank, ensuring product life of 30 years, and maintenance-free operation.
****For detailed technical specifications, please contact us.
S12-50-1600/10 Amorphous Alloy Transformer |
Ratedpower
KVA | Valtage | Connction | W | No-Load Current (%) | Impedence Voltage(%) | Weight(kg) | Outline Dimension (mm) | Guage (mm) | H.V
kV | L.V
kV | No-LoadLoss | LoadLoss | Oil weight | Total weight | L | B | H | | 50 | 6
6.3
10±2
×2.5%
or
±5% | 0.4 | Dyn11 | 45 | 870 | 4 | 1 | 175 | 620 | 1215 | 830 | 1035 | 550×660 | | 80 | 65 | 1250 | 0.9 | 210 | 800 | 1310 | 840 | 1125 | 550×660 | | 100 | 75 | 1500 | .9 | 210 | 880 | 1320 | 885 | 1060 | 550×660 | | 125 | 85 | 1800 | 0.8 | 230 | 920 | 1360 | 890 | 1100 | 550×660 | | 160 | 100 | 2200 | .8 | 255 | 1095 | 1410 | 900 | 1140 | 550×660 | | 200 | 120 | 2600 | 0.7 | 295 | 1240 | 1465 | 905 | 1200 | 550×660 | | 25 | 140 | 3050 | 0.7 | 320 | 1450 | 1540 | 905 | 1240 | 550×660 | | 315 | 170 | 3650 | 0.7 | 350 | 1680 | 1580 | 910 | 1300 | 660×660 | | 400 | 200 | 4300 | 0.6 | 430 | 2130 | 1750 | 910 | 1360 | 660×660 | | 500 | 240 | 5100 | .6 | 480 | 2330 | 1820 | 980 | 1380 | 660×660 | | 630 | 300 | 6200 | 4.5 | .5 | 540 | 2800 | 1900 | 1070 | 1390 | 820×820 | | 800 | 350 | 7500 | 0.5 | 590 | 3130 | 2020 | 1170 | 1400 | 820×820 | | 1000 | 420 | 10300 | 0.4 | 685 | 3555 | 2110 | 1250 | 1420 | 820×820 | | 1250 | 490 | 12000 | 0.4 | 790 | 4230 | 2200 | 1320 | 1460 | 820×820 | | 1600 | 600 | 14500 | 0.4 | 870 | 4910 | 2260 | 1440 | 1500 | 820×820 |
|
Ningbo Ville Electric Co., Ltd. One of wholly owned subsidiaries of VILLE INDUSTRY, It was invested by VILLE INDUSTRY, It is a well-know listed company in China specialized in R&D of electric power technology, equipment manufacturing and engineering services specialized in research, development, production of transformer and high voltage & low voltage electrical power equipment
Our Transmission and distribution companies can provide with whole solution for transformer substation and switch substation trunkey project!
The rated voltage from 11kV up to 132kV.
It locates in Hi-technical enterprise R & D center zone of Ningbo, Zhejiang province, which is one of the well-know coastal city in China. Its professional engaged in power substation, power plant project and electrical power complete equipments.
Working field: Manufacturing, engineering, designing, executing and commissioning for HV and LV electrical products. Turnkey substation from 11KV to 132KV.
Our transformer factory main working is visiting end user's site do measure and reseach before designe, and providing economic transformer solution for customer. Engineering, manufacturing, executing, commissioning and repairing for different kind of transformer (04kv -500kv ).

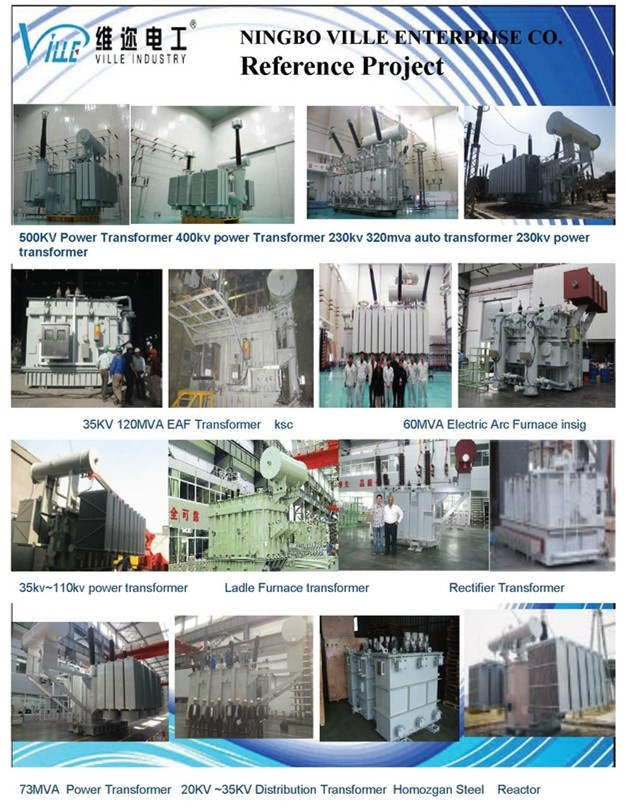

The products are mainly used in Steel plant; Power - Fossil fuel plant, Nuclear power plant, Railway, Subway and Airport. Wind power generation; Hydroelectric plant engineering; International power generation plant; Power substation transmission and distribution; Residential housing estate power distribution system and so on.
Transformer factory Product includes:
Three phase double (three)- winding power transformer, generator power transformer, auto power transformer, rectifier transformer for each industry, furnace transformer, movable transformer, traction transformer and reactor, power plant auxiliary and standby transformers, transformers for substations of backbone and distribution networks. Transformer for metallurgical companies etc.
In order to achieve the enterprise's strategic target---being stronger, larger, and superior, we continue to expand throughout the world's markets for power transmission and distribution area. And we also actively attach our team to competition, walking forward to the mission of "First-class worldwide transformer supplier"
Supply the guide drawings and installation manuals information directions on the method of handling, storage, mounting and erection of transformers.
Power equipment application:
Power-fossil fuel plant, Steel plant, Infrastructure- railway, international generation, substation, hydropower station, wind power substation, transmission and distribution.
We has excellent experience and good capacity in complete projects equipments in Generation, Substation, Transmission and Distribution from 400V-330kv, especially in Power plant, Substation construction and Transmission line, including of design, complete equipment, installation, Commissioningand after-sales service, and also design the complete Electrical Solutions according to customer's demand. We are mainly services to International State Power Board, Power Construction Contractor, Power Project Contractor, Factories and the Electric Power Project in the world.
In order to achieve the enterprise's strategic target---being stronger, larger, and superior, we continue to expand throughout the world's markets for power transmission and distribution area. And we also actively attach our team to competition, walking forward to the mission of "First-class worldwide electrical equipment supplier"
